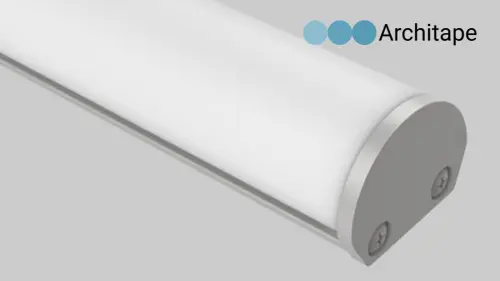

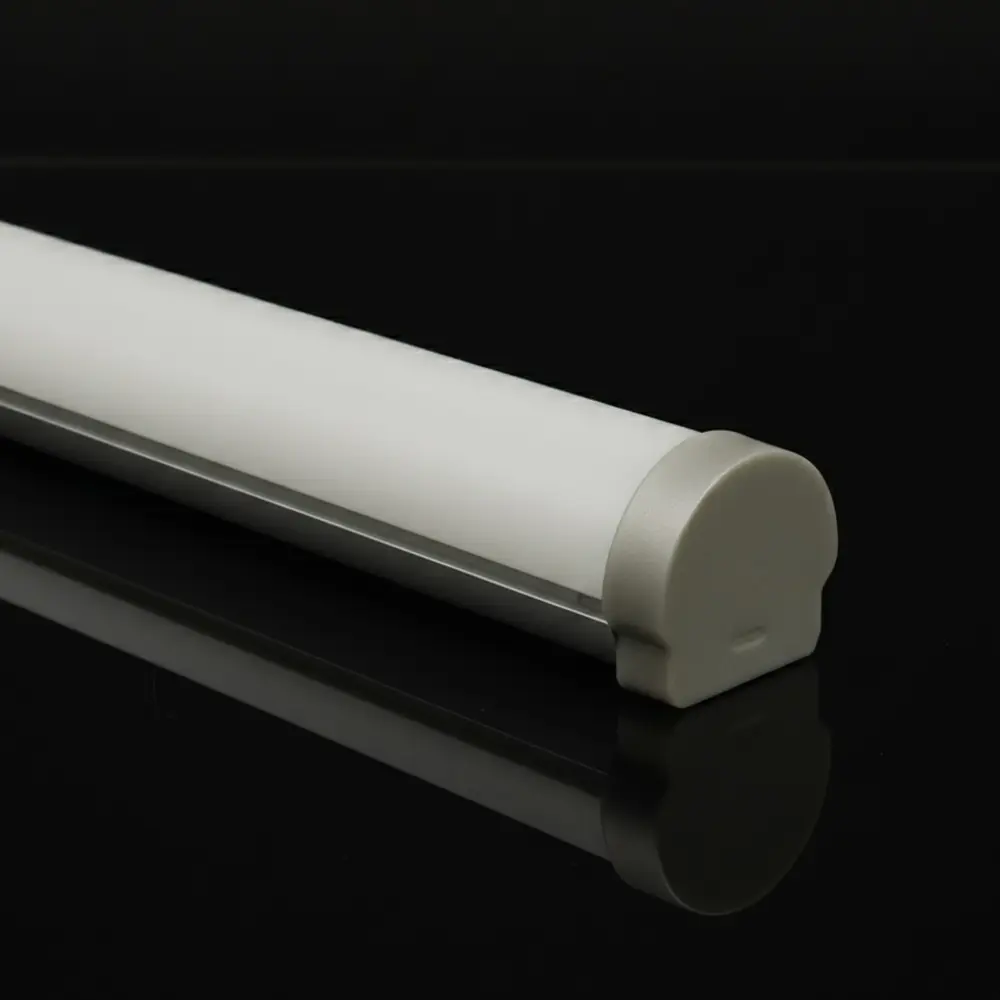

Aluminium Profile AP-03
A surface mount, linear LED luminaire designed for long-term indoor professional lighting applications. With opal and diffuse cover options, it can create a continuous light effect without any dark spots for direct view lighting as well as efficient diffuse light for indirect applications.
Specifications
• Width: 18 mm
• Height: 9 mm
• Length: up to 2 m
• Light output ratio:
- White: 75% transmission
- Diffuse: 92% transmission
- Clear: 92% transmission
- 15°: 82% transmission
- 30°: 85% transmission
- 60°: 89% transmission
• Tc temperature: up to 75 °C
• Operating temperature: -25 °C to +50 °C
• LED tape: up to 35 W/m
Mounting options
Surface horizontal mounting
Surface vertical mounting
Wall mounting
Documents
Internal Reference:
Architape 0047
