Architape Indoor Flexible RGB LED Tape
LED.RGB.24V.IP20Professional-grade RGB LED tape engineered for dynamic colour-changing installations. Featuring stable colour mixing, premium components, and exceptional build quality for reliable indoor applications.
Key Features
- Stable colour mixing for consistent performance
- Dimmable with compatible controllers
- 24V DC voltage input for safer operation
- Reverse voltage protection built-in
- 3 Step MacAdam or Single Bin LEDs
- Stabilized current design for longevity
- Thick and durable copper PCB
Perfect For These Applications
Discover the versatility of RGB LED tape for creating stunning colour-changing lighting installations
Entertainment Venues
Create dynamic lighting scenes in bars, clubs, and entertainment spaces. Perfect for mood lighting and synchronized effects.
Commercial Displays
Highlight retail displays and architectural features with vibrant, attention-grabbing colour effects.
Residential Ambience
Transform living spaces with customizable colour scenes. Ideal for home theaters, gaming rooms, and accent lighting.
Architectural Accents
Illuminate building facades, columns, and architectural details with programmable colour-changing effects.
Event Lighting
Perfect for temporary installations, events, and exhibitions requiring flexible, impactful lighting solutions.
Hospitality Spaces
Enhance guest experiences in hotels and restaurants with customizable ambience and brand-matched colour schemes.
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 24V DC |
| LED Type | RGB SMD |
| IP Rating | IP20 (Indoor use only) |
| Colour Options | 16.7 Million colours |
| Operating Temperature | -25°C to +50°C |
| PCB Type | Thick copper base for durability |
| Dimmability | Yes (with compatible controller) |
| LED Binning | 3 Step MacAdam or Single Bin |
Configuration Options
| Option | Available Choices |
|---|---|
| LED Density | 30 LEDs/m, 60 LEDs/m, 120 LEDs/m |
| Power per Metre | 7.2W/m, 14.4W/m, 28.8W/m |
| Reel Length | 5m standard (custom lengths available) |
| Cut Points | Every 50mm (30 LEDs/m), 25mm (60 LEDs/m), 12.5mm (120 LEDs/m) |
| Width | 10mm standard, 12mm high-density |
| Mounting | 3M adhesive backing (standard) |
Installation Guide
| Step | Instructions |
|---|---|
| 1. Surface Preparation | Clean and dry the mounting surface thoroughly. Remove dust, grease, and debris for optimal adhesion. |
| 2. Planning | Measure and plan your layout. Mark cut points and ensure they align with designated cutting marks on the tape. |
| 3. Cutting | Cut only at designated points marked on the tape. Use sharp scissors for clean cuts. |
| 4. Wiring | Connect to RGB controller respecting polarity: R (Red), G (Green), B (Blue), and V+ (24V positive). |
| 5. Testing | Test all connections before final installation. Verify all colours function correctly. |
| 6. Mounting | Peel backing and apply to prepared surface. Press firmly along entire length for 10-15 seconds. |
| 7. Power Up | Connect to 24V DC power supply through RGB controller. Total power should not exceed supply capacity. |
Compatible Products
RGB Controllers
| Product | Description | Max Load |
|---|---|---|
| DMX RGB Controller | Professional DMX512 control for complex installations | 15A per channel |
| WiFi RGB Controller | Smart home integration with app control | 10A per channel |
| RF Remote RGB Controller | Wireless remote control with multiple zones | 8A per channel |
| Touch Panel RGB Controller | Wall-mounted touch interface | 6A per channel |
Power Supplies
| Model | Output | Suitable For |
|---|---|---|
| PSU-24V-60W | 24V DC, 60W (2.5A) | Up to 4m of 14.4W/m tape |
| PSU-24V-100W | 24V DC, 100W (4.2A) | Up to 7m of 14.4W/m tape |
| PSU-24V-150W | 24V DC, 150W (6.25A) | Up to 10m of 14.4W/m tape |
| PSU-24V-240W | 24V DC, 240W (10A) | Up to 16m of 14.4W/m tape |

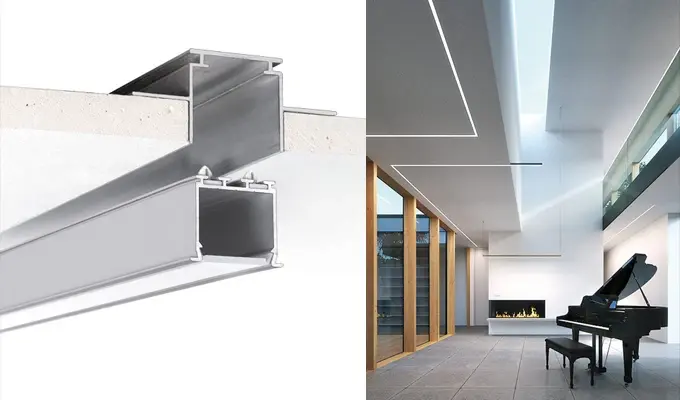

Compatible Profiles
| Profile Code | Dimensions | Recommended Use |
|---|---|---|
| PRG.A002M.EXT.AGY | 16mm x 6mm | Cove lighting, under-cabinet |
| PRG.A003M.EXT.AGY | 20mm x 8mm | Shelf lighting, displays |
| PRG.A004M.EXT.AGY | 25mm x 10mm | Feature lighting, architectural |
Downloads
| Document | Link |
|---|---|
| Architape Indoor Flexible RGB LED Tape - Datasheet | ↓ Download |
| Installation Guide - RGB LED Tape | ↓ Download |
