Architectural Aluminium Profile

Architape AP02 Profile

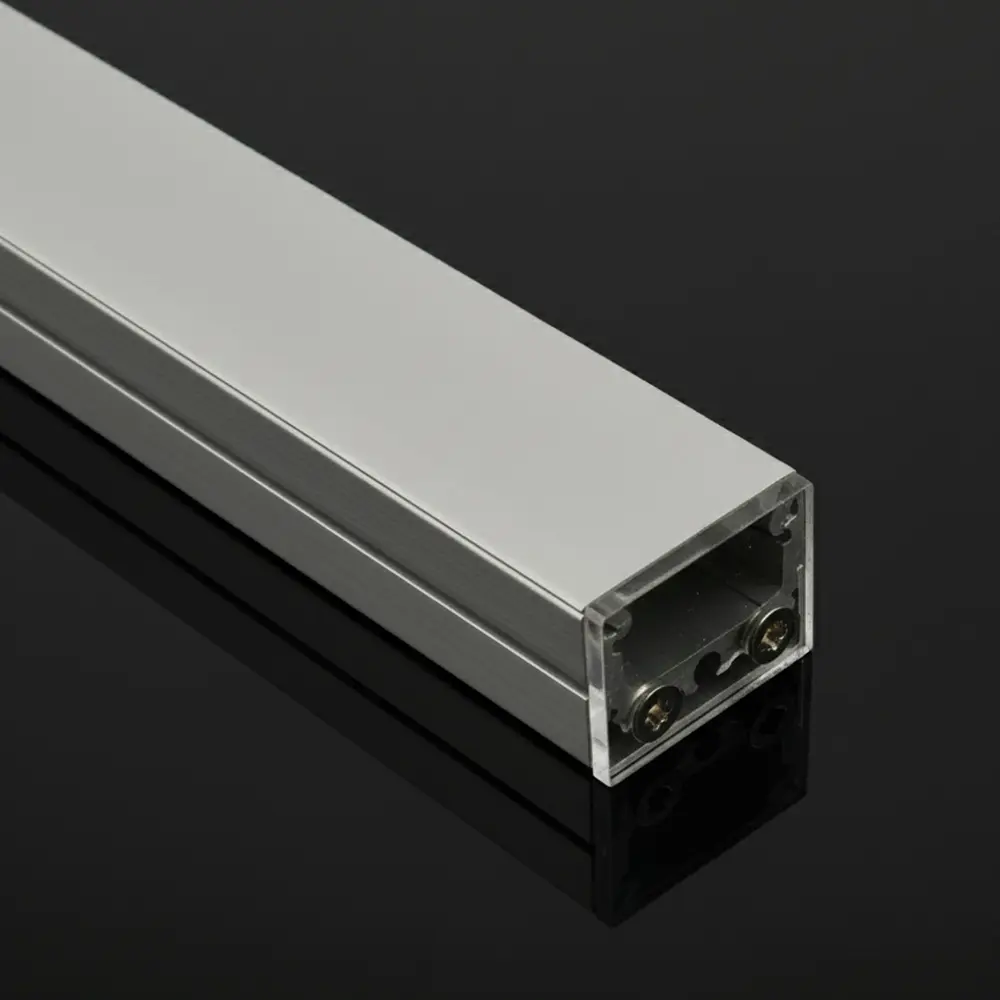

AP02 Profile is an architectural-grade extruded aluminium profile engineered for seamless integration into joinery, coves, surface architectural accents, and ceiling details. Manufactured from high-purity 6063-T5 anodised aluminium, it delivers superior passive thermal heatsinking while ensuring dot-free light distribution with satin opal diffusers.

Specification Contact Sales
Architape AP02 Profile
Specs Tapes Contact
Width
17.5 mm

Compact extruded aluminium cross-section.

Height
15 mm / 20 mm

Low-profile depth for joinery, coves and ceilings.

Stock Length
2 m

Cut to length on site or to order.

Cover Options
4 covers

Snap-in optical polymer diffusers.

Profile Specification

Architape AP02 Profile Specification & Dimensions

Key specification, cross-section and finish options for the AP02 profile. Contact our team for technical drawings, samples and pricing.

Architape AP02 Profile
Architape AP02 Profile product
Material6063-T5 anodised aluminium
Width17.5 mm
Height15 mm / 20 mm
Stock length2 m
CoversHigh square diffuse 70% Transmission, High square opal 60% Transmission, Low square diffuse 70% Transmission, Low square opal 60% Transmission

Key Features

  • 6063-T5 architectural aluminium extrusion
  • Snap-in optical polymer diffusers
  • Concealed mounting clips and screw-fixed end caps
  • Linear joiners for continuous straight runs
Recommended LED Tape

Compatible LED Tapes for the AP02

Every Architape indoor LED tape rated for the AP02: within its maximum load, the right voltage and a width that fits the channel. Filter by tape, voltage or colour temperature, then open a part code for its specification and datasheet.

Real-World Specification

Featured Installations

Discover how Architape profiles are engineered into landmark architectural projects.

All Case Studies
Canal Turn, Island Quarter Nottingham
Nottingham, UK · Studio Fractal

Canal Turn, Island Quarter

Precision architectural illumination across signature dining and public concourses.

Read Case Study
Royal Opera House London
London, UK · Stanton Williams

Royal Opera House

Discrete architectural accentuation integrated into heritage joinery and public concourses.

Read Case Study
Porsche Centre Mayfair London
Mayfair, London · Studio Fractal

Porsche Centre Mayfair

High-resolution precision lighting highlighting luxury automotive design lines.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What covers are available for AP02?

AP02 is available with snap-in high square diffuse 70% transmission, high square opal 60% transmission, low square diffuse 70% transmission and low square opal 60% transmission covers.

How is the profile installed and joined?

Supplied with concealed stainless steel mounting clips, end caps with cable pass-throughs, and mechanical linear joiners for continuous straight runs.

What are the dimensions of AP02?

AP02 measures 17.5 mm wide by 15 mm / 20 mm high.

What length is AP02 supplied in?

AP02 is supplied in 2 m stock lengths and can be cut to size.

What is AP02 made from?

AP02 is extruded from high-purity 6063-T5 anodised aluminium.

Are technical drawings available for AP02?

Yes. The key dimensions are shown above, and full dimensioned drawings of the AP02 profile are available from our sales team.

Can I get a sample of AP02?

Yes. Contact our sales team to request a sample of AP02 with your chosen cover and finish.
