Corner Mounted Indoor Profile

Architape A032 Profile

A032 is a corner-mounted fixture. Ideal for under-cabinet, task and accent lighting.

Specification Contact Sales
Architape A032 Profile
Specs Tapes Contact
Cross-Section
32.4 x 46 mm

Compact extruded aluminium housing.

Mounting
Corner

Corner horizontal mounting.

Cover Options
1 cover

Opal round homogeneous.

Finishes
2 finishes

Black and Anodised grey.

Profile Specification

Architape A032 Profile Specification & Dimensions

Key specification, cross-section and finish options for the A032 profile. Contact our team for technical drawings, samples and pricing.

Architape A032 Profile

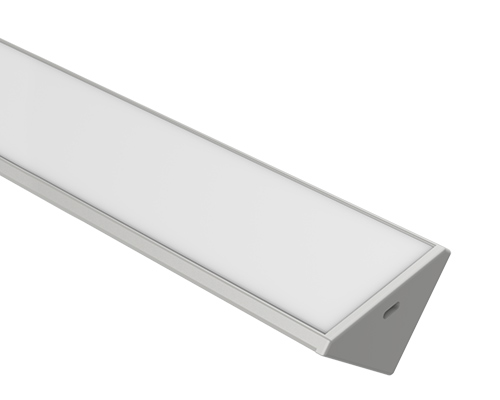

Architape A032 Profile product

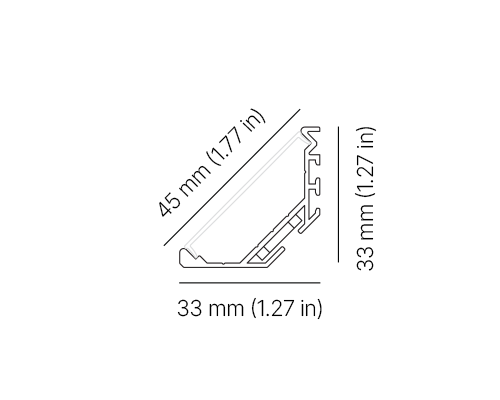

Architape A032 Profile dimensions
Architape A032 Profile application
MountingCorner horizontal mounting
Cross-section32.4 mm / 46 mm
CoversOpal round homogeneous
Housing finishesBlack, Anodised grey

Key Features

  • Opal cover
  • Available in any length in 125 mm steps (up to 3m)
  • 5 types of segments with varying endcap and connector combinations
  • Corner-mounted installation
  • Black and anodised grey housing
Recommended LED Tape

Compatible LED Tapes for the A032

Every Architape indoor LED tape rated for the A032: within its maximum load, the right voltage and a width that fits the channel. Filter by tape, voltage or colour temperature, then open a part code for its specification and datasheet.

Real-World Specification

Featured Installations

Discover how Architape profiles are engineered into landmark architectural projects.

All Case Studies
Canal Turn, Island Quarter Nottingham
Nottingham, UK · Studio Fractal

Canal Turn, Island Quarter

Precision architectural illumination across signature dining and public concourses.

Read Case Study
Royal Opera House London
London, UK · Stanton Williams

Royal Opera House

Discrete architectural accentuation integrated into heritage joinery and public concourses.

Read Case Study
Porsche Centre Mayfair London
Mayfair, London · Studio Fractal

Porsche Centre Mayfair

High-resolution precision lighting highlighting luxury automotive design lines.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What covers are available for A032?

A032 is available with opal round homogeneous cover. The opal cover gives a smooth, dot-free line of light.

How is A032 mounted?

A032 supports corner horizontal mounting.

What are the dimensions of A032?

The key cross-section dimensions of A032 are 32.4 mm and 46 mm. Full dimensions are shown on the technical drawing above.

Which housing finishes are available?

A032 is available in black and anodised grey.

Which end caps and segments are available for A032?

5 types of segments with varying endcap and connector combinations are available, so runs can be finished to suit the installation.

Are technical drawings available for A032?

Yes. The key dimensions are shown above, and full dimensioned drawings of the A032 profile are available from our sales team.

Can I get a sample of A032?

Yes. Contact our sales team to request a sample of A032 with your chosen cover and finish.
