Recessed Indoor Profile

Architape A030 Profile

A030 is a recess-mount fixture for slim & dotless decorative lighting.

Specification Contact Sales
Architape A030 Profile
Specs Tapes Contact
Cross-Section
56 x 20.4 mm

Compact extruded aluminium housing.

Mounting
Recessed

Recessed horizontal mounting and Recessed vertical mounting.

Cover Options
3 covers

Opal, Clear and Opal homogeneous.

Finishes
1 finish

Anodised grey.

Profile Specification

Architape A030 Profile Specification & Dimensions

Key specification, cross-section and finish options for the A030 profile. Contact our team for technical drawings, samples and pricing.

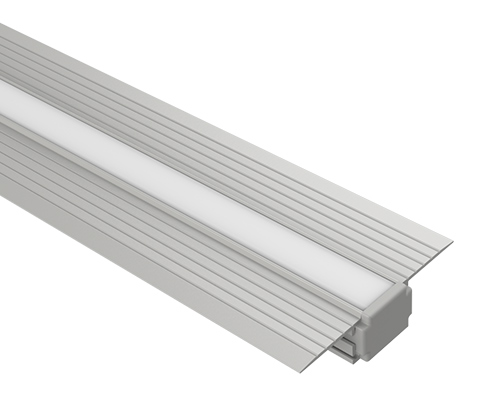

Architape A030 Profile
Architape A030 Profile product
Architape A030 Profile dimensions

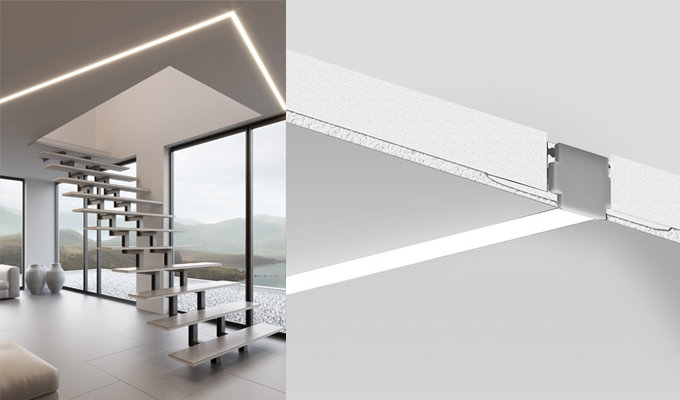

Architape A030 Profile application
MountingRecessed horizontal mounting / Recessed vertical mounting
Cross-section56 mm / 20.4 mm / 13.5 mm
CoversOpal, Clear, Opal homogeneous
Housing finishesAnodised grey

Key Features

  • Opal, Clear and Opal homogeneous cover options
  • Recessed installation
  • Anodised grey housing
Recommended LED Tape

Compatible LED Tapes for the A030

Every Architape indoor LED tape rated for the A030: within its maximum load, the right voltage and a width that fits the channel. Filter by tape, voltage or colour temperature, then open a part code for its specification and datasheet.

Real-World Specification

Featured Installations

Discover how Architape profiles are engineered into landmark architectural projects.

All Case Studies
Canal Turn, Island Quarter Nottingham
Nottingham, UK · Studio Fractal

Canal Turn, Island Quarter

Precision architectural illumination across signature dining and public concourses.

Read Case Study
Royal Opera House London
London, UK · Stanton Williams

Royal Opera House

Discrete architectural accentuation integrated into heritage joinery and public concourses.

Read Case Study
Porsche Centre Mayfair London
Mayfair, London · Studio Fractal

Porsche Centre Mayfair

High-resolution precision lighting highlighting luxury automotive design lines.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What covers are available for A030?

A030 is available with opal, clear and opal homogeneous covers. Opal covers give a smooth, dot-free line; clear covers give the highest light output.

How is A030 mounted?

A030 supports recessed horizontal mounting and recessed vertical mounting. Recessed versions can be fitted into drywall of any thickness for a clean, trimless line.

What are the dimensions of A030?

The key cross-section dimensions of A030 are 56 mm, 20.4 mm and 13.5 mm. Full dimensions are shown on the technical drawing above.

Which housing finishes are available?

A030 is available in anodised grey.

Are technical drawings available for A030?

Yes. The key dimensions are shown above, and full dimensioned drawings of the A030 profile are available from our sales team.

Can I get a sample of A030?

Yes. Contact our sales team to request a sample of A030 with your chosen cover and finish.
