Pendant Indoor Profile

Architape A025 Profile

A025 is a round-shape fixture for suspended linear lights. A perfect pick for decorative, task and accent lighting applications. Fixtures can be linked up to 14m (46′).

Specification Contact Sales
Architape A025 Profile
Specs Tapes Contact
Cross-Section
18.5 x 15.6 mm

Compact extruded aluminium housing.

Mounting
Pendant

Surface horizontal mounting and Surface vertical mounting.

Linked Runs
Up to 14m

Supplied to length in 125 mm steps.

Cover Options
3 covers

Opal, Clear and Opal homogeneous.

Profile Specification

Architape A025 Profile Specification & Dimensions

Key specification, cross-section and finish options for the A025 profile. Contact our team for technical drawings, samples and pricing.

Architape A025 Profile

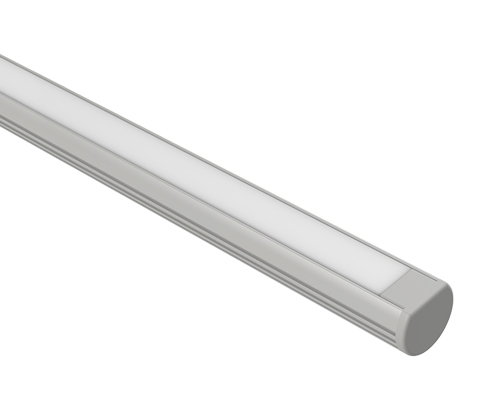

Architape A025 Profile product
Architape A025 Profile dimensions

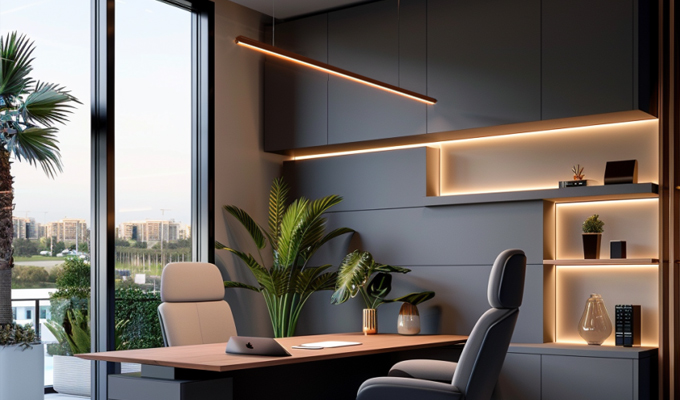

Architape A025 Profile application
MountingSurface horizontal mounting / Surface vertical mounting
Cross-section18.5 mm / 15.6 mm
CoversOpal, Clear, Opal homogeneous
Housing finishesAnodised grey
Linked runsUp to 14m

Key Features

  • Clear and Opal cover
  • Available in any length in 125 mm steps (up to 3m)
  • 5 types of segments with varying endcap and connector combinations
  • Pendant installation
  • Anodised grey housing
Recommended LED Tape

Compatible LED Tapes for the A025

Every Architape indoor LED tape rated for the A025: within its maximum load, the right voltage and a width that fits the channel. Filter by tape, voltage or colour temperature, then open a part code for its specification and datasheet.

Real-World Specification

Featured Installations

Discover how Architape profiles are engineered into landmark architectural projects.

All Case Studies
Canal Turn, Island Quarter Nottingham
Nottingham, UK · Studio Fractal

Canal Turn, Island Quarter

Precision architectural illumination across signature dining and public concourses.

Read Case Study
Royal Opera House London
London, UK · Stanton Williams

Royal Opera House

Discrete architectural accentuation integrated into heritage joinery and public concourses.

Read Case Study
Porsche Centre Mayfair London
Mayfair, London · Studio Fractal

Porsche Centre Mayfair

High-resolution precision lighting highlighting luxury automotive design lines.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What covers are available for A025?

A025 is available with opal, clear and opal homogeneous covers. Opal covers give a smooth, dot-free line; clear covers give the highest light output.

How is A025 mounted?

A025 supports surface horizontal mounting and surface vertical mounting.

What are the dimensions of A025?

The key cross-section dimensions of A025 are 18.5 mm and 15.6 mm. Full dimensions are shown on the technical drawing above.

How long can a run of A025 be?

Fixtures can be linked up to 14m long. Lengths are available in 125 mm steps.

Which housing finishes are available?

A025 is available in anodised grey.

Which end caps and segments are available for A025?

5 types of segments with varying endcap and connector combinations are available, so runs can be finished to suit the installation.

Are technical drawings available for A025?

Yes. The key dimensions are shown above, and full dimensioned drawings of the A025 profile are available from our sales team.

Can I get a sample of A025?

Yes. Contact our sales team to request a sample of A025 with your chosen cover and finish.
