Surface Mounted Indoor Profile

Architape A017M Profile

A017M is a surface-mounted fixture suitable for direct lighting applications where continuous light effect is a must.

Specification Contact Sales
Architape A017M Profile
Specs Tapes Contact
Cross-Section
26 x 25 mm

Compact extruded aluminium housing.

Mounting
Surface

Surface horizontal mounting and Surface vertical mounting.

Cover Options
1 cover

Opal.

Finishes
2 finishes

Black and Anodised grey.

Profile Specification

Architape A017M Profile Specification & Dimensions

Key specification, cross-section and finish options for the A017M profile. Contact our team for technical drawings, samples and pricing.

Architape A017M Profile
Architape A017M Profile product
Architape A017M Profile dimensions

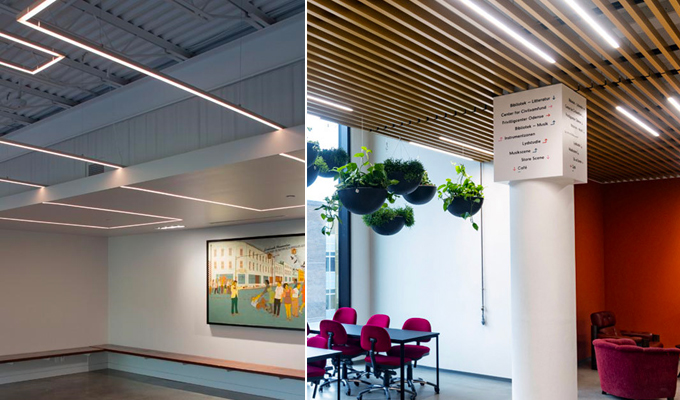

Architape A017M Profile application
MountingSurface horizontal mounting / Surface vertical mounting
Cross-section26 mm / 25 mm
CoversOpal
Housing finishesBlack, Anodised grey

Key Features

  • Opal cover
  • Available in any length in 125 mm steps (up to 3m)
  • 4 types of segments with varying endcap and connector combinations
  • Surface-mounted installation
  • Black and anodised grey housing
Recommended LED Tape

Compatible LED Tapes for the A017M

Every Architape indoor LED tape rated for the A017M: within its maximum load, the right voltage and a width that fits the channel. Filter by tape, voltage or colour temperature, then open a part code for its specification and datasheet.

Real-World Specification

Featured Installations

Discover how Architape profiles are engineered into landmark architectural projects.

All Case Studies
Canal Turn, Island Quarter Nottingham
Nottingham, UK · Studio Fractal

Canal Turn, Island Quarter

Precision architectural illumination across signature dining and public concourses.

Read Case Study
Royal Opera House London
London, UK · Stanton Williams

Royal Opera House

Discrete architectural accentuation integrated into heritage joinery and public concourses.

Read Case Study
Porsche Centre Mayfair London
Mayfair, London · Studio Fractal

Porsche Centre Mayfair

High-resolution precision lighting highlighting luxury automotive design lines.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What covers are available for A017M?

A017M is available with opal cover. The opal cover gives a smooth, dot-free line of light.

How is A017M mounted?

A017M supports surface horizontal mounting and surface vertical mounting.

What are the dimensions of A017M?

The key cross-section dimensions of A017M are 26 mm and 25 mm. Full dimensions are shown on the technical drawing above.

Which housing finishes are available?

A017M is available in black and anodised grey.

Which end caps and segments are available for A017M?

4 types of segments with varying endcap and connector combinations are available, so runs can be finished to suit the installation.

Are technical drawings available for A017M?

Yes. The key dimensions are shown above, and full dimensioned drawings of the A017M profile are available from our sales team.

Can I get a sample of A017M?

Yes. Contact our sales team to request a sample of A017M with your chosen cover and finish.
