Architape A011 Profile
Compact extruded aluminium housing.

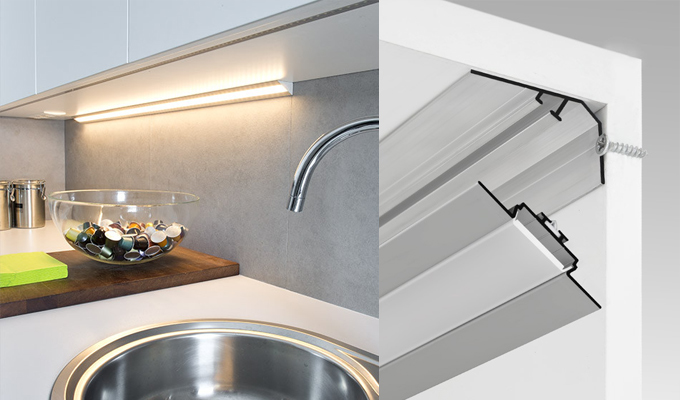

Corner horizontal mounting.
Grey and White.
Architape A011 Profile Specification & Dimensions
Key specification, cross-section and finish options for the A011 profile. Contact our team for technical drawings, samples and pricing.
| Mounting | Corner horizontal mounting |
|---|---|
| Cross-section | 45.8 mm / 27 mm / 52 mm |
| Housing finishes | Grey, White |
Key Features
- Clear or opal cover
- Available in any length in 125 mm steps (up to 3m)
- 5 types of segments with varying endcap and connector combinations
- Corner-mounted installation
- Grey and white housing
Compatible LED Tapes for the A011
Every Architape indoor LED tape rated for the A011: within its maximum load, the right voltage and a width that fits the channel. Filter by tape, voltage or colour temperature, then open a part code for its specification and datasheet.
Featured Installations
Discover how Architape profiles are engineered into landmark architectural projects.
Frequently Asked Questions
How is A011 mounted?
A011 supports corner horizontal mounting.
What are the dimensions of A011?
The key cross-section dimensions of A011 are 45.8 mm, 27 mm and 52 mm. Full dimensions are shown on the technical drawing above.
Which housing finishes are available?
A011 is available in grey and white.
Which end caps and segments are available for A011?
5 types of segments with varying endcap and connector combinations are available, so runs can be finished to suit the installation.
Are technical drawings available for A011?
Yes. The key dimensions are shown above, and full dimensioned drawings of the A011 profile are available from our sales team.
Can I get a sample of A011?
Yes. Contact our sales team to request a sample of A011 with your chosen cover and finish.
