Surface Mounted Indoor Profile

Architape A005M Profile

The A005M surface-mounted lighting fixture is one of our smallest fixtures with homogeneous light effect. Ideal for task, accent lighting and a perfect pick for decorative backlighting.

Specification Contact Sales
Architape A005M Profile
Specs Tapes Contact
Cross-Section
16 x 14 mm

Compact extruded aluminium housing.

Mounting
Surface

Surface horizontal mounting and Surface vertical mounting.

Cover Options
4 covers

Square opal, Round opal, Opal and Clear.

Finishes
2 finishes

Black and Anodised grey.

Profile Specification

Architape A005M Profile Specification & Dimensions

Key specification, cross-section and finish options for the A005M profile. Contact our team for technical drawings, samples and pricing.

Architape A005M Profile

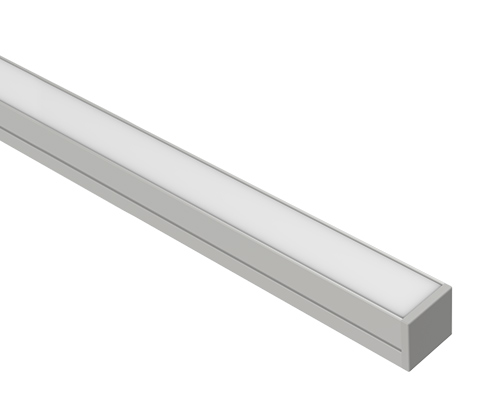

Architape A005M Profile product
Architape A005M Profile dimensions

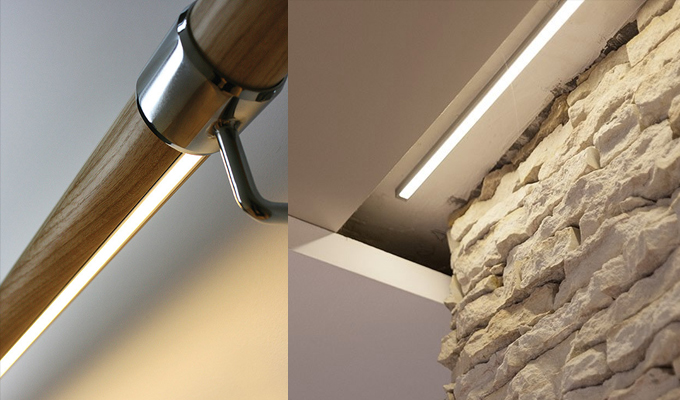

Architape A005M Profile application
MountingSurface horizontal mounting / Surface vertical mounting
Cross-section16 mm / 14 mm / 15 mm
CoversSquare opal, Round opal, Opal, Clear
Housing finishesBlack, Anodised grey

Key Features

  • Clear or opal cover
  • Available in any length in 125 mm steps (up to 3m)
  • 5 types of segments with varying endcap and connector combinations
  • Surface-mounted installation
  • Black and anodised grey housing
Recommended LED Tape

Compatible LED Tapes for the A005M

Every Architape indoor LED tape rated for the A005M: within its maximum load, the right voltage and a width that fits the channel. Filter by tape, voltage or colour temperature, then open a part code for its specification and datasheet.

Real-World Specification

Featured Installations

Discover how Architape profiles are engineered into landmark architectural projects.

All Case Studies
Canal Turn, Island Quarter Nottingham
Nottingham, UK · Studio Fractal

Canal Turn, Island Quarter

Precision architectural illumination across signature dining and public concourses.

Read Case Study
Royal Opera House London
London, UK · Stanton Williams

Royal Opera House

Discrete architectural accentuation integrated into heritage joinery and public concourses.

Read Case Study
Porsche Centre Mayfair London
Mayfair, London · Studio Fractal

Porsche Centre Mayfair

High-resolution precision lighting highlighting luxury automotive design lines.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What covers are available for A005M?

A005M is available with square opal, round opal, opal and clear covers. Opal covers give a smooth, dot-free line; clear covers give the highest light output.

How is A005M mounted?

A005M supports surface horizontal mounting and surface vertical mounting.

What are the dimensions of A005M?

The key cross-section dimensions of A005M are 16 mm, 14 mm and 15 mm. Full dimensions are shown on the technical drawing above.

Which housing finishes are available?

A005M is available in black and anodised grey.

Which end caps and segments are available for A005M?

5 types of segments with varying endcap and connector combinations are available, so runs can be finished to suit the installation.

Are technical drawings available for A005M?

Yes. The key dimensions are shown above, and full dimensioned drawings of the A005M profile are available from our sales team.

Can I get a sample of A005M?

Yes. Contact our sales team to request a sample of A005M with your chosen cover and finish.
