Recessed Indoor Profile

Architape A003 Profile

A003 is a recess-mount fixture for dotless direct lighting applications.

Specification Contact Sales
Architape A003 Profile
Specs Tapes Contact
Cross-Section
66.8 x 26.8 mm

Compact extruded aluminium housing.

Mounting
Recessed

Recessed horizontal mounting, Recessed vertical mounting and Wall mounting.

Cover Options
1 cover

Clear.

Finishes
2 finishes

Black and Anodised grey.

Profile Specification

Architape A003 Profile Specification & Dimensions

Key specification, cross-section and finish options for the A003 profile. Contact our team for technical drawings, samples and pricing.

Architape A003 Profile
Architape A003 Profile product
Architape A003 Profile dimensions

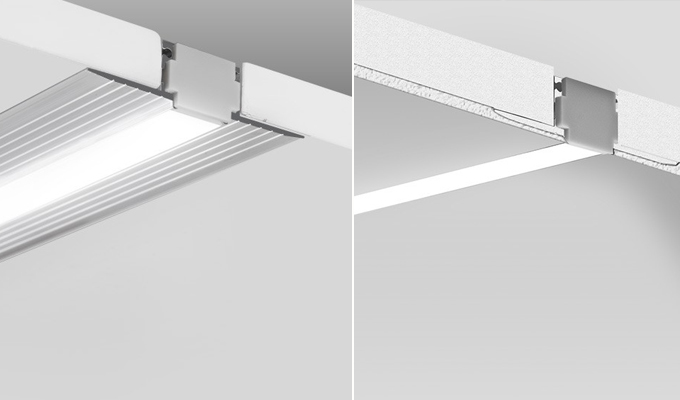

Architape A003 Profile application
MountingRecessed horizontal mounting / Recessed vertical mounting / Wall mounting
Cross-section66.8 mm / 26.8 mm / 24.5 mm
CoversClear
Housing finishesBlack, Anodised grey

Key Features

  • Clear cover options
  • Recessed installation
  • Black and anodised grey housing
Recommended LED Tape

Compatible LED Tapes for the A003

Every Architape indoor LED tape rated for the A003: within its maximum load, the right voltage and a width that fits the channel. Filter by tape, voltage or colour temperature, then open a part code for its specification and datasheet.

Real-World Specification

Featured Installations

Discover how Architape profiles are engineered into landmark architectural projects.

All Case Studies
Canal Turn, Island Quarter Nottingham
Nottingham, UK · Studio Fractal

Canal Turn, Island Quarter

Precision architectural illumination across signature dining and public concourses.

Read Case Study
Royal Opera House London
London, UK · Stanton Williams

Royal Opera House

Discrete architectural accentuation integrated into heritage joinery and public concourses.

Read Case Study
Porsche Centre Mayfair London
Mayfair, London · Studio Fractal

Porsche Centre Mayfair

High-resolution precision lighting highlighting luxury automotive design lines.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What covers are available for A003?

A003 is available with clear cover. The clear cover gives the highest light output.

How is A003 mounted?

A003 supports recessed horizontal mounting, recessed vertical mounting and wall mounting. Recessed versions can be fitted into drywall of any thickness for a clean, trimless line.

What are the dimensions of A003?

The key cross-section dimensions of A003 are 66.8 mm, 26.8 mm and 24.5 mm. Full dimensions are shown on the technical drawing above.

Which housing finishes are available?

A003 is available in black and anodised grey.

Are technical drawings available for A003?

Yes. The key dimensions are shown above, and full dimensioned drawings of the A003 profile are available from our sales team.

Can I get a sample of A003?

Yes. Contact our sales team to request a sample of A003 with your chosen cover and finish.

Start Your Specification

Request technical drawings, samples and pricing for your profile specification.

View Specification Request Sample
