Surface Mounted Indoor Profile

Architape A002M Profile

The A002M fixture is a simple yet perfect solution for any cove lighting application.

Specification Contact Sales
Architape A002M Profile
Specs Tapes Contact
Cross-Section
16 x 6 mm

Compact extruded aluminium housing.

Mounting
Surface

Surface horizontal mounting and Surface vertical mounting.

Linked Runs
Up to 14m

Supplied to length in 125 mm steps.

Cover Options
4 covers

Square opal, Round opal, Opal and Clear.

Profile Specification

Architape A002M Profile Specification & Dimensions

Key specification, cross-section and finish options for the A002M profile. Contact our team for technical drawings, samples and pricing.

Architape A002M Profile

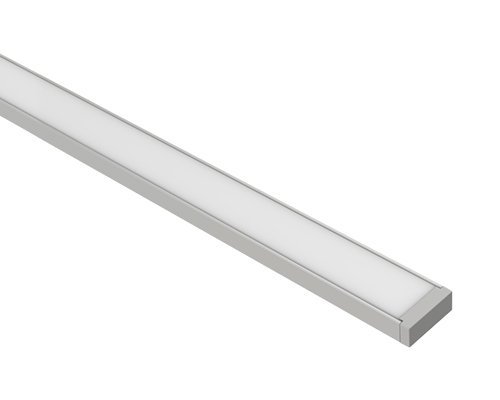

Architape A002M Profile product
Architape A002M Profile dimensions
Architape A002M Profile application
MountingSurface horizontal mounting / Surface vertical mounting
Cross-section16 mm / 6 mm
CoversSquare opal, Round opal, Opal (LOR 74%), Clear (LOR 92%)
Housing finishesBlack, Anodised grey
Linked runsUp to 14m

Key Features

  • Clear or opal cover
  • Available in any length in 125 mm steps (up to 3m)
  • 5 types of segments with varying endcap and connector combinations
  • Surface-mounted installation
  • Black and anodised grey housing
Recommended LED Tape

Compatible LED Tapes for the A002M

Every Architape indoor LED tape rated for the A002M: within its maximum load, the right voltage and a width that fits the channel. Filter by tape, voltage or colour temperature, then open a part code for its specification and datasheet.

Real-World Specification

Featured Installations

Discover how Architape profiles are engineered into landmark architectural projects.

All Case Studies
Canal Turn, Island Quarter Nottingham
Nottingham, UK · Studio Fractal

Canal Turn, Island Quarter

Precision architectural illumination across signature dining and public concourses.

Read Case Study
Royal Opera House London
London, UK · Stanton Williams

Royal Opera House

Discrete architectural accentuation integrated into heritage joinery and public concourses.

Read Case Study
Porsche Centre Mayfair London
Mayfair, London · Studio Fractal

Porsche Centre Mayfair

High-resolution precision lighting highlighting luxury automotive design lines.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What covers are available for A002M?

A002M is available with square opal, round opal, opal (LOR 74%) and clear (LOR 92%) covers. Opal covers give a smooth, dot-free line; clear covers give the highest light output.

How is A002M mounted?

A002M supports surface horizontal mounting and surface vertical mounting.

What are the dimensions of A002M?

The key cross-section dimensions of A002M are 16 mm and 6 mm. Full dimensions are shown on the technical drawing above.

How long can a run of A002M be?

Fixtures can be linked up to 14m long. Lengths are available in 125 mm steps.

Which housing finishes are available?

A002M is available in black and anodised grey.

Which end caps and segments are available for A002M?

5 types of segments with varying endcap and connector combinations are available, so runs can be finished to suit the installation.

Are technical drawings available for A002M?

Yes. The key dimensions are shown above, and full dimensioned drawings of the A002M profile are available from our sales team.

Can I get a sample of A002M?

Yes. Contact our sales team to request a sample of A002M with your chosen cover and finish.
