Outdoor Pro 70 TW Series features a high-density 140 LEDs/m (70 warm + 70 cool) configuration encapsulated in IP67 optical polyurethane for superior color blending and dot-free exterior linear lighting.
Engineered for 24V constant voltage operation with a 100mm cut increment, it allows precise tailoring along exterior facade details, architectural coves, and landscape steps (L90B10 > 60,000h).
High-Density Tunable White (1800K – 5700K)
140 LEDs/m dual-emitter density engineered for tight-pitch dot-free exterior diffusion.
Performance at a Glance
High-fidelity photometric metrics for outdoor architectural specification.
Balanced 9.6W/m power delivery optimized for dense, dot-free exterior circadian illumination.
High luminous delivery reaching up to 1175 lm/m across smooth CCT colour tuning.
High optical efficiency up to 122 lm/W across both warm and cool channels.
High color fidelity maintained consistently across all CCT colour blends.
Precision Outdoor Engineering
UV & Chlorine-Resistant Polyurethane
Solid encapsulation prevents water ingress, yellowing from sunlight exposure, and degradation from swimming pool chlorine or saline air.
Copper PCB & Thermal Management
Heavy-weight double-sided copper PCB ensures efficient heat dissipation through the encapsulation, protecting LED lifespan (L90B10 > 60,000h).
Factory-Sealed IP67 Connections
Precision over-moulded End and Back wire exits guarantee watertight integrity at all connection and feed points.
Photometric Overview

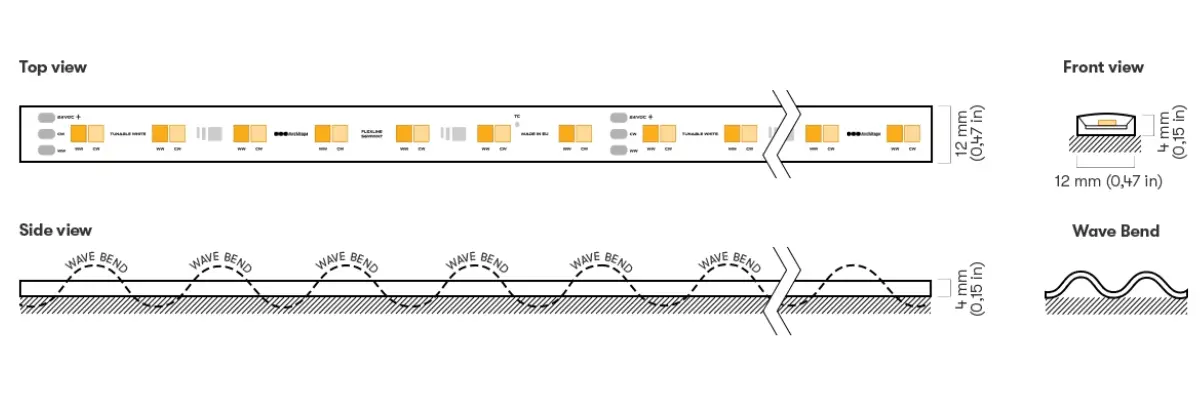

Product Dimensions
Detailed dimensional drawings and cross-section specifications.
Frequently Asked Questions
What is the benefit of the Pro 70 TW over Pro 50 TW?
Pro 70 TW features 140 LEDs/m with a shorter 100mm cut increment, providing superior color blending and dot-free illumination in shallow profile installations.
Is the encapsulation protected against pool chlorine and sea salt?
Yes, the polyurethane encapsulation is engineered specifically to resist salt spray, swimming pool chlorine vapors, and harsh outdoor weather.
What dimming protocols are supported?
Compatible with standard DALI-2 DT8, 0-10V dual-channel dimming, and wireless Casambi Bluetooth mesh.
Featured Installations
Discover how Architape luminaires are engineered into landmark architectural projects.
Configure Your Outdoor Pro 70 TW Series
Explore every available configuration of the Outdoor Pro 70 TW Series.
Start Your Specification
Access the full range of photometrics, technical data sheets, and custom configurations in our tool.
