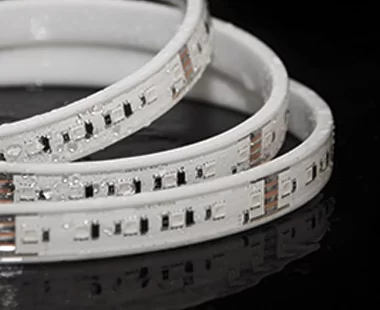

Outdoor Pro 50 RGBW Series combines full-gamut RGB colour changing with a dedicated high-CRI white LED channel in a single 4-in-1 package, encapsulated for IP67 exterior durability.
Encapsulated in solid optical polyurethane resistant to UV and chlorine, it allows lighting designers to seamlessly transition between saturated dramatic colour scenes and clean architectural white lighting (L90B10 > 60,000h).
Dynamic RGBW 4-Channel Gamut
Combines full saturated RGB colour spectrum with a dedicated pure white channel for pastel tones and true architectural white.
Performance at a Glance
High-fidelity photometric metrics for outdoor architectural specification.
Available in 9.6W/m and 14.4W/m delivering dynamic colour plus crisp true white illumination.
High luminous output reaching up to 724 lm/m across dynamic colour and white modes.
High optical efficiency through integrated 4-in-1 Quad-chip LED architecture.
Full colour gamut combined with a dedicated high-fidelity white LED sub-channel.
Precision Outdoor Engineering
UV & Chlorine-Resistant Polyurethane
Solid encapsulation prevents water ingress, yellowing from sunlight exposure, and degradation from swimming pool chlorine or saline air.
Copper PCB & Thermal Management
Heavy-weight double-sided copper PCB ensures efficient heat dissipation through the encapsulation, protecting LED lifespan (L90B10 > 60,000h).
Factory-Sealed IP67 Connections
Precision over-moulded End and Back wire exits guarantee watertight integrity at all connection and feed points.
Photometric Overview

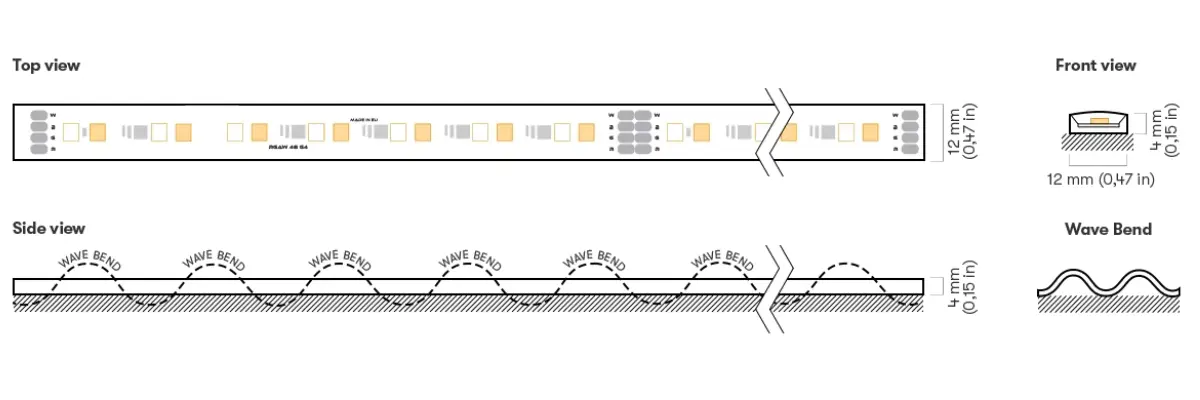

Product Dimensions
Detailed dimensional drawings and cross-section specifications.
Frequently Asked Questions
What advantage does RGBW offer over standard RGB?
RGBW includes a dedicated white LED phosphor channel, allowing crisp, accurate architectural white light and softer pastel tones that standard 3-channel RGB cannot produce.
What control systems are recommended for RGBW?
It is controlled via 4-channel 24V PWM drivers compatible with DMX512, DALI-2 DT8, 0-10V, and wireless Casambi Bluetooth networks.
Is the tape fully sealed against rain and dust?
Yes, it features continuous solid optical polyurethane encapsulation providing complete IP67 ingress protection.
Featured Installations
Discover how Architape luminaires are engineered into landmark architectural projects.
Configure Your Outdoor Pro 50 RGBW Series
Explore every available configuration of the Outdoor Pro 50 RGBW Series.
Start Your Specification
Access the full range of photometrics, technical data sheets, and custom configurations in our tool.
