Outdoor Pro 50 IP67 LED Tape | Versatile Exterior Series

Configure Datasheets Series PDF Contact

Power Options

2.4 W/m - 11.5 W/m

24V DC architecture across 2.4W, 4.8W, 7.2W, 9.6W, and 11.5W/m loads.

Luminous Flux

170 lm/m - 1223 lm/m

Consistent luminous output delivering up to 1223 lm/m through solid encapsulation.

Max Efficacy

34 Lm/W - 129 Lm/W

High optical and thermal efficiency reaching up to 129 Lm/W on Single Colour white.

Ingress Protection

IP67 Polyurethane

UV-stabilised and chlorine-resistant solid encapsulation (L90B10 > 60,000h).

Configuration Matrix

Four Ways to Specify Outdoor Pro 50

Select from 4 specialised optical configurations engineered on the Outdoor Pro 50 IP67 platform, all protected in UV- and chlorine-resistant polyurethane encapsulation.

Fixed CCT

Single Colour

Versatile exterior linear tape available in 11 CCTs (1800K–6500K) with CRI 90+ and 125mm cutting intervals.

Max Run

18.5 m

Power

2.4 – 9.6 W/m

10.0 mm width · 125 mm cut interval · 56 LEDs/m IP67 factory-sealed End/Back wire exit

Dual-Channel

Pro 50 TW

Warm and cool dual-channel emitters for circadian tuning across 1400K–6500K with DALI DT8 control.

Max Run

8 m

Power

9.6 W/m

10.0 mm width · 125 mm cut interval · 56 LEDs/m Dual-channel warm + cool control

Full Spectrum RGB

Pro 50 RGB

Tri-colour 48 LEDs/m emitters delivering saturated hues and smooth exterior colour-mixing.

Max Run

9 m

Power

7.2 – 11.5 W/m

12.0 mm width · 125 mm cut interval · 48 LEDs/m 4-pad (+ / R / G / B) PWM dimming

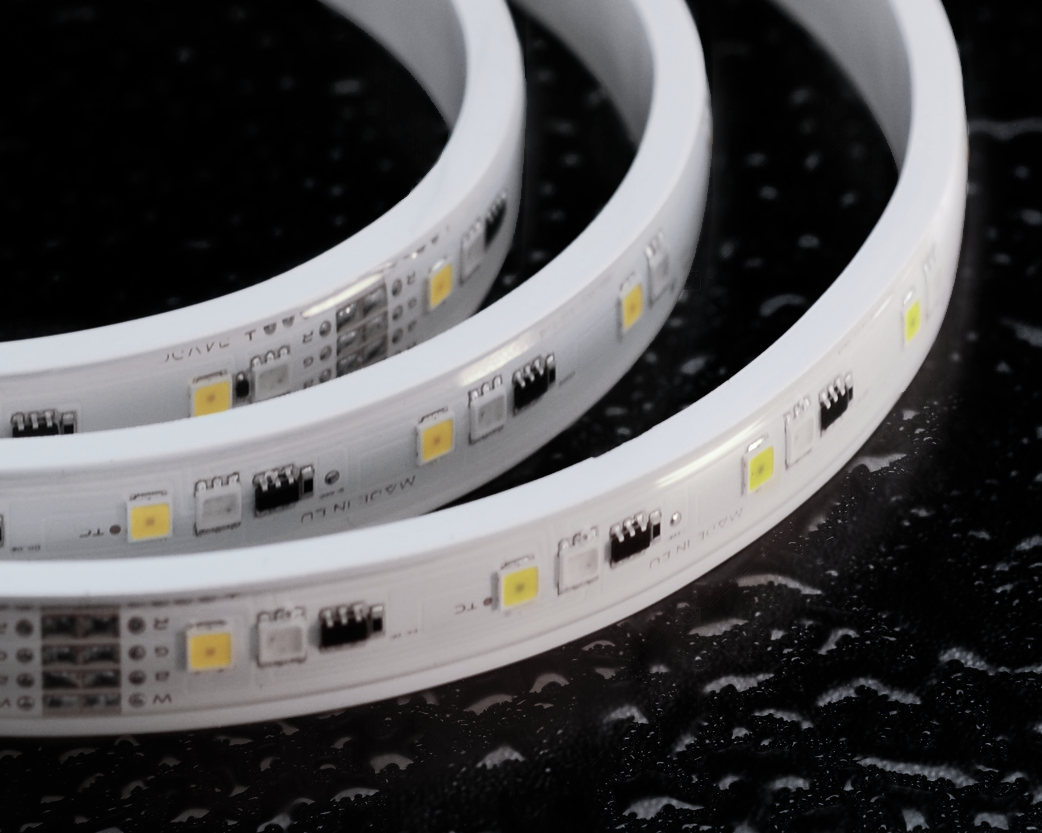

Quad-Chip RGBW

Pro 50 RGBW

4-in-1 quad-chip diode combining RGB with true architectural white (2000K/3000K), eliminating colour fringing.

Max Run

8 m

Power

9.6 W/m

12.0 mm width · 125 mm cut interval · 48 LEDs/m 5-pad (+ / R / G / B / W) PWM dimming

Series Book (PDF) Datasheets (PDF) IES / LDT (per variant)

Configure Your Outdoor Pro 50 Series

Explore every available configuration of the Outdoor Pro 50 Series.

Real-World Specification

Recent Projects

Discover how Architape luminaires and exterior linear systems are engineered into landmark architectural projects.

All Projects

Tottenham Court Road, Camden, London · LDA Design

Whitfield Gardens, Tottenham Court Road

Michael Grubb Studio lit Camden's Whitfield Gardens with Architape Opaline M, Opaline Flex and walkover Opaline Inground for the West End Project.

Read Case Study

Broadgate, City of London · British Land

Exchange Square, Broadgate

Speirs Major specified 2500K Opaline Flex and Opaline Inground for Exchange Square, British Land and DSDHA's 1.5-acre park above Liverpool Street.

Read Case Study

The Island Quarter, Nottingham · Jestico + Whiles

Canal Turn, Island Quarter Nottingham

Studio Fractal specified 2500K IP67 Architape Opaline M and L to light Canal Turn, the first phase of Nottingham's Island Quarter by Jestico + Whiles.

Read Case Study

Engineering FAQ

Frequently Asked Questions

What configurations are included in the Outdoor Pro 50 Series?

The Outdoor Pro 50 Series spans Single Colour whites (1800K–6500K), dual-channel Tuneable White for circadian and mood control, tri-colour RGB, and 4-in-1 quad-chip RGBW with true architectural white mixing, all protected in IP67 polyurethane encapsulation.

What is the maximum run length on a single feed?

Outdoor Pro 50 Single Colour supports up to 18.5m continuous run at 2.4W/m, or 13m at 4.8W/m, on a single 24V feed without voltage drop.

How is the Outdoor Pro 50 protected against the elements?

Outdoor Pro 50 is protected by a seamless IP67 optical polyurethane encapsulation, resistant to UV exposure, saltwater spray, and chlorinated water, suitable for coastal and poolside installations.

What colour temperatures is Outdoor Pro 50 available in?

Outdoor Pro 50 is available in white colour temperatures from 1400K to 8000K, including tunable white versions that blend between a warm and a cool channel. Colour-changing RGBW and RGB versions are also offered.

What colour rendering (CRI) does Outdoor Pro 50 offer?

White versions of Outdoor Pro 50 are offered at CRI 80+ and CRI 90+, giving accurate colour rendering for architectural and retail spaces.

Which light colour options are available for Outdoor Pro 50?

Outdoor Pro 50 is available as Tunable White, Single Colour, RGBW and RGB.

What power options are available for Outdoor Pro 50?

Outdoor Pro 50 is offered from 2.4 to 11.52 W/m across 5 output levels and runs on 24V DC, so you can balance brightness against run length and driver sizing.

How efficient is Outdoor Pro 50?

Efficacy reaches up to 128 lm/W, depending on the colour temperature, CRI and output selected. Coloured and tunable variants sit lower in the range. Exact figures for each SKU are on its datasheet.
