Outdoor IP67 LED Tape

Outdoor Pro 100 Series

Architape Outdoor Pro 100 is our flagship IP67 polyurethane encapsulated linear tape system engineered for demanding exterior facades, landscape features, and wet areas — unifying 24V standard runs, 48V extended runs (up to 28.5m), vibrant RGB, and digital SPI Pixel addressable tape.

Configure Model Datasheets Series Book Contact Sales
Outdoor Pro 100 Series
Power Options
4.8 W/m - 26.0 W/m

24V & 48V architectures across 4.8W, 9.6W, 11.5W, 14.4W, and 26W/m loads.

Luminous Flux
218 lm/m - 1824 lm/m

Potent luminous output delivering up to 1824 lm/m through solid encapsulation.

Max Efficacy
33 Lm/W - 129 Lm/W

High optical and thermal efficiency reaching up to 129 Lm/W on architectural white.

Ingress Protection
IP67 Polyurethane

UV-stabilised and chlorine-resistant solid encapsulation (L90B10 > 60,000h).

Configuration Matrix

Four Ways to Specify Outdoor Pro 100

Select from 4 specialised optical and electrical configurations engineered on the Outdoor Pro 100 IP67 platform, all protected in UV- and chlorine-resistant polyurethane encapsulation.

24V Standard
Outdoor Pro 100 Single Colour 24V

Single Colour 24V

Benchmark exterior linear tape with 11 CCTs (1800K–6500K), CRI 90+, and 62.5mm cutting intervals in a 10mm wide profile.

Max Run
13 m
Power
4.8 – 14.4 W/m
Outdoor Pro 100 Single Colour Dimensions
10.0 mm width · 62.5 mm cut interval · 112 LEDs/m IP67 factory-sealed End/Back wire exit
48V Extended Run
Outdoor Pro 100 48V Long Run

Single Colour 48V

Engineered for extra-long uninterrupted runs up to 28.5m from a single feed point with zero voltage drop or lumen fading.

Max Run
28.5 m
Power
4.8 – 9.6 W/m
Outdoor Pro 100 48V Dimensions
10.0 mm width · 125 mm cut interval · 112 LEDs/m IP67 factory-sealed End/Back wire exit
Full Spectrum RGB
Outdoor Pro 100 RGB

Pro 100 RGB

Vibrant 96 LEDs/m tri-colour emitters delivering rich saturated hues and smooth architectural exterior colour-mixing.

Max Run
9.5 m
Power
11.5 – 14.4 W/m
Outdoor Pro 100 RGB Dimensions
12.0 mm width · 62.5 mm cut interval · 96 LEDs/m 4-pad (+ / R / G / B) PWM dimming
Digital Pixel

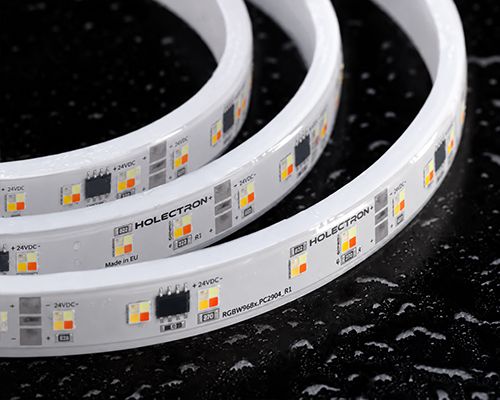

Outdoor Pro 100 Pixel

Pro 100 Pixel

Individually addressable LED segments with integrated SPI control ICs for dynamic exterior media chases and bespoke animations.

Cut Step
62.5 mm
Power
26.0 W/m
Outdoor Pro 100 Pixel Dimensions
12.0 mm width · 62.5 mm cut interval · 96 LEDs/m Digital SPI bus, individually addressable
Series Book (PDF) Datasheets (PDF) IES / LDT (per variant)

Configure Your Outdoor Pro 100 Series

Explore every available configuration of the Outdoor Pro 100 Series.

Real-World Specification

Recent Projects

Discover how Architape luminaires and exterior linear systems are engineered into landmark architectural projects.

All Projects
Whitfield Gardens, Tottenham Court Road
Tottenham Court Road, Camden, London · LDA Design

Whitfield Gardens, Tottenham Court Road

Michael Grubb Studio lit Camden's Whitfield Gardens with Architape Opaline M, Opaline Flex and walkover Opaline Inground for the West End Project.

Read Case Study
Exchange Square, Broadgate
Broadgate, City of London · British Land

Exchange Square, Broadgate

Speirs Major specified 2500K Opaline Flex and Opaline Inground for Exchange Square, British Land and DSDHA's 1.5-acre park above Liverpool Street.

Read Case Study
Canal Turn, Island Quarter Nottingham
The Island Quarter, Nottingham · Jestico + Whiles

Canal Turn, Island Quarter Nottingham

Studio Fractal specified 2500K IP67 Architape Opaline M and L to light Canal Turn, the first phase of Nottingham's Island Quarter by Jestico + Whiles.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What level of waterproof protection does the Outdoor Pro 100 provide?

Outdoor Pro 100 features complete IP67 polyurethane encapsulation, providing total protection against dust ingress, rain, splashing, and temporary water immersion up to 1 metre depth.

What run lengths can I achieve with Outdoor Pro 100 24V and 48V?

On standard 24V single feeds, Outdoor Pro 100 supports continuous runs up to 13m at 4.8W/m. With the 48V extended-run architecture, achieve up to 28.5m continuous uninterrupted runs from a single electrical feed point without voltage drop or lumen fading.

Is the encapsulation resistant to UV exposure and swimming pool chlorine?

Yes. Our optical polyurethane formulation is UV-stabilised and tested for resistance to saline coastal environments and chlorinated water, preventing yellowing, cracking, or optical loss over time.

What colour temperatures is Outdoor Pro 100 available in?

Outdoor Pro 100 is available in white colour temperatures from 1400K to 8000K. Colour-changing RGB and Pixel versions are also offered.

What colour rendering (CRI) does Outdoor Pro 100 offer?

White versions of Outdoor Pro 100 are offered at CRI 90+, giving accurate colour rendering for architectural and retail spaces.

Which light colour options are available for Outdoor Pro 100?

Outdoor Pro 100 is available as Single Colour, RGB and Pixel.

What power options are available for Outdoor Pro 100?

Outdoor Pro 100 is offered from 4.8 to 26 W/m across 5 output levels and runs on 24V DC and 48V DC, so you can balance brightness against run length and driver sizing.

How efficient is Outdoor Pro 100?

Efficacy reaches up to 129 lm/W, depending on the colour temperature, CRI and output selected. Coloured and tunable variants sit lower in the range. Exact figures for each SKU are on its datasheet.

Start Your Specification

Access the full range of photometrics, technical data sheets, and custom runs in our configuration tool.

Open Configurator Request Sample
