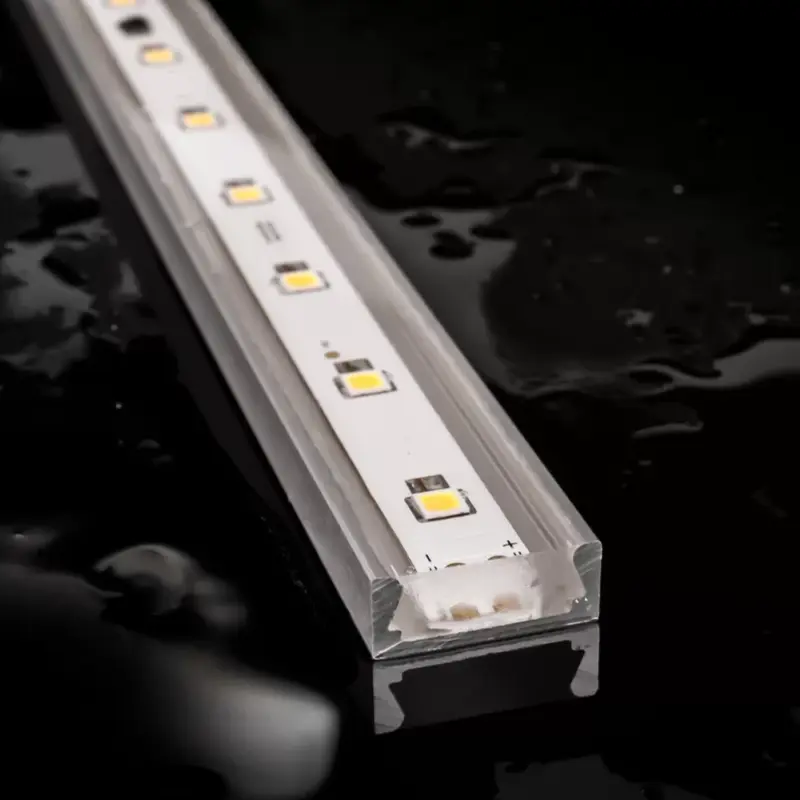

IP67 TW Series brings circadian tunable white illumination to exterior facades, building canopies, perimeters, and architectural terraces.
Encapsulated in solid optical polyurethane with an extruded aluminum housing, it enables smooth transitions between warm ambient tones and crisp daytime light with complete IP67 outdoor protection (L90B10 > 60,000h).
Dynamic Tunable White Range (1800K – 5700K)
Seamless transitions from intimate candlelit warmth to energising natural daylight.
Performance at a Glance
High-fidelity photometric metrics for outdoor architectural luminaire specification.
Balanced 9.6 W/m dual-channel power delivery for dynamic exterior circadian lighting.
Potent luminous output reaching up to 1175 lm/m with smooth correlated colour temperature tuning.
Exceptional optical efficiency delivering up to 122 lm/W across both channels.
High color fidelity maintained consistently across the entire tunable white spectrum.
Precision Exterior Engineering
UV & Chlorine-Resistant Optical Encapsulation
Solid polyurethane encapsulation completely protects internal electronics against rain, snow, salt air, and pool chemicals.
Extruded Aluminum Thermal Spine
Structural architectural aluminum housing provides rigid structural mounting and optimal heat conduction for long-term reliability (L90B10 > 60,000h).
Factory-Sealed Watertight Connections
Over-moulded watertight feed cables ensure total electrical isolation in harsh weather conditions.
Photometric Overview
Product Dimensions
Detailed dimensional drawings and profile cross-section.
Frequently Asked Questions
What correlated colour temperature range does IP67 TW Series cover?
It smoothly tunes across a wide spectrum from 1800K (ultra-warm candlelit) to 5700K (crisp cool daylight).
How is the dual-channel Tunable White controlled?
Controlled via 2-channel 24V PWM drivers using DALI-2 DT8 Tunable White, 0-10V dual dimming, or wireless Casambi Bluetooth profiles.
What mounting options are provided?
Supplied with surface mounting clips, adjustable angle brackets, or heavy-duty architectural mounting tracks.
Featured Installations
Discover how Architape luminaires are engineered into landmark architectural projects.
Configure Your IP67 TW Series
Explore every available configuration of the IP67 TW Series.
Start Your Specification
Access the full range of photometrics, technical data sheets, and custom configurations in our tool.
