Medium Profile Outdoor Luminaire

Architape H-Line M Outdoor Luminaire Series

Architape H-Line M: Balanced-profile IP67 architectural luminaire delivering exceptional lumen output and optical control for exterior facades and pathways.

Configure Model Series Book Contact Sales
Architape H-Line M Outdoor Luminaire Series
Power Options
24V DC Architecture

Engineered for architectural efficiency and clean thermal performance.

Luminous Flux
High Lumen Packages

Uniform delivery with minimal glare and superior colour consistency.

System Efficacy
Up to 130+ lm/W

Sustainable, durable outdoor operation (L90B10 > 60,000h).

Colour Rendering
CRI 90+

True-to-life architectural rendering across all colour temperatures.

Configuration Matrix

Architape H-Line M Outdoor Luminaire Series Configurations & Dimensions

Architape H-Line M: Balanced-profile IP67 architectural luminaire delivering exceptional lumen output and optical control for exterior facades and pathways.

Architape H-Line M Outdoor Luminaire Series

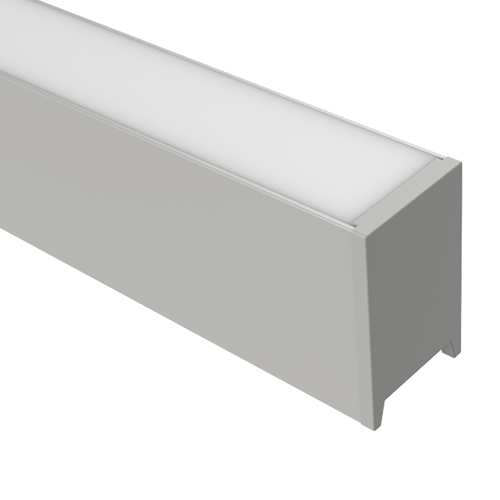

Architape H-Line M Outdoor Luminaire Series product
Architape H-Line M Outdoor Luminaire Series dimensions
Series Book (PDF) Data Sheets (per variant) IES / LDT (per variant)

Configure Your Architape H-Line M Outdoor Luminaire Series

Explore every available configuration across all colour sub-families.

Real-World Specification

Recent Projects

Explore recent Architape architectural lighting projects.

All Projects
Whitfield Gardens, Tottenham Court Road
Tottenham Court Road, Camden, London · LDA Design

Whitfield Gardens, Tottenham Court Road

Michael Grubb Studio lit Camden's Whitfield Gardens with Architape Opaline M, Opaline Flex and walkover Opaline Inground for the West End Project.

Read Case Study
Exchange Square, Broadgate
Broadgate, City of London · British Land

Exchange Square, Broadgate

Speirs Major specified 2500K Opaline Flex and Opaline Inground for Exchange Square, British Land and DSDHA's 1.5-acre park above Liverpool Street.

Read Case Study
Canal Turn, Island Quarter Nottingham
The Island Quarter, Nottingham · Jestico + Whiles

Canal Turn, Island Quarter Nottingham

Studio Fractal specified 2500K IP67 Architape Opaline M and L to light Canal Turn, the first phase of Nottingham's Island Quarter by Jestico + Whiles.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What optical distributions are available?

Available with Opal diffusion for smooth continuous lines, Clear covers, and precision beam angles for dramatic exterior facade grazing.

What is the ingress protection and casing durability?

Engineered to IP67 exterior ingress protection standards with heavy-duty aluminium casing and UV-resistant solid polyurethane encapsulation.

What control systems are supported?

Compatible with 0-10V, DALI-2, DMX512 / RDM, digital SPI pixel protocols, and wireless Casambi systems.

What colour temperatures is H-Line M available in?

H-Line M is available in white colour temperatures from 1400K to 8000K, including tunable white versions that blend between a warm and a cool channel. Colour-changing RGBW, RGB and Pixel versions are also offered.

What colour rendering (CRI) does H-Line M offer?

White versions of H-Line M are offered at CRI 80 and CRI 90, giving accurate colour rendering for architectural and retail spaces.

Which light colour options are available for H-Line M?

H-Line M is available as Tunable White, Single Colour, RGBW, RGB and Pixel.

What power options are available for H-Line M?

H-Line M is offered from 1.2 to 26.1 W/m across 11 output levels and runs on 24V DC and 48V DC, so you can balance brightness against run length and driver sizing.

How efficient is H-Line M?

Efficacy reaches up to 84 lm/W, depending on the colour temperature, CRI and output selected. Coloured and tunable variants sit lower in the range. Exact figures for each SKU are on its datasheet.

Start Your Specification

Access the full range of photometrics, technical data sheets, and custom configurations in our tool.

Open Configurator Request Sample
