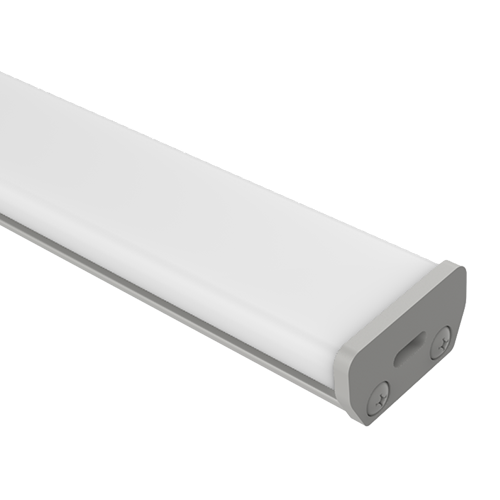

Architape A035 IP67 Architectural Outdoor Luminaire

Configure Series PDF Contact

Power Density

4.8 W/m – 26.1 W/m

Versatile wattage options engineered for discreet accent lines to high-output facade washes.

Luminous Flux

Up to 3,000+ lm/m

Industry-leading lumen packages with superior efficiency across clear and opal diffusers.

System Efficacy

Up to 135 lm/W

Optimised thermal dissipation for sustained luminaire efficacy (L90B10 > 60,000h).

Colour Rendering

CRI 90+ / CRI 95+

Museum-grade colour fidelity preserving architectural textures and material finishes.

Configuration Matrix

Architape A035 Outdoor Luminaire Series Configurations & Dimensions

Available across 5 Colour Sub-Families (Single Colour, Tuneable White, RGBW 4-in-1, RGB Full Gamut, and SPI Pixel), it features Nichia emitters, multiple optical covers, and precision beam angles for facades, grazing, and exterior joinery.

Architape A035 Outdoor Luminaire Series

Series Book (PDF) Data Sheets (per variant) IES / LDT (per variant)

Configure Your Architape A035 Outdoor Luminaire

Explore every available configuration across Single Colour, Tuneable White, RGBW, RGB, and Pixel variants.

Real-World Specification

Recent Projects

Discover how Architape luminaires are engineered into landmark architectural projects.

All Projects

Tottenham Court Road, Camden, London · LDA Design

Whitfield Gardens, Tottenham Court Road

Michael Grubb Studio lit Camden's Whitfield Gardens with Architape Opaline M, Opaline Flex and walkover Opaline Inground for the West End Project.

Read Case Study

Broadgate, City of London · British Land

Exchange Square, Broadgate

Speirs Major specified 2500K Opaline Flex and Opaline Inground for Exchange Square, British Land and DSDHA's 1.5-acre park above Liverpool Street.

Read Case Study

The Island Quarter, Nottingham · Jestico + Whiles

Canal Turn, Island Quarter Nottingham

Studio Fractal specified 2500K IP67 Architape Opaline M and L to light Canal Turn, the first phase of Nottingham's Island Quarter by Jestico + Whiles.

Read Case Study

Engineering FAQ

Frequently Asked Questions

What optical distributions are available on the A035?

The A035 offers Opal diffusion for smooth continuous runs, clear covers, and narrow to wide precision beam angles including 15°, 30°, 60°, 90°, and Asymmetric optics for facade grazing.

What is the ingress protection and casing durability?

Fully IP67 sealed with high-grade aluminium extrusion available in silver anodised, black, and custom RAL finishes with robust outdoor polyurethane resin encapsulation.

What control protocols can be used?

Supports 0-10V, DALI-2, DMX512 / RDM, SPI digital pixel addressability, and wireless Casambi control.

What colour temperatures is A035 available in?

A035 is available in white colour temperatures from 1400K to 8000K, including tunable white versions that blend between a warm and a cool channel. Colour-changing RGBW, RGB and Pixel versions are also offered.

What colour rendering (CRI) does A035 offer?

White versions of A035 are offered at CRI 80 and CRI 90, giving accurate colour rendering for architectural and retail spaces.

Which light colour options are available for A035?

A035 is available as Tunable White, Single Colour, RGBW, RGB and Pixel.

What power options are available for A035?

A035 is offered from 1.2 to 26.1 W/m across 11 output levels and runs on 24V DC and 48V DC, so you can balance brightness against run length and driver sizing.

How efficient is A035?

Efficacy reaches up to 78 lm/W, depending on the colour temperature, CRI and output selected. Coloured and tunable variants sit lower in the range. Exact figures for each SKU are on its datasheet.

Start Your Specification

Access the full range of photometrics, technical data sheets, and custom configurations in our tool.
