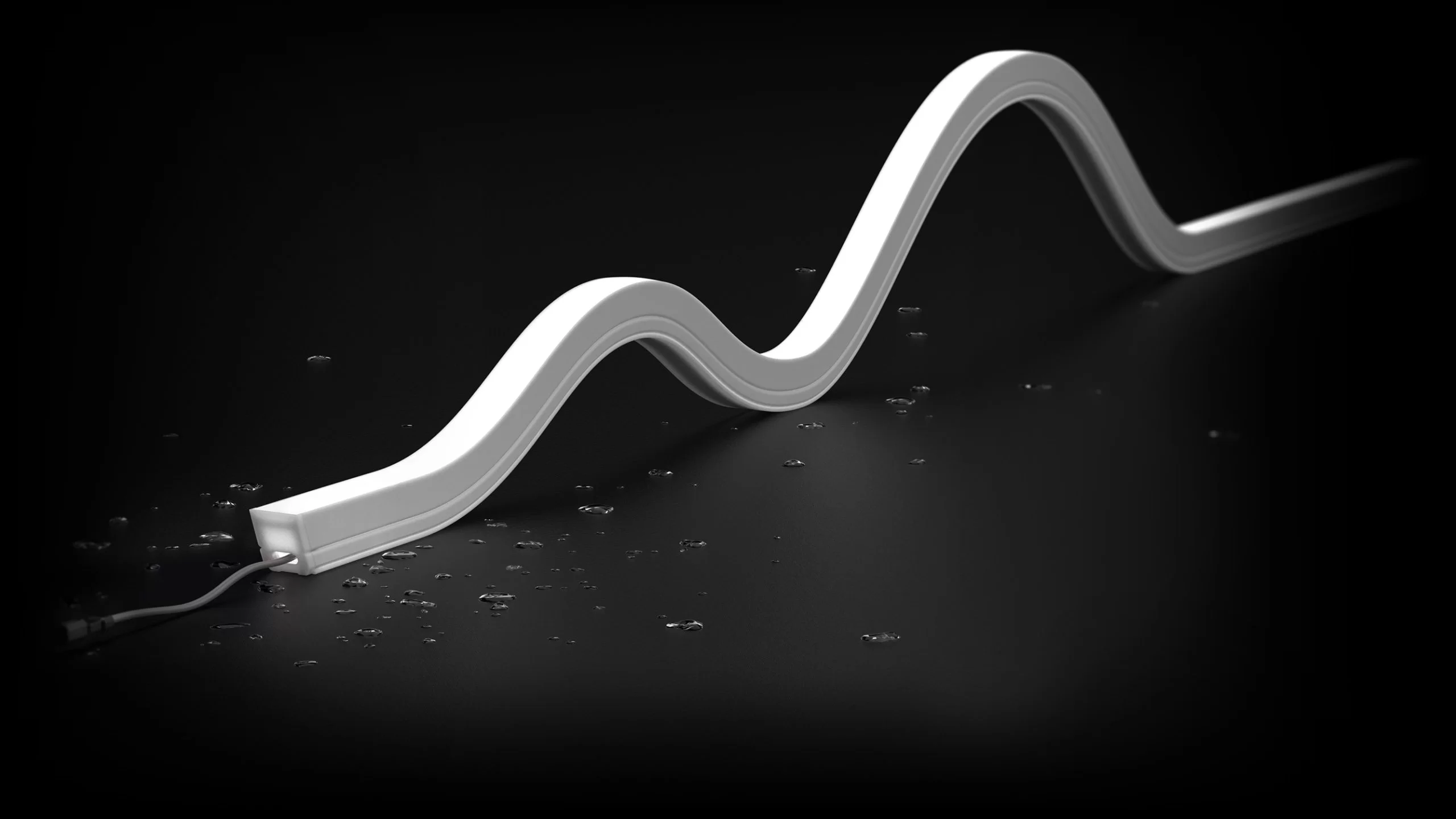

Opaline Flex Top Bend Single Colour Series delivers dot-free, high-performance architectural linear white light capable of curving seamlessly along vertical curves, archways, and sculpted building facades.
Offered in both 24V and 48V power architectures, it enables extended continuous runs on single power feeds without voltage drop. Built with UV- and chlorine-resistant solid encapsulation, it provides robust IP67 outdoor protection (L90B10 > 60,000h).
Architectural White Light Spectrum
Wide range of correlated colour temperatures engineered for exterior visual comfort.
Performance at a Glance
High-fidelity photometric metrics for flexible exterior specification.
Available in 24V and 48V configurations from 4.8W/m to 14.4W/m for extended architectural runs.
High luminous delivery reaching up to 1390 lm/m with flawless dot-free linear diffusion.
Exceptional energy efficiency up to 98 lm/W through high-grade optical encapsulation.
High color fidelity options across 2000K to 6500K correlated colour temperatures.
Precision Flexible Engineering
UV & Chlorine-Resistant Solid Encapsulation
Solid polyurethane co-extrusion prevents water ingress, yellowing from sunlight, and chemical corrosion from pool chlorine and salt air.
Double-Sided Copper PCB
Heavy copper PCB provides robust current stabilization and continuous thermal dissipation, guaranteeing long operating life (L90B10 > 60,000h).
IP67 Injection-Moulded Connectors
Factory-sealed injection-moulded end caps and wire exits maintain watertight integrity in challenging exterior installations.
Photometric Overview
Product Specifications & Downloads
Access photometric IES/LDT distributions, installation guides, and full product data sheets.
Frequently Asked Questions
What ceiling and facade shapes can Top Bend accommodate?
Top Bend is designed for applications requiring vertical axis flexibility, including arched portals, barrel vaulted ceilings, exterior colonnades, step nosings, and undulating landscape walls.
Can Opaline Flex Top Bend be cut to custom lengths on site?
Yes, it features clear cut marks at 62.5mm or 125mm increments and can be sealed with factory IP67 end-cap kits.
What dimming protocols are compatible?
Compatible with standard Phase-cut, 0-10V, DALI-2, and wireless Casambi Bluetooth control.
Featured Installations
Discover how Architape luminaires are engineered into landmark architectural projects.
Configure Your Opaline Flex Top Bend Single Colour Series
Explore every available configuration of the Opaline Flex Top Bend Single Colour Series.
Start Your Specification
Access the full range of photometrics, technical data sheets, and custom configurations in our tool.
