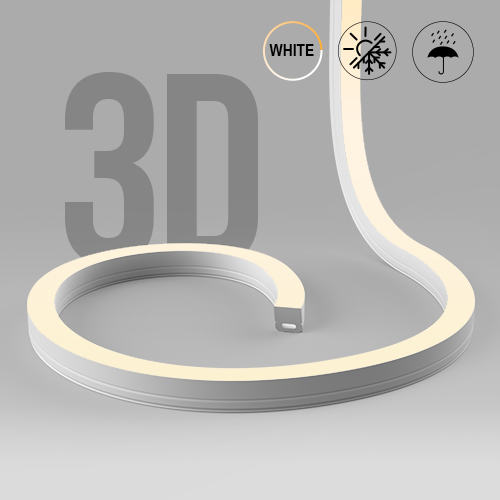

Opaline Flex 3D Bend Series combines vertical and horizontal axis flexibility in one profile, following compound curves, spirals, and freeform sculptural geometries beyond single-axis bend types.
Encapsulated in solid optical polyurethane with continuous opal diffusion, it delivers seamless dot-free illumination along complex 3D paths while providing full IP67 waterproof and UV protection (L90B10 > 60,000h).
Architectural White Light Spectrum
Consistent colour output across the full 3D bend profile with completely dot-free diffusion.
Performance at a Glance
High-fidelity photometric metrics for flexible exterior specification.
24V DC power delivery from 4.8W/m to 26W/m across the fully flexible 3D bend range.
High luminous delivery up to 1357 lm/m with completely homogeneous, dot-free output along complex curves.
High optical efficiency providing sustainable energy performance across the 3D bend range.
High color fidelity maintained consistently along the entire multi-axis bend profile.
Precision Flexible Engineering
UV & Chlorine-Resistant Solid Encapsulation
Solid polyurethane co-extrusion prevents water ingress, yellowing from sunlight, and chemical corrosion from pool chlorine and salt air.
Double-Sided Copper PCB
Heavy copper PCB provides robust current stabilization and continuous thermal dissipation, guaranteeing long operating life (L90B10 > 60,000h).
IP67 Injection-Moulded Connectors
Factory-sealed injection-moulded end caps and wire exits maintain watertight integrity in challenging exterior installations.

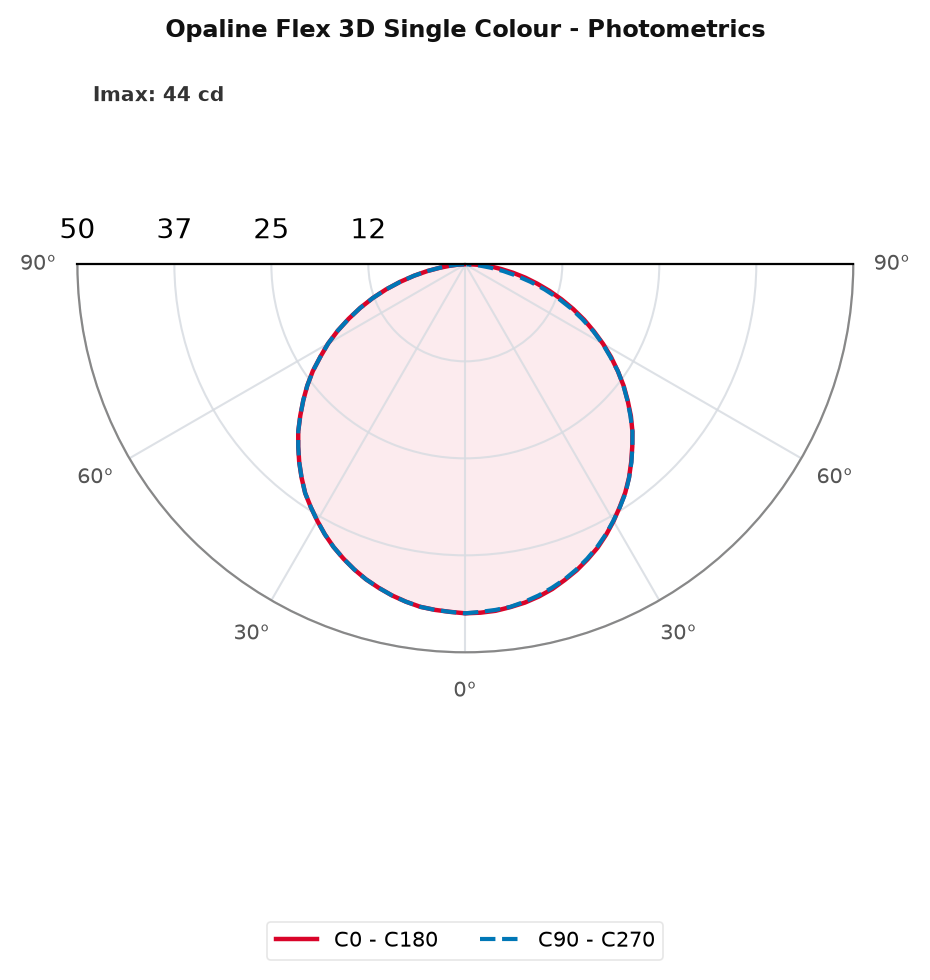

Photometric Overview
Product Specifications & Downloads
Access photometric IES/LDT distributions, installation guides, and full product data sheets.
Frequently Asked Questions
What makes 3D Bend different from Top or Side Bend?
3D Bend combines both vertical and horizontal axis flexibility in a single profile, allowing it to follow complex compound curves and freeform geometries that single-axis profiles cannot.
What is the minimum bend radius for 3D Bend?
Opaline Flex 3D Bend can curve to a minimum radius of 150mm on both axes simultaneously, suiting spirals, waves, and sculptural forms.
What mounting hardware is provided?
Mounting options include flexible stainless steel clips and rigid aluminum mounting tracks suited to freeform 3D installations.
