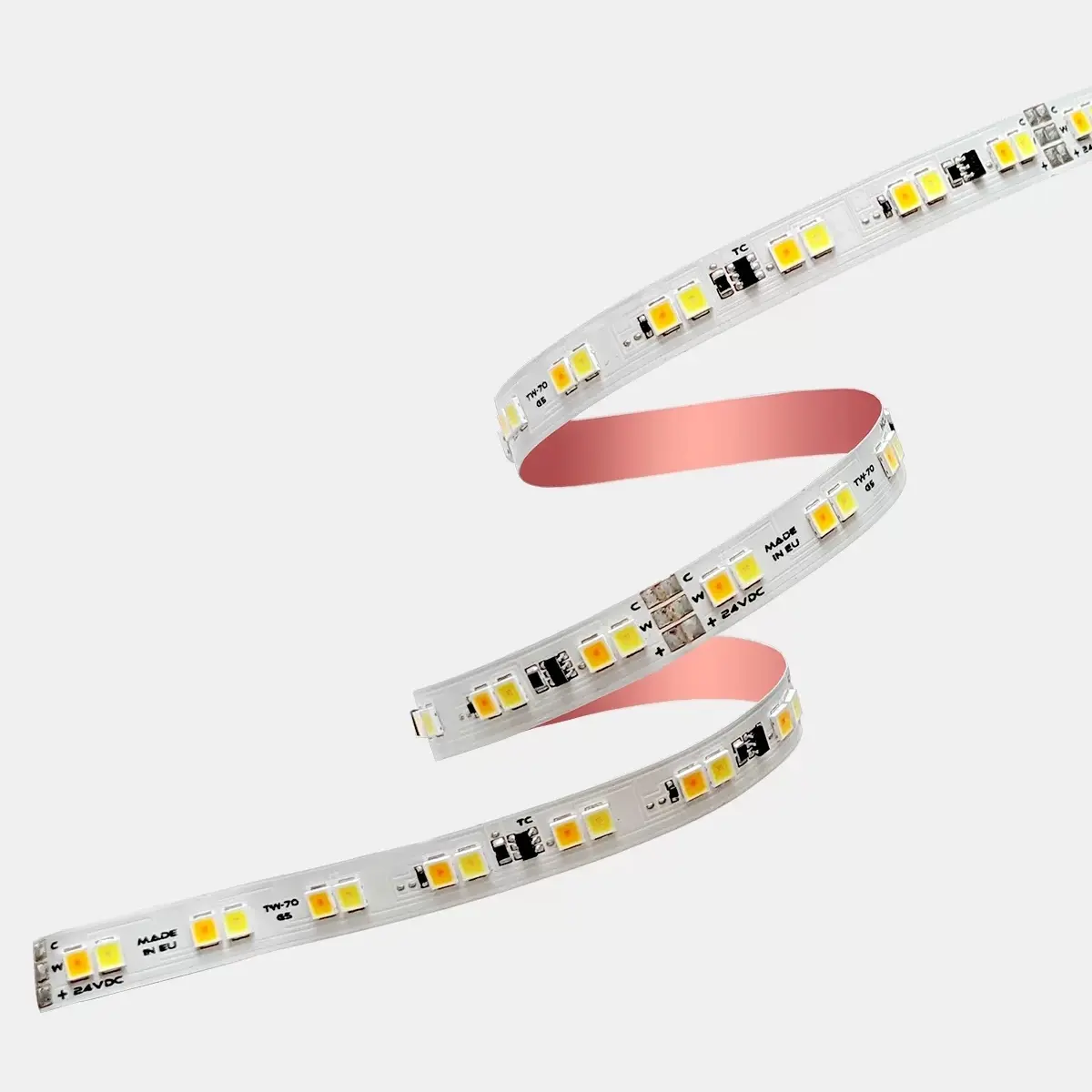

Architape Pro 70 TW delivers precise tuneable-white performance with 70 warm and 70 cool white Nichia LEDs per metre, offering smooth, controlled CCT adjustment for wellness-driven and circadian lighting designs.
When paired with suitable profiles, it produces homogenous illumination with no visible spotting, making it ideal for architectural coves, joinery elements, and high-lumen indirect lighting. A robust copper PCB, thermal conduction layer, and current stabilisation system ensure exceptional long-term reliability and colour stability.
From Warm Candlelight to Crisp Daylight
High-density 140 LEDs/m configuration engineered for spot-free continuous dynamic white lighting.
Ultra-warm candlelight tones ideal for evening winding down, hospitality lounges, and bedside joinery.
Warm domestic atmosphere suited for luxury residential spaces, hotel guest rooms, and dining environments.
Balanced neutral daytime lighting engineered for task focus, vanity mirrors, and modern office spaces.
High-energy circadian boost supporting daytime alertness, commercial display cases, and clinical accuracy.
Performance at a Glance
High-fidelity metrics for professional specification.
Available across 9.6W, 19.2W, 33.6W, and high-power 45.6W/m load options.
High luminous flux reaching up to 6885 lm/m for primary architectural illumination.
High optical efficacy providing energy-efficient circadian control.
Nichia LEDs with 3-Step MacAdam ellipse across all dynamic CCTs.
Precision Engineering
140 LEDs/m Interleaved Density
70 warm and 70 cool Nichia LEDs interleaved along the 8mm PCB produce immaculate homogenous output with no visible spotting in shallow architectural profiles.
Advanced Current Regulation
Integrated current stabilisation ensures identical luminous output across every segment with built-in reverse polarity protection guarding against on-site wiring errors.
Thermal Excellence
Thick double-sided copper PCB provides superior heat management across both high-output channels, extending LED lifespan (L90B10 > 60,000h).
Technical Overview
Product Dimensions
Detailed dimensional profile and 100mm cut interval specifications.
Frequently Asked Questions
What is the CCT tuning range and LED density of Pro 70 TW?
Pro 70 TW features 140 Nichia LEDs per metre (70 warm + 70 cool), providing smooth, high-density circadian CCT transitions from 1800K to 6500K with CRI 90 and CRI 95 rendering.
What is the cutting interval for Pro 70 TW?
Pro 70 TW features a 100mm cutting interval (7 warm + 7 cool LEDs per segment), enabling precise tailored lengths for architectural joinery and coves.
What run lengths can I achieve on a single feed?
On a 24V DC single electrical feed, Pro 70 TW supports continuous run lengths up to 9.0m at 9.6W/m, 5.5m at 19.2W/m, 3.0m at 33.6W/m, and 2.0m at 45.6W/m.
