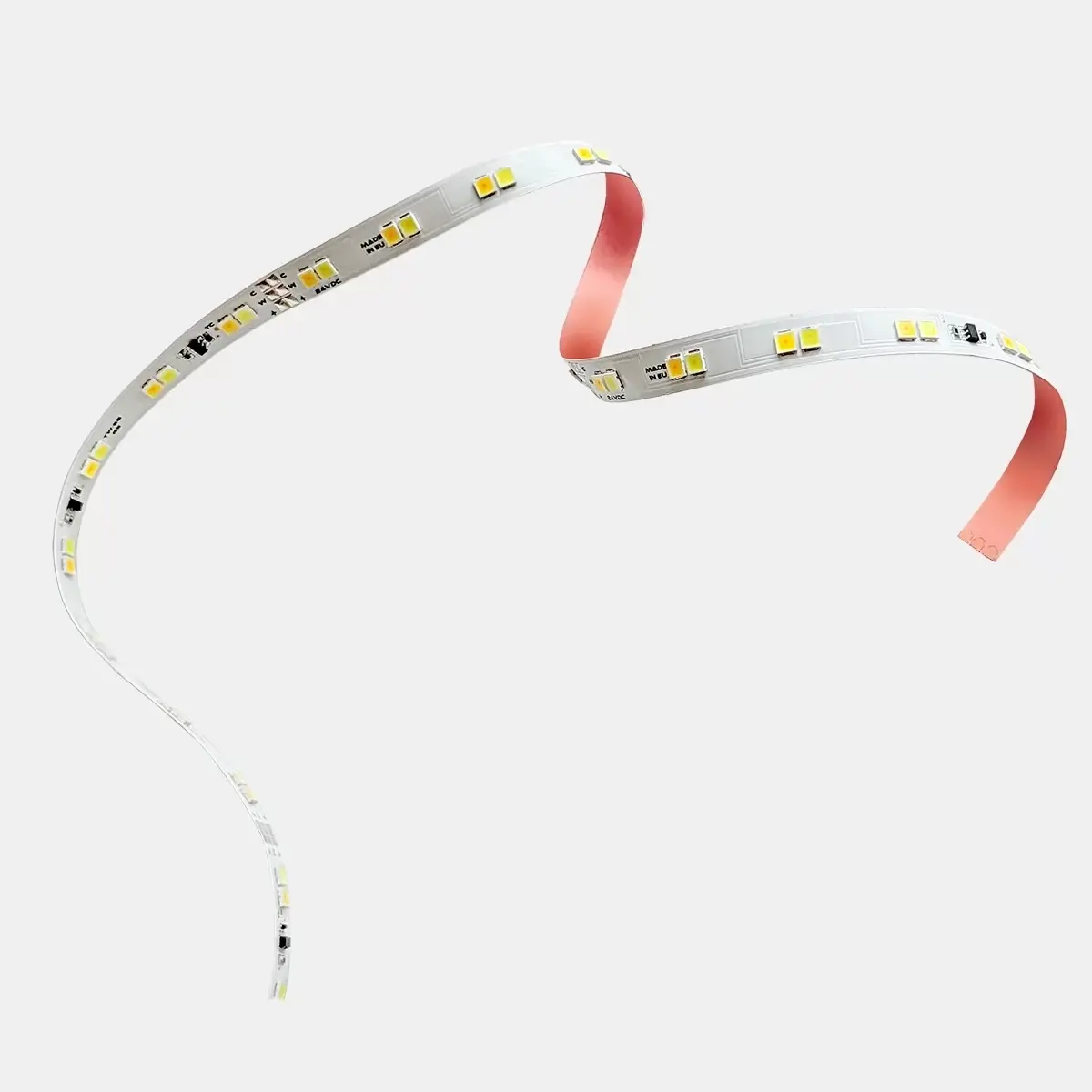

Architape Pro 50 TW is designed for human-centric and circadian-supportive lighting applications, offering 56 warm and 56 cool white Nichia LEDs per metre for smooth CCT transitions.
Its balanced density provides uniform indirect illumination, making it ideal for under-cabinet lighting, soft accents, and wellness-focused environments. A current stabilisation system, flexible 8mm copper PCB, and thermally conductive tape ensure stable performance, excellent thermal management, and long service life in continuous-use settings.
From Warm Candlelight to Crisp Daylight
Seamless CCT tuning spanning 1800K to 6500K with CRI 90 and CRI 95 color fidelity.
Ultra-warm candlelight tones ideal for evening winding down, hospitality lounges, and bedside joinery.
Warm domestic atmosphere suited for luxury residential spaces, hotel guest rooms, and dining environments.
Balanced neutral daytime lighting engineered for task focus, vanity mirrors, and modern office spaces.
High-energy circadian boost supporting daytime alertness, commercial display cases, and clinical accuracy.
Performance at a Glance
High-fidelity metrics for professional specification.
Available in 9.6W, 19.2W, and 33.4W/m full-load 24V DC options.
High combined output delivering potent tunable architectural illumination.
High optical efficacy providing energy-efficient circadian control.
Nichia LEDs with 3-Step MacAdam ellipse across all dynamic CCTs.
Precision Engineering
Dual-Channel Interleaved Diodes
56 warm and 56 cool Nichia LEDs interleaved along the 8mm PCB produce flawless near-field color blending without banding or chromatic shadows.
Advanced Current Regulation
Integrated current stabilisation ensures identical luminous output across every segment with built-in reverse polarity protection guarding against on-site wiring errors.
Thermal Excellence
Thick double-sided copper PCB provides superior heat management across both channels, extending LED lifespan (L90B10 > 60,000h).
Technical Overview

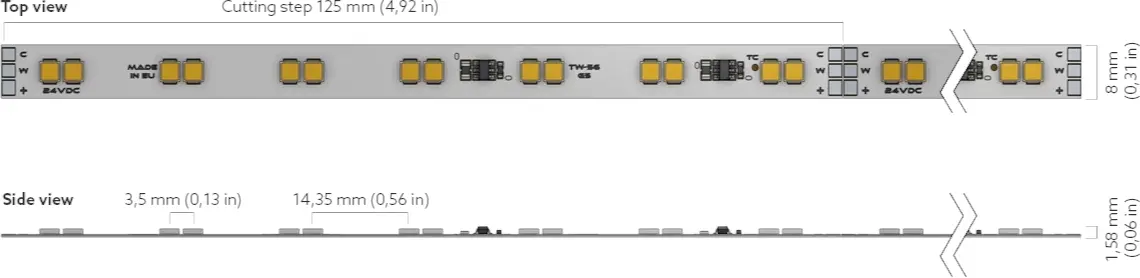

Product Dimensions
Detailed dimensional profile and 125mm cut interval specifications.
Frequently Asked Questions
What is the CCT tuning range for Pro 50 TW?
Pro 50 TW supports full architectural dynamic CCT transitions spanning 1800K candlelight warmth up to 6500K crisp daylight, with CRI 90 and CRI 95 rendering across the entire spectrum.
What control protocols are supported for dynamic white tuning?
Pro 50 TW integrates natively with DALI-2 (Type 8 / DT8 Tunable White), dual-channel 0-10V controllers, DMX512, and wireless Casambi systems for circadian schedules.
What run lengths can I achieve on a single feed?
On a 24V DC single electrical feed, Pro 50 TW supports continuous runs up to 8m at 9.6W/m, 4.5m at 19.2W/m, and 3m at 33.4W/m.
