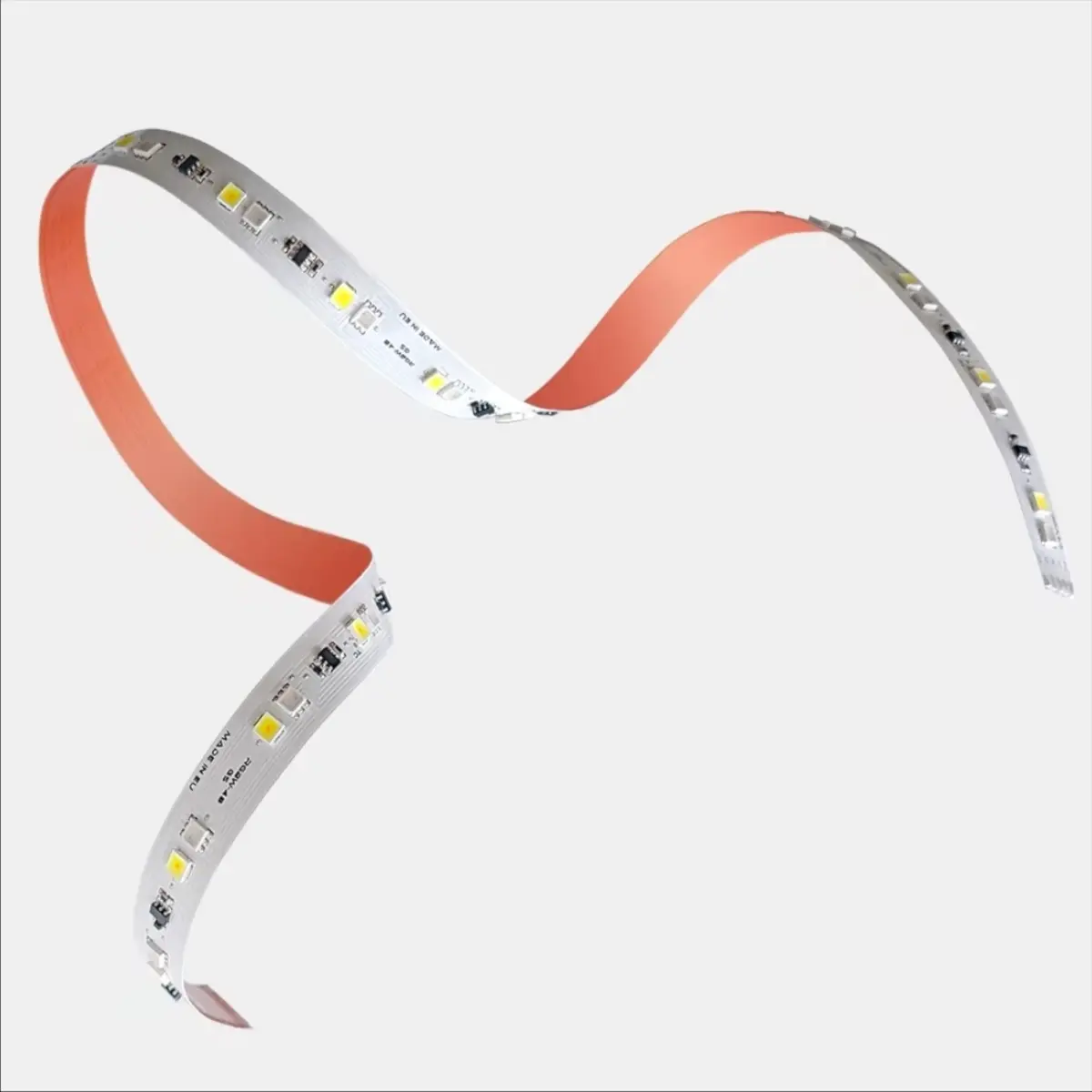

Architape Pro 50 RGBW combines 48 RGB + 48 architectural white Nichia LEDs per metre, enabling instantaneous transition between rich chromatic effects and true, high-fidelity white illumination.
Available with dedicated white channels spanning 1800K to 6500K with CRI 90 and CRI 95 rendering. Built on a thick copper PCB with advanced current stabilisation, it delivers dependable long-term performance for multi-purpose venues, hospitality, and dynamic architectural coves.
Vibrant Colour Plus Architectural White
Dedicated 3-in-1 Nichia RGB diodes paired alongside precision architectural white LEDs across 11 CCTs.
High-purity primary wavelengths (Red 620nm, Green 525nm, Blue 465nm) for saturated architectural colour-washing.
Dedicated high-CRI (90/95+) white diodes provide natural, task-capable white lighting without chromatic tinting.
Blend pure white into any RGB hue to create soft architectural pastels, delicate warm ambers, and clean tints.
Direct addressable control over all 4 channels via standard architectural control systems and Casambi nodes.
Performance at a Glance
High-fidelity metrics for professional specification.
Available in 9.6W, 14.4W, 19.2W, and 24W/m full-load 24V configurations.
Combined all-channel output delivering high architectural illumination.
Reaching up to 89 Lm/W when utilizing the dedicated white channel.
High-CRI white channel for natural material and architectural rendering.
Precision Engineering
Dual Diode Interleaved Pitch
48 Nichia 3-in-1 RGB diodes interleaved with 48 Nichia white LEDs per metre ensures seamless colour mixing and clean, uncorrupted white light.
Advanced Current Regulation
Integrated current stabilisation ensures uniform brightness across every segment with built-in reverse polarity protection guarding against on-site wiring errors.
Thermal Excellence
Thick double-sided copper PCB provides superior thermal dissipation across all 4 channels, extending LED lifespan (L90B10 > 60,000h).
Technical Overview

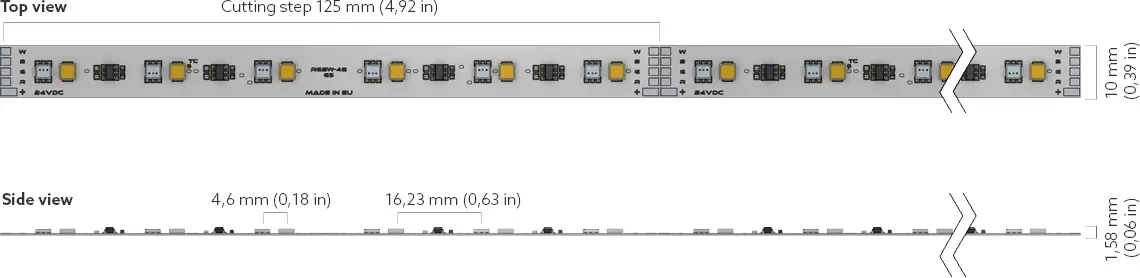

Product Dimensions
Detailed dimensional profile and 125mm cut interval specifications.
Frequently Asked Questions
How does RGBW differ from standard RGB LED tape?
Pro 50 RGBW includes dedicated architectural white Nichia LEDs (available from 1800K to 6500K with CRI 90/95+) alongside 3-in-1 RGB diodes, allowing pure, high-CRI white light without the pastel tint or poor color rendering of mixed RGB.
What control protocols are supported for Pro 50 RGBW?
Pro 50 RGBW is controlled via standard 4-channel DMX512, DALI-2 (Type 8 RGBW / Primary N), 0-10V RGBW modules, and Casambi Bluetooth mesh wireless nodes.
What run lengths can I achieve on a single feed?
On a 24V DC single electrical feed, Pro 50 RGBW supports continuous run lengths up to 8m at 9.6W/m, 7m at 14.4W/m, 5.5m at 19.2W/m, and 5m at 24W/m.
Featured Installations
Discover how Architape Pro series is engineered into landmark architectural projects.
Configure Your Pro 50 RGBW Series
Explore every available configuration of the Pro 50 RGBW Series series.
Start Your Specification
Access the full range of photometrics, technical data sheets, and custom runs in our configuration tool.
