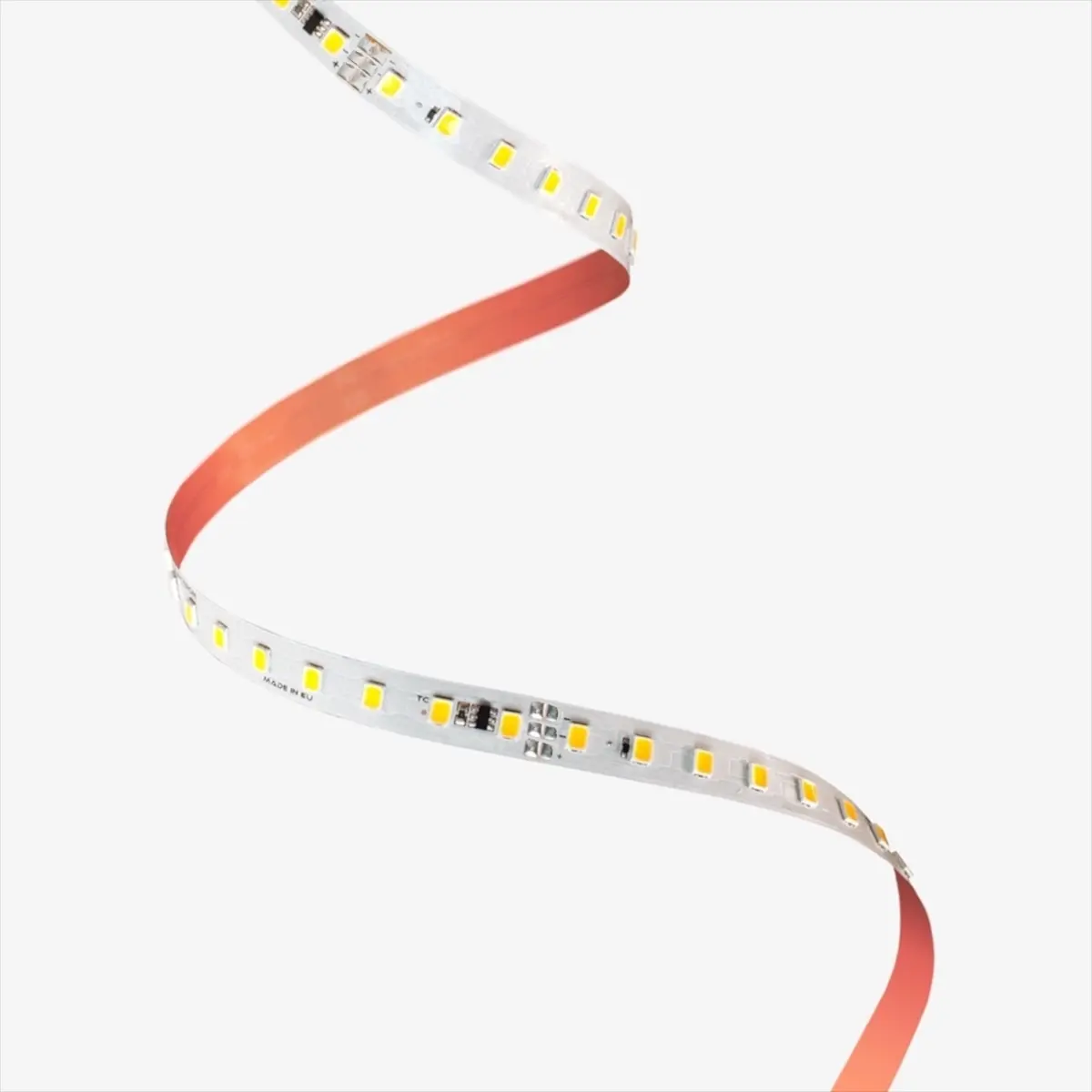

Architape Pro 100 TW features 112 tunable white Nichia LEDs per metre for high-resolution performance in professional, human-centric environments. When installed in suitable architectural profiles, it produces a continuous, homogenous line of light with seamless colour mixing across the entire 2700K to 6500K Kelvin range.
Engineered with a heavy-duty copper PCB, premium Nichia emitters, and advanced current regulation, Pro 100 TW delivers exceptional luminous outputs up to 6,462 lm/m and high system efficacy up to 140 Lm/W with stable color accuracy across long architectural runs.
From Warm Living Light to Crisp Daylight
Dynamic 2700K to 6500K Kelvin range to align interior illumination with natural circadian rhythms.
Comforting golden warmth engineered for evening relaxation, hotel guestrooms, dining areas, and residential joinery.
Balanced neutral daylight tone ideal for contemporary galleries, conference suites, corporate workplaces, and general retail.
High-energy cool daylight supporting alertness, focus, healthcare tasks, and precision architectural display cases.
Automated multi-channel colour temperature tracking throughout the day with smooth, flicker-free dimming.
Performance at a Glance
High-fidelity metrics for professional specification.
24V DC architecture available in 9.6W, 19.2W, 33.6W, and 48W/m models.
High-output Nichia package delivering immense output across all Kelvin steps.
Industry-leading tunable white efficiency with reduced thermal load.
Consistent colour rendering across the full 2700K to 6500K tuning range.
Precision Engineering
Advanced Current Regulation
Integrated current stabilisation ensures uniform brightness and balanced dual-channel CCT mixing across every segment, preventing colour drifting over long linear runs.
Thermal Excellence
Thick double-sided copper PCB provides superior heat management, extending LED lifespan (L90B10 > 60,000h) even under high 48W/m continuous operation.
Seamless Homogeneity
112 LEDs/m density combined with 62.5mm cutting intervals achieves flawless optical blending and dot-free illumination when installed in slim profiles.
Technical Overview

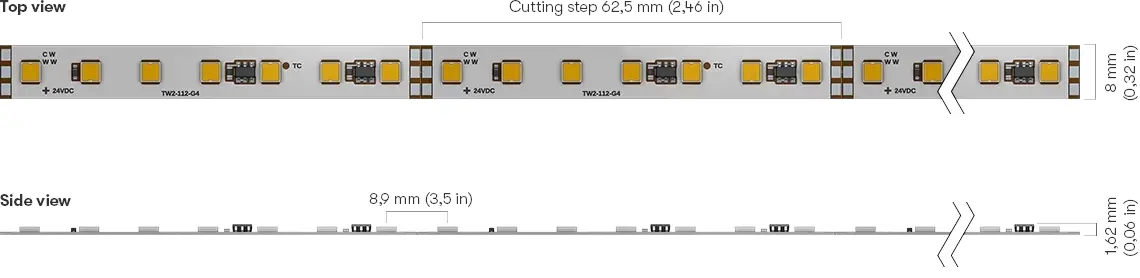

Product Dimensions
Detailed dimensional profile and 62.5mm cut interval specifications.
Frequently Asked Questions
How is Pro 100 TW controlled for Tunable White adjustments?
Pro 100 TW utilizes dual-channel 24V common anode wiring compatible with DALI-2 DT8 (Device Type 8) drivers, DMX decoders, 0–10V dual dimmers, and Casambi wireless controllers for synchronised CCT tuning and brightness control.
What is the maximum run length on a single electrical feed?
Depending on wattage, Pro 100 TW supports single-feed runs up to 10.5m at 9.6W/m, 7.0m at 19.2W/m, 4.5m at 33.6W/m, and 3.5m at 48W/m before requiring additional power feeds.
What LED technology and diode density does this tape feature?
Pro 100 TW is populated with 112 premium Nichia LEDs per metre on a heavy-duty copper PCB, delivering up to 6,462 lm/m with high efficacy (up to 140 Lm/W) and an L90B10 lifespan exceeding 60,000 hours.
