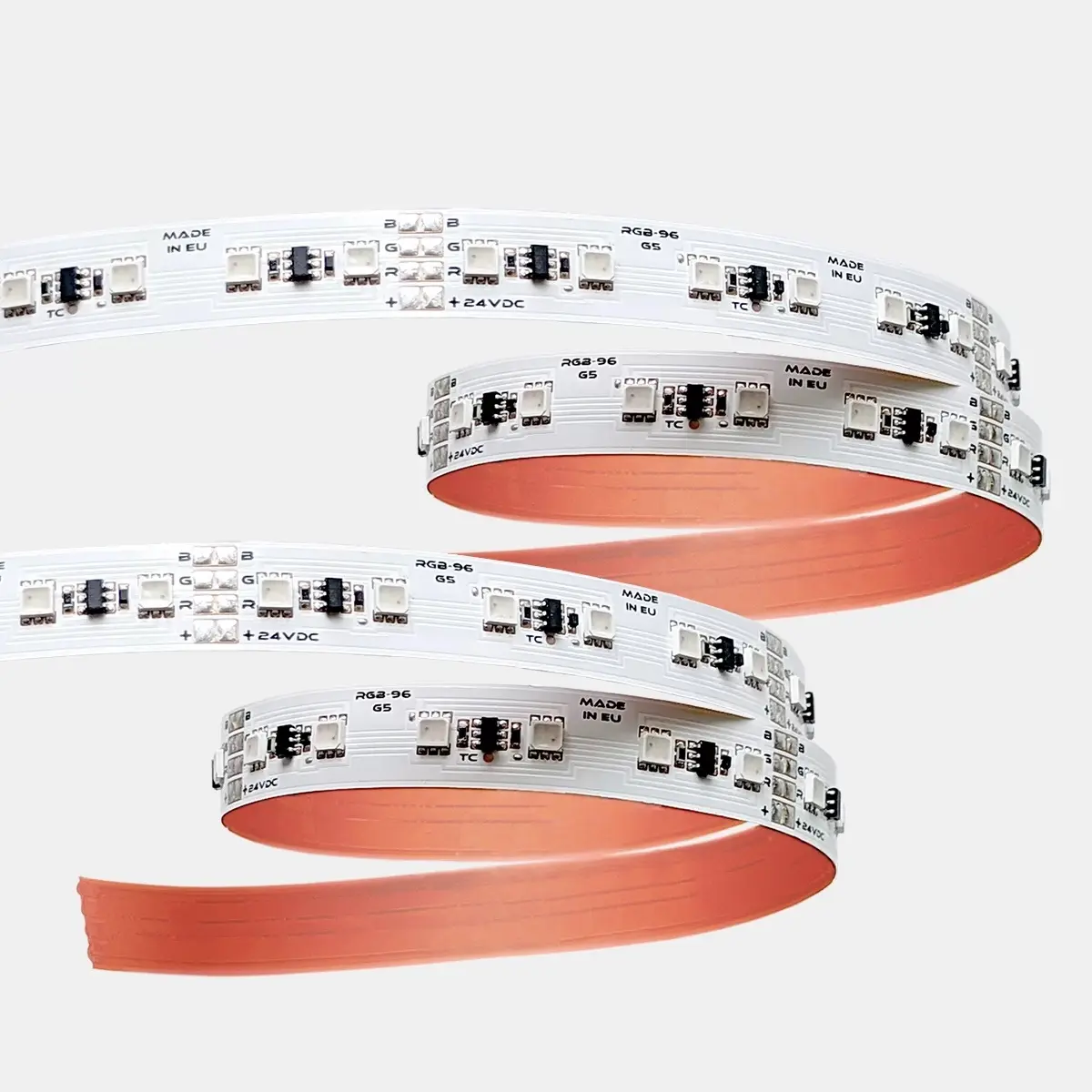

Architape Pro 100 RGB delivers high-resolution dynamic colour performance with 96 Nichia RGB LEDs per metre, offering exceptional brightness and smooth optical blending for both feature architectural lighting and large-scale colour installations. When paired with suitable profiles, it produces a seamless, homogenous line of light without visible diode spotting.
Built on a heavy double-sided copper PCB with regulated current control, Pro 100 RGB ensures consistent colour saturation, long-term stability, and uniform brightness across extended runs. Designed for precision integration with DMX512, DALI-2, and wireless architectural control systems.
Full-Spectrum RGB Architecture
Individual primary colour channels engineered for saturated single hues and infinite multi-scene colour transitions.
High-intensity monochromatic red wavelength for dramatic architectural warmth, sunset scenes, and bold accentuation.
Pure emerald green emitter delivering high luminous efficacy for biophilic design accents and vivid spatial themes.
Deep royal blue channel creating atmospheric evening washes, nocturnal environments, and cool delineation.
Seamless multi-channel blending across the full visible spectrum with smooth 0.1% dimming curves and colour crossfades.
Performance at a Glance
High-fidelity metrics for professional specification.
24V DC constant voltage architecture with 11.5W, 14.4W, and 23W/m options.
High-output full-gamut RGB luminous flux with smooth linear diffusion.
Optimized colour blending efficiency with low thermal PCB dissipation.
96 Nichia tri-colour emitters/m for homogenous colour without optical separation.
Precision Engineering
Advanced Current Regulation
Integrated current stabilisation ensures uniform brightness and saturated colour balance across every single module segment, protecting against voltage drop on longer linear lengths.
Thermal Excellence
Thick double-sided copper PCB provides superior heat management, extending LED lifespan (L90B10 > 60,000h) and preserving diode wavelength integrity.
Smooth Colour Homogeneity
A tight 96 LEDs/m pitch combined with 62.5mm cutting steps ensures clean, spotless colour blending when installed behind opal diffusers.
Technical Overview

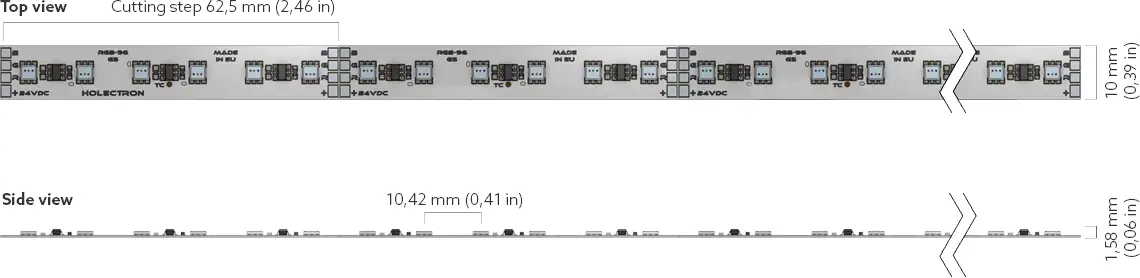

Product Dimensions
Detailed dimensional profile and 62.5mm cut interval specifications.
Frequently Asked Questions
How is Pro 100 RGB controlled across dynamic lighting schemes?
Pro 100 RGB is fully compatible with standard 24V common anode PWM decoders, including DMX512, DALI-2 (Type 8 / Multi-Channel), Casambi wireless, and 0-10V architectural controllers for seamless scene setting and smooth 0.1% dimming.
What maximum run lengths can be achieved on a single feed?
Depending on the power configuration, Pro 100 RGB supports single-feed runs up to 9.5m at 11.5W/m, 8m at 14.4W/m, and 5.5m at 23W/m without visible colour shift or voltage drop.
What profile depth is recommended for a spotless continuous line?
With 96 LEDs per metre, a profile depth of 12mm or deeper with an opal diffuser achieves complete dot-free homogeneity and flawless linear colour blending.
