Indoor LED Tape

Pro 100 Series

Architape Pro 100 is our flagship architectural linear tape system engineered with 112 premium Nichia LEDs per metre, spanning 24V standard runs, 48V extended runs, Tuneable White, RGB, and Pixel addressable options.

Configure Model Series Book Contact Sales

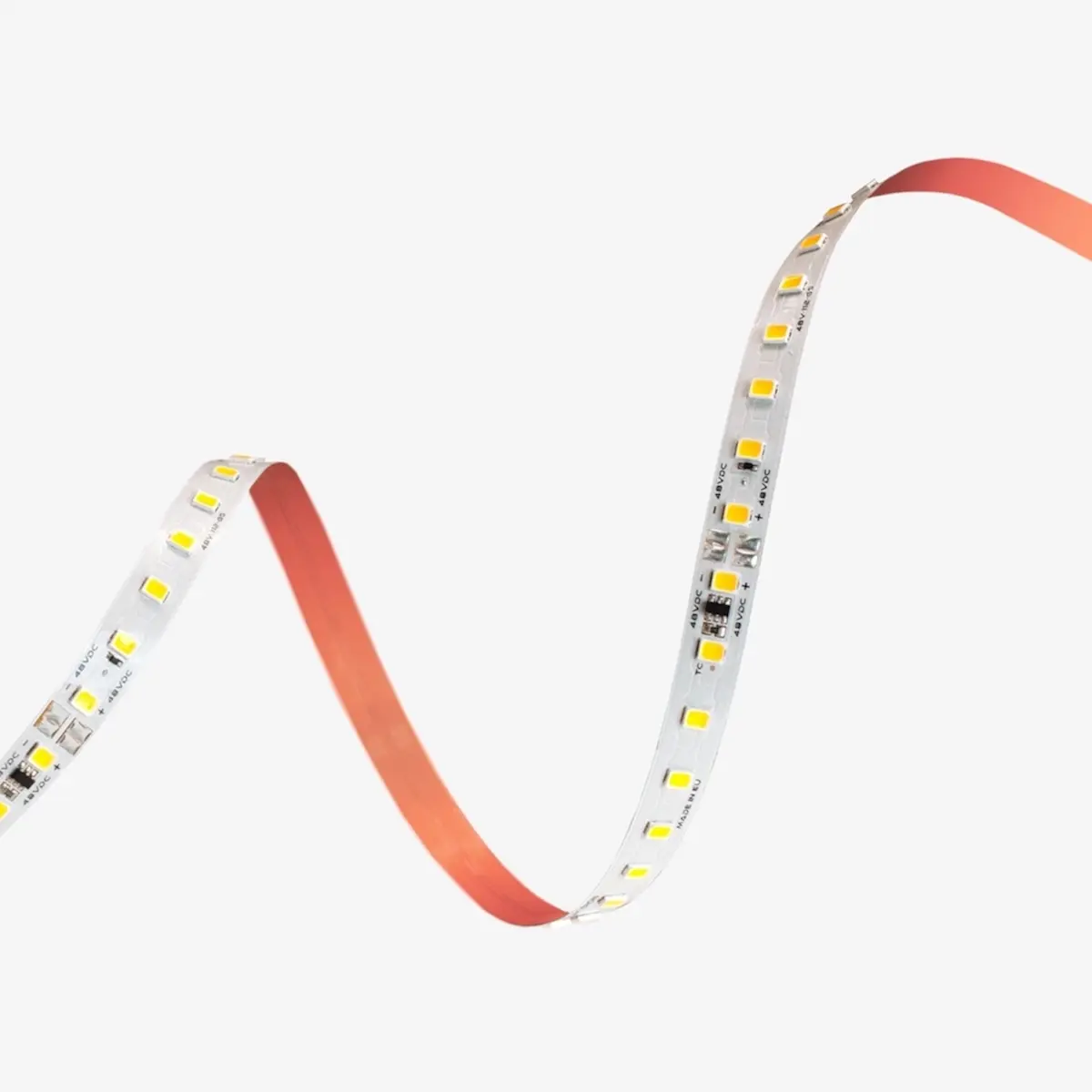

Pro 100 Single Colour Series
Power Options
4.8 W/m - 33.6 W/m

24V DC architecture available in 4.8W, 9.6W, 14.4W, 19.2W, 24W, and 33.6W/m.

Luminous Flux
125 lm/m - 5119 lm/m

High-output Nichia emitters delivering immense photometric efficiency.

Max Efficacy
25 Lm/W - 160 Lm/W

Optimised thermal efficiency reaching up to 160 Lm/W on architectural white.

Colour Fidelity
CRI 90 / CRI 95 (R9>90)

High-fidelity colour rendering for colour-critical retail, hospitality, and residential spaces.

Configuration Matrix

Five Ways to Specify Pro 100

Single Colour, Tuneable White, RGB, and Pixel — five optical and electrical configurations, with their dimensional profiles and cutting intervals, all built on the same 112 LEDs/m Nichia platform.

24V Standard

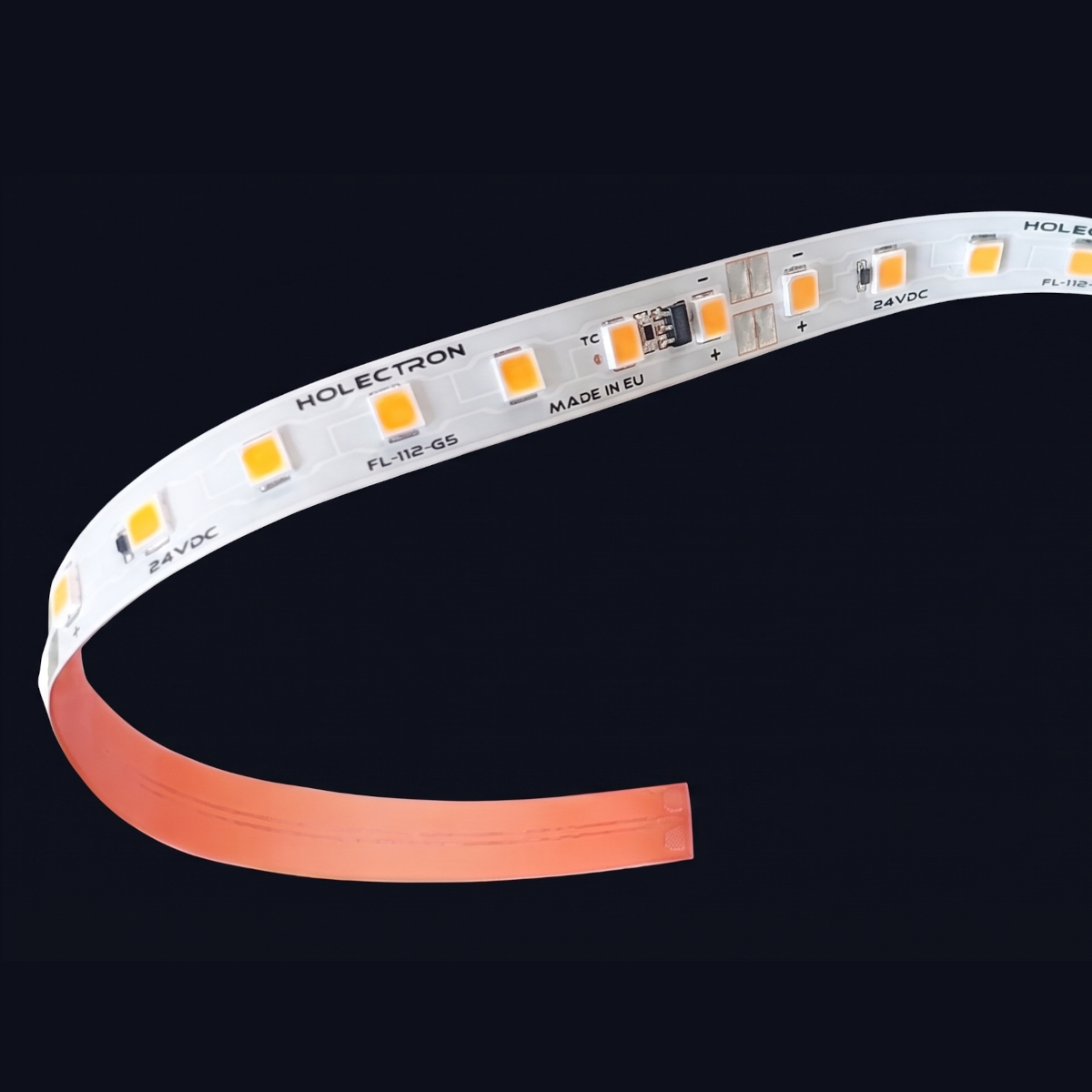

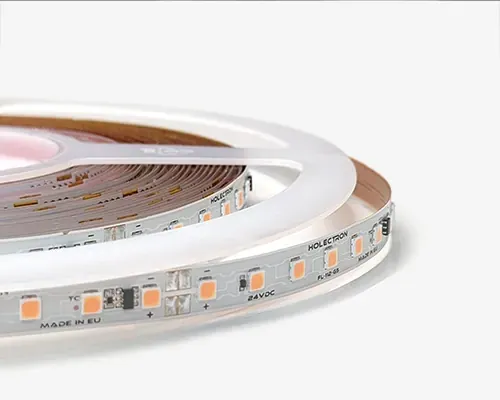

Pro 100 Single Colour 24V

Single Colour 24V

Benchmark linear tape with 11 CCTs (1800K–6500K) and saturated colours, CRI 90/95+, and 62.5mm cutting intervals.

Max Run
13 m
Power
4.8 – 33.6 W/m

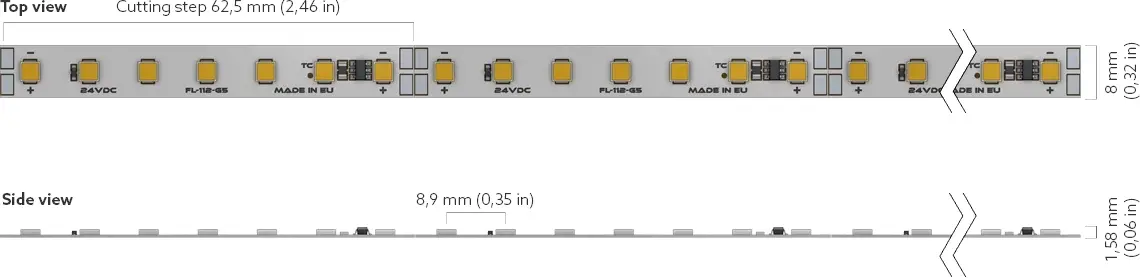

Pro 100 Single Colour Dimensions
8.0 mm width · 62.5 mm cut interval · 7 LEDs/segment Standard 2-pad (+ / -) solder terminal
48V Extended Run

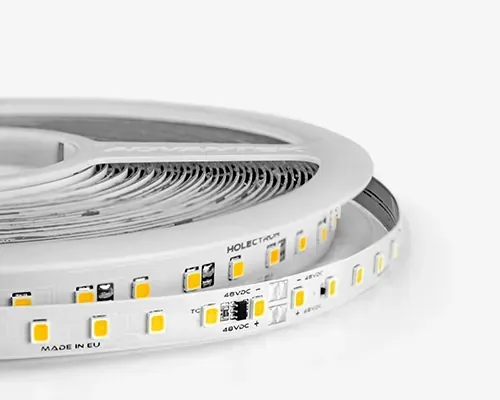

Pro 100 48V Long Run

Single Colour 48V

Engineered for extra-long uninterrupted runs up to 28.5m from a single electrical feed with zero voltage drop or lumen fading.

Max Run
28.5 m
Power
4.8 – 19.2 W/m
Pro 100 48V Dimensions
8.0 mm width · 125.0 mm cut interval · 14 LEDs/segment 48V high-voltage trace architecture
Tuneable White

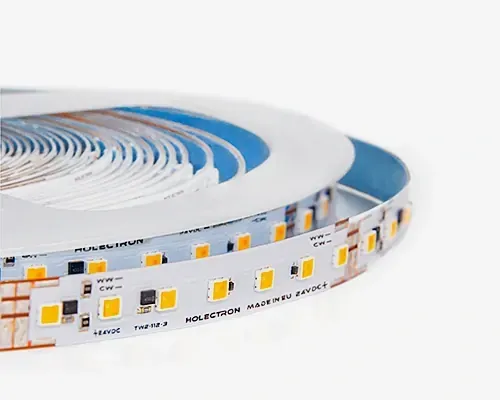

Pro 100 Tuneable White

Pro 100 TW

Dual-channel dynamic white tape tuning seamlessly from 2700K warm candle glow to 6500K crisp daylight for circadian lighting.

Max Run
7 m
Power
9.6 – 19.2 W/m

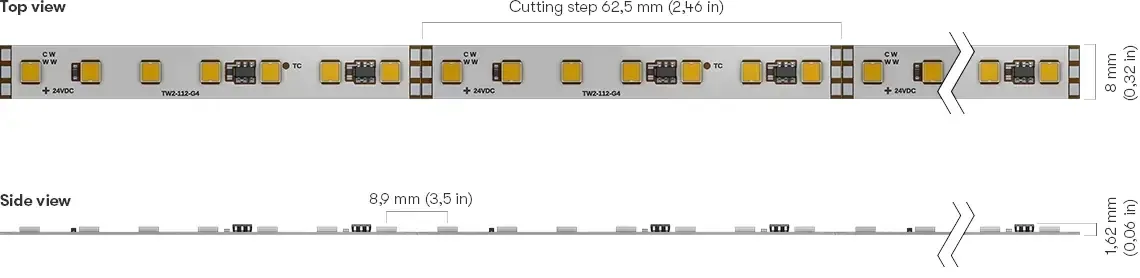

Pro 100 TW Dimensions
8.0 mm width · 62.5 mm cut interval · Dual-die WW/CW 3-pad (+ / WW / CW) independent control
Full Spectrum RGB

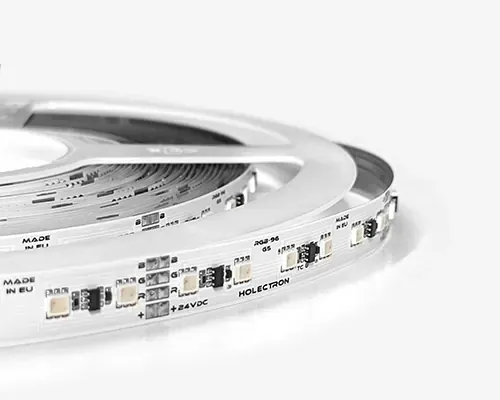

Pro 100 RGB

Pro 100 RGB

Vibrant tri-colour RGB LEDs delivering rich saturated hues and smooth architectural colour-mixing effects in hospitality and coves.

Max Run
11 m
Power
14.4 W/m

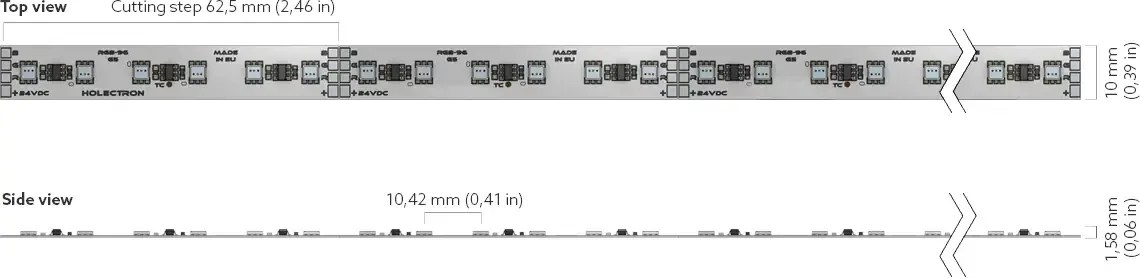

Pro 100 RGB Dimensions
8.0 mm width · 125.0 mm cut interval · Tri-colour emitters 4-pad (+ / R / G / B) PWM dimming
Digital Pixel

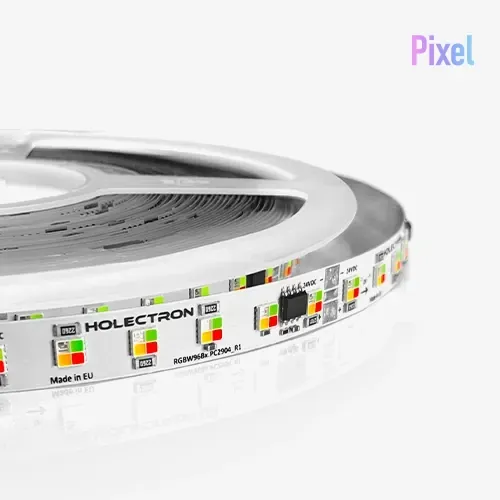

Pro 100 Pixel

Pro 100 Pixel

Individually addressable LED segments with integrated SPI control ICs for dynamic media chases, waves, and bespoke animations.

Max Run
8 m
Power
14.4 W/m
Pro 100 Pixel Dimensions
8.0 mm width · 125.0 mm cut interval · Integrated SPI ICs 3-pad (+ / DATA / GND) digital bus
Series Book (PDF) IES / LDT (per variant)

Configure Your Pro 100 Series

Explore every available configuration of the Pro 100 Series.

Real-World Specification

Recent Projects

Discover how Architape Pro 100 series is engineered into landmark architectural projects.

All Projects
Artists' Bar, Royal Albert Hall
Royal Albert Hall, London · BDP

Artists' Bar, Royal Albert Hall

How Architape Opaline Flex, PRO 100 TW/RGB and recessed step luminaires bring warm, tuneable light to the Royal Albert Hall's Artists' Bar after its BDP refit.

Read Case Study
Lily Nails Spa, Westfield
Westfield London, White City · Design Clarity

Lily Nails Spa, Westfield

Three sculptural lily pendant luminaires for Lily Nails Spa, Westfield London – designed by Design Clarity, engineered by Architape with micro Opaline Flex.

Read Case Study
Canal Turn, Island Quarter Nottingham
The Island Quarter, Nottingham · Jestico + Whiles

Canal Turn, Island Quarter Nottingham

Studio Fractal specified 2500K IP67 Architape Opaline M and L to light Canal Turn, the first phase of Nottingham's Island Quarter by Jestico + Whiles.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What run lengths can I achieve with 24V Pro 100?

On a standard 24V single feed, Pro 100 achieves up to 13m continuous run lengths at 4.8W/m, 8m at 9.6W/m, and 3.5m at 33.6W/m without compromising output uniformity.

What is the difference between Pro 100 24V and Pro 100 48V?

While both feature identical 112 Nichia LEDs/m and high-CRI optics, the 24V series is optimised for standard architectural installations and tight 8mm profiles, whereas the 48V series is engineered for extra-long runs where voltage drop across large continuous distances is the primary concern.

What colour temperatures and CRI options are available?

Pro 100 is available in 11 architectural white colour temperatures (1800K to 6500K) with CRI 90 and CRI 95 (R9>90) colour rendering, as well as saturated red, green, and blue monochromatic channels.

Which light colour options are available for Pro 100?

Pro 100 is available as Single Colour, Tunable White, RGB and Pixel.

What power options are available for Pro 100?

Pro 100 is offered from 4.8 to 48 W/m across 10 output levels and runs on 24V DC and 48V DC, so you can balance brightness against run length and driver sizing.

How efficient is Pro 100?

Efficacy reaches up to 160 lm/W, depending on the colour temperature, CRI and output selected. Coloured and tunable variants sit lower in the range. Exact figures for each SKU are on its datasheet.

What IP rating does Pro 100 have?

Pro 100 is rated IP20 and operates from -25°C to +50°C. It is intended for dry indoor locations; choose an outdoor or IP-rated version for damp or exposed areas.

What is the lifetime and warranty of Pro 100?

Pro 100 has a rated LED lifetime of L90B10 > 60,000 hours and L70B10 > 50,000 hours and is backed by a 5-year warranty.
