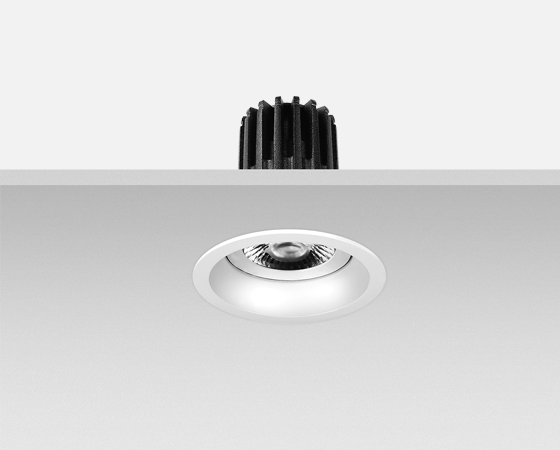

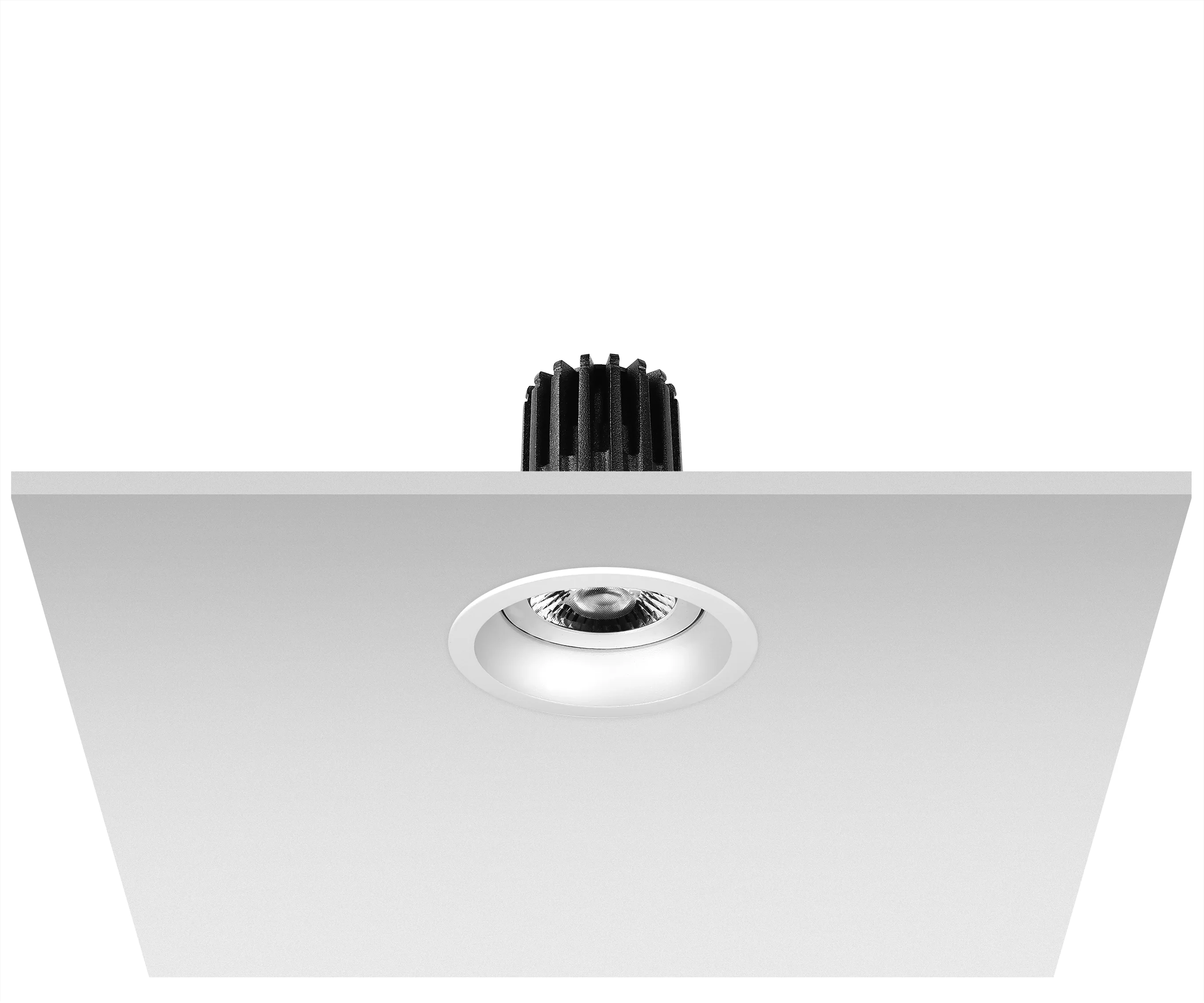

ADL C Deep Tilt combines the visual comfort of a deeply recessed optical chamber with 30° directional tilt articulation, allowing lighting designers to precisely highlight vertical surfaces and architectural features without causing overhead glare.
Its concealed mechanical gimbal mechanism maintains a clean ceiling aesthetic while offering flexible aiming. Built with a robust die-cast aluminum heat sink for passive thermal control, the fitting ensures reliable operation (L90B10 > 60,000h). Emergency lighting ready with an optional battery conversion kit.
Adjustable Directional Optics
Precision TIR lenses coupled with an internal 30° tilt gimbal mechanism for accurate aiming.
Tight beam for highlighting artwork, architectural sculptures, and vertical wall features.
Versatile beam for perimeter grazing, display joinery, and task illumination.
Smooth flood distribution for expansive wall washing and open display areas.
Available Colour Temperatures
Architectural white light options engineered for superior visual comfort.
Reflector & Housing Finishes
Architectural finish combinations providing seamless ceiling integration.
Performance at a Glance
High-fidelity photometric metrics for architectural specification.
Available in 9W and 13W configurations with remote constant-current driver.
Potent adjustable luminous output with deep glare cut-off.
High optical efficiency combined with precision directional aiming.
High color fidelity options available across all architectural CCTs.
Precision Engineering
Visual Comfort & Low Glare
Deep-set LED architecture and anti-glare secondary baffles ensure soft cut-off angles (UGR < 13) for premium visual comfort.
Die-Cast Aluminium Thermal Engine
High-conductivity die-cast aluminium housing provides passive cooling without fans, maximizing LED operating life (L90B10 > 60,000h).
Multi-Protocol Dimming & Emergency
Compatible with Phase, 0-10V, DALI-2, and wireless Casambi control systems, with optional 3-hour emergency battery backup integration.

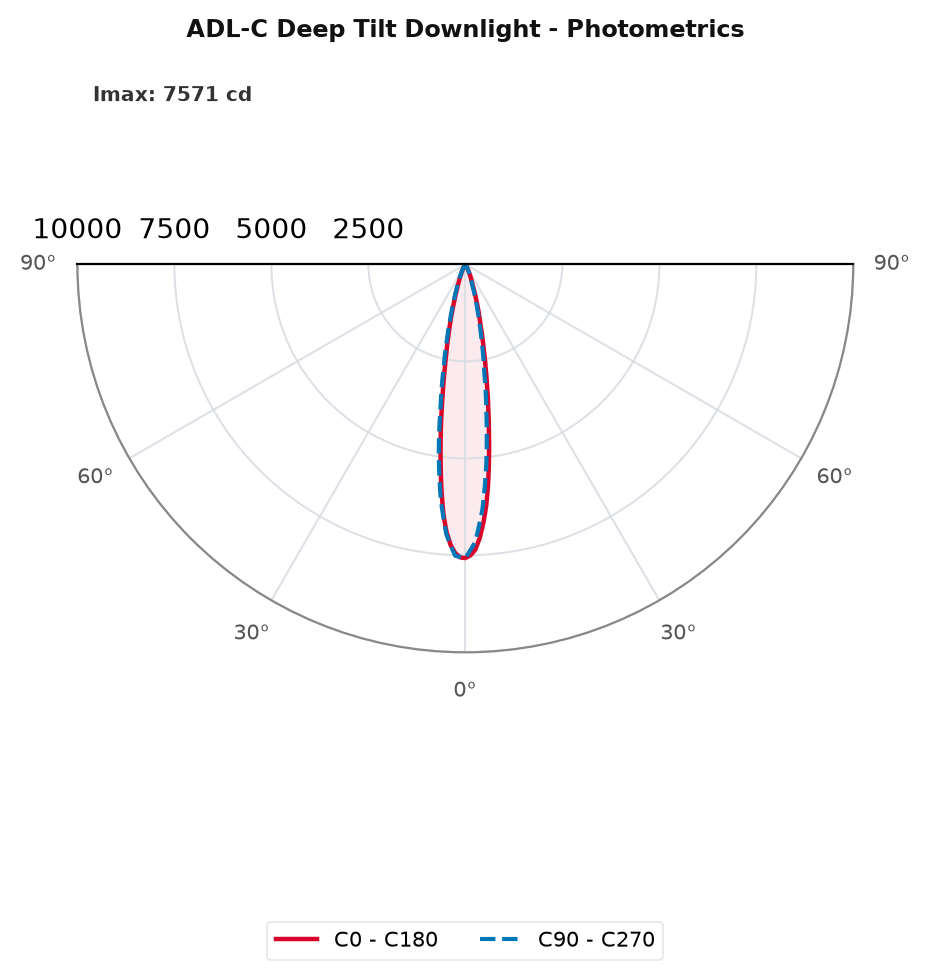

Photometric Overview

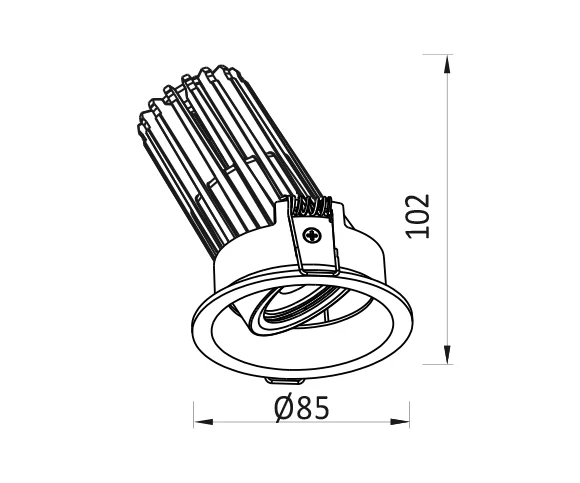

Product Dimensions
Detailed dimensional drawings and installation specifications.
Frequently Asked Questions
How much tilt adjustment does the ADL C Deep Tilt provide?
The fixture features a smooth 30° directional tilt mechanism, allowing precise beam placement on artwork, vertical display walls, or task surfaces.
Does tilting the fixture cause unwanted ceiling glare?
No, the deep optical chamber and specialized baffle retain a high cut-off angle even when tilted, maintaining superior glare control and visual comfort.
What driver and dimming options are available?
Compatible with standard Phase dimming, 0-10V, DALI-2 addressable systems, and wireless Casambi Bluetooth control.
Featured Installations
Discover how Architape luminaires are engineered into landmark architectural projects.
Configure Your ADL C Deep Tilt Downlight
Explore every available configuration of the ADL C Deep Tilt Downlight series.
