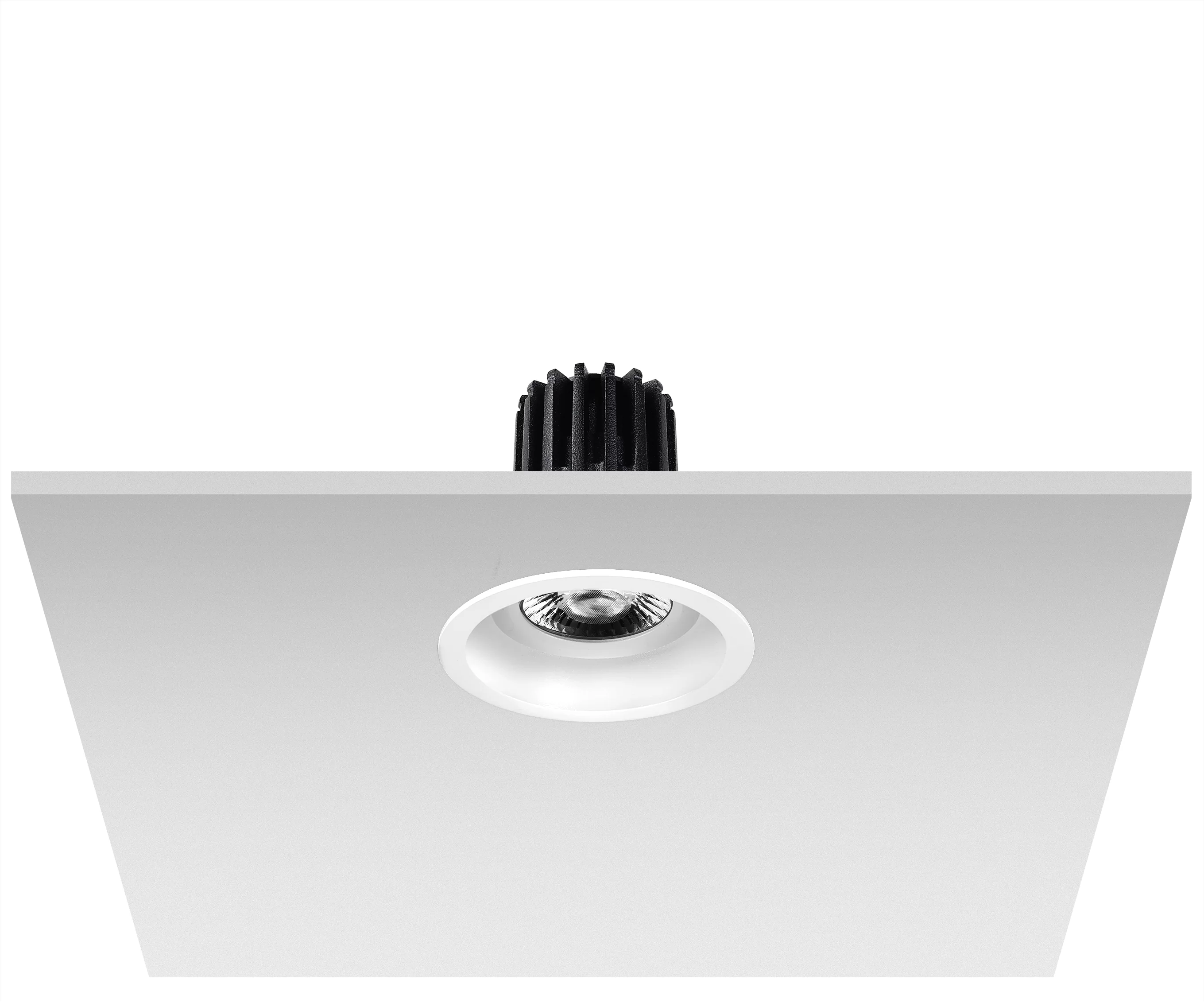

ADL C Deep enhances visual comfort with its deeply recessed light source and advanced low-glare optical geometry, making it perfect for environments where a refined, discreet ceiling appearance is essential.
The deep optical chamber creates soft cut-off angles (UGR < 13) and minimises direct lamp visibility, supporting luxury commercial, hospitality, and residential spaces. A die-cast aluminum heat sink ensures passive thermal dissipation and long service life (L90B10 > 60,000h). Emergency lighting capable with the addition of an optional 3-hour battery pack.
Precision Beam Distributions
Interchangeable high-efficiency optical systems designed for precise accent and ambient control.
Concentrated accentuation highlighting artwork, architectural textures, and feature displays.
Balanced general illumination ideal for hospitality, residential dining, and executive suites.
Broad, uniform ambient light coverage for open-plan living, retail, and public circulation areas.
Available Colour Temperatures
Architectural white light options engineered for superior visual comfort.
Reflector & Housing Finishes
Customizable finish pairings engineered to integrate seamlessly into any ceiling aesthetic.
Performance at a Glance
High-fidelity photometric metrics for architectural specification.
Available in 9W and 13W configurations with remote constant-current driver.
High luminous output with soft optical cut-off and low glare.
High optical efficiency combined with deep anti-glare comfort.
High color fidelity options available across all architectural CCTs.
Precision Engineering
Visual Comfort & Low Glare
Deep-set LED architecture and anti-glare secondary baffles ensure soft cut-off angles (UGR < 13) for premium visual comfort.
Die-Cast Aluminium Thermal Engine
High-conductivity die-cast aluminium housing provides passive cooling without fans, maximizing LED operating life (L90B10 > 60,000h).
Multi-Protocol Dimming & Emergency
Compatible with Phase, 0-10V, DALI-2, and wireless Casambi control systems, with optional 3-hour emergency battery backup integration.
Photometric Overview

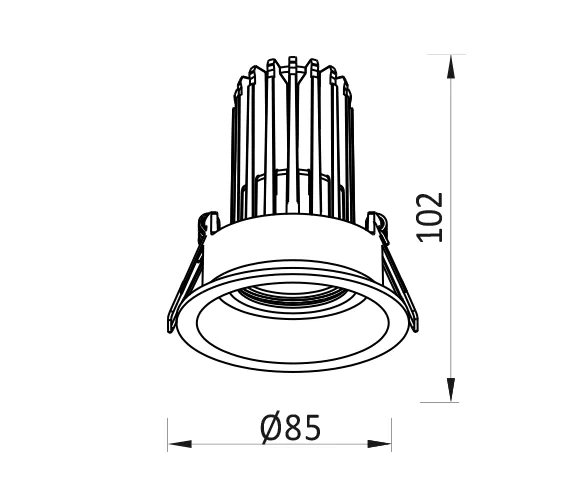

Product Dimensions
Detailed dimensional drawings and installation specifications.
Frequently Asked Questions
What glare rating does the ADL C Deep achieve?
Thanks to its deeply recessed LED engine and secondary black or specular baffle options, ADL C Deep achieves an ultra-low glare rating of UGR < 13 for superior visual comfort.
Can ADL C Deep be specified with emergency battery kits?
Yes, an optional 3-hour emergency conversion battery pack is available for maintained and non-maintained architectural emergency lighting requirements.
What beam angles and dimming protocols are supported?
ADL C Deep supports L20 (20°), L30 (30°), and L50 (50°) optics, compatible with Phase-cut, 0-10V, DALI-2, and wireless Casambi drivers.
