Architape Opaline Extreme Heavy-Duty IP67 Luminaire

Configure Series PDF Contact

Power Options

24V DC Architecture

Engineered for architectural efficiency and clean thermal performance.

Luminous Flux

High Lumen Packages

Uniform delivery with minimal glare and superior colour consistency.

System Efficacy

Up to 130+ lm/W

Sustainable, durable outdoor operation (L90B10 > 60,000h).

Colour Rendering

CRI 90+

True-to-life architectural rendering across all colour temperatures.

Configuration Matrix

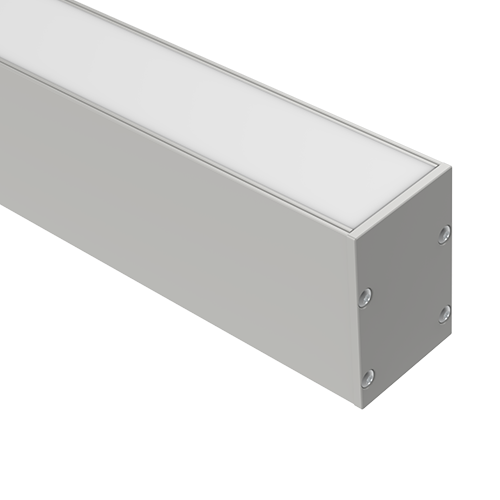

Architape Opaline Extreme Outdoor Luminaire Series Configurations & Dimensions

Engineered for architectural exterior applications with Nichia emitters, multiple optical covers, and precision beam angles for building profiles, facades, and landscape accents.

Architape Opaline Extreme Outdoor Luminaire Series

Series Book (PDF) Data Sheets (per variant) IES / LDT (per variant)

Configure Your Architape Opaline Extreme Outdoor Luminaire Series

Explore every available configuration across all colour sub-families.

Real-World Specification

Recent Projects

Discover how Architape luminaires are engineered into landmark architectural projects.

All Projects

Clerkenwell, London · Jestico + Whiles

Fata Morgana, Clerkenwell Design Week 2023

An immersive light installation by Jestico + Whiles, Notpla and Studio Fractal at Clerkenwell Design Week 2023, lit with Architape Opaline RGB.

Read Case Study

Clerkenwell, London · Jestico + Whiles

LUMEN DRIFT, Clerkenwell Design Week 2025

Jestico + Whiles and Studio Fractal created LUMEN DRIFT for Clerkenwell Design Week 2025, a dynamic light installation using Architape Opaline Flex RGB.

Read Case Study

Clerkenwell, London

Pareidolia, Clerkenwell Design Week 2019

45 freestanding fins and 135 concealed Architape Opaline RGB luminaires create soft, indirect colour gradients in Pareidolia at Clerkenwell Design Week 2019.

Read Case Study

Engineering FAQ

Frequently Asked Questions

What optical distributions are available?

Available with Opal diffusion for smooth continuous lines, Clear covers, and precision beam angles for dramatic exterior facade grazing.

What is the ingress protection and casing durability?

Engineered to IP67 exterior ingress protection standards with heavy-duty aluminium casing and UV-resistant solid polyurethane encapsulation.

What control systems are supported?

Compatible with 0-10V, DALI-2, DMX512 / RDM, digital SPI pixel protocols, and wireless Casambi systems.

What colour temperatures is Opaline Extreme available in?

Opaline Extreme is available in white colour temperatures from 1400K to 8000K, including tunable white versions that blend between a warm and a cool channel. Colour-changing RGBW, RGB and Pixel versions are also offered.

What colour rendering (CRI) does Opaline Extreme offer?

White versions of Opaline Extreme are offered at CRI 80 and CRI 90, giving accurate colour rendering for architectural and retail spaces.

Which light colour options are available for Opaline Extreme?

Opaline Extreme is available as Tunable White, Single Colour, RGBW, RGB and Pixel.

What power options are available for Opaline Extreme?

Opaline Extreme is offered from 1.2 to 26.1 W/m across 11 output levels and runs on 24V DC and 48V DC, so you can balance brightness against run length and driver sizing.

How efficient is Opaline Extreme?

Efficacy reaches up to 124 lm/W, depending on the colour temperature, CRI and output selected. Coloured and tunable variants sit lower in the range. Exact figures for each SKU are on its datasheet.

Start Your Specification

Access the full range of photometrics, technical data sheets, and custom configurations in our tool.

Open Configurator Request Sample
