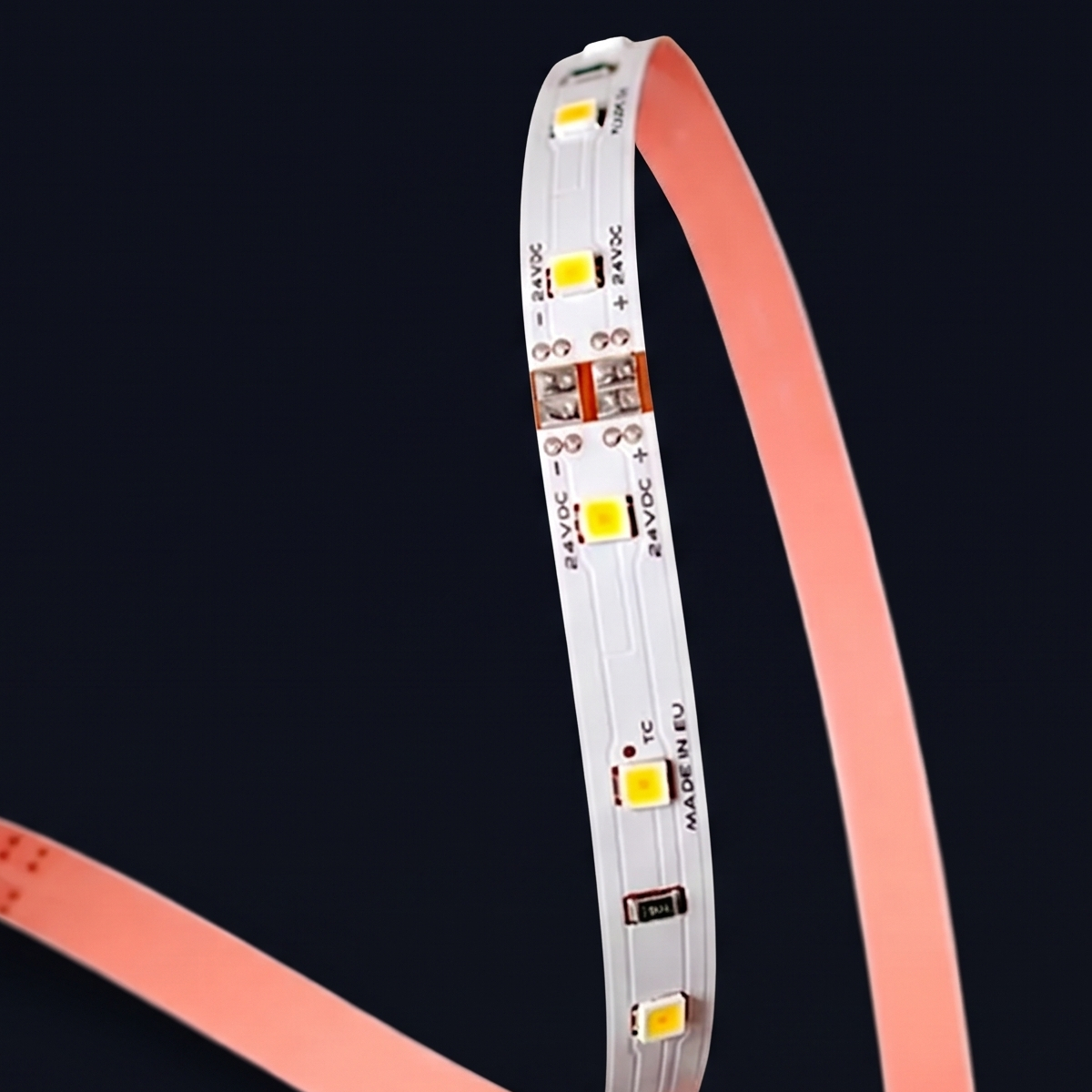

Pro 50 Single Colour Architectural LED Tape

Configure Series PDF Contact

Power Options

2.4 W/m - 33.4 W/m

24V DC architecture spanning Single Colour, TW, RGB, and RGBW power draws.

Luminous Flux

62 lm/m - 5071 lm/m

High-density Nichia package delivering flux across the full Pro 50 family.

Max Efficacy

26 Lm/W - 152 Lm/W

Optimised thermal efficiency reaching up to 152 Lm/W on architectural white.

Colour Fidelity

CRI 90 / CRI 95 (R9>90)

MacAdam ≤ 3-Step SDCM colour consistency across the full Pro 50 family.

Configuration Matrix

Four Ways to Specify Pro 50

The Pro 50 platform spans Single Colour, Tuneable White, RGB, and RGBW configurations on a shared 8mm profile, giving specifiers a unified flagship system for any architectural application.

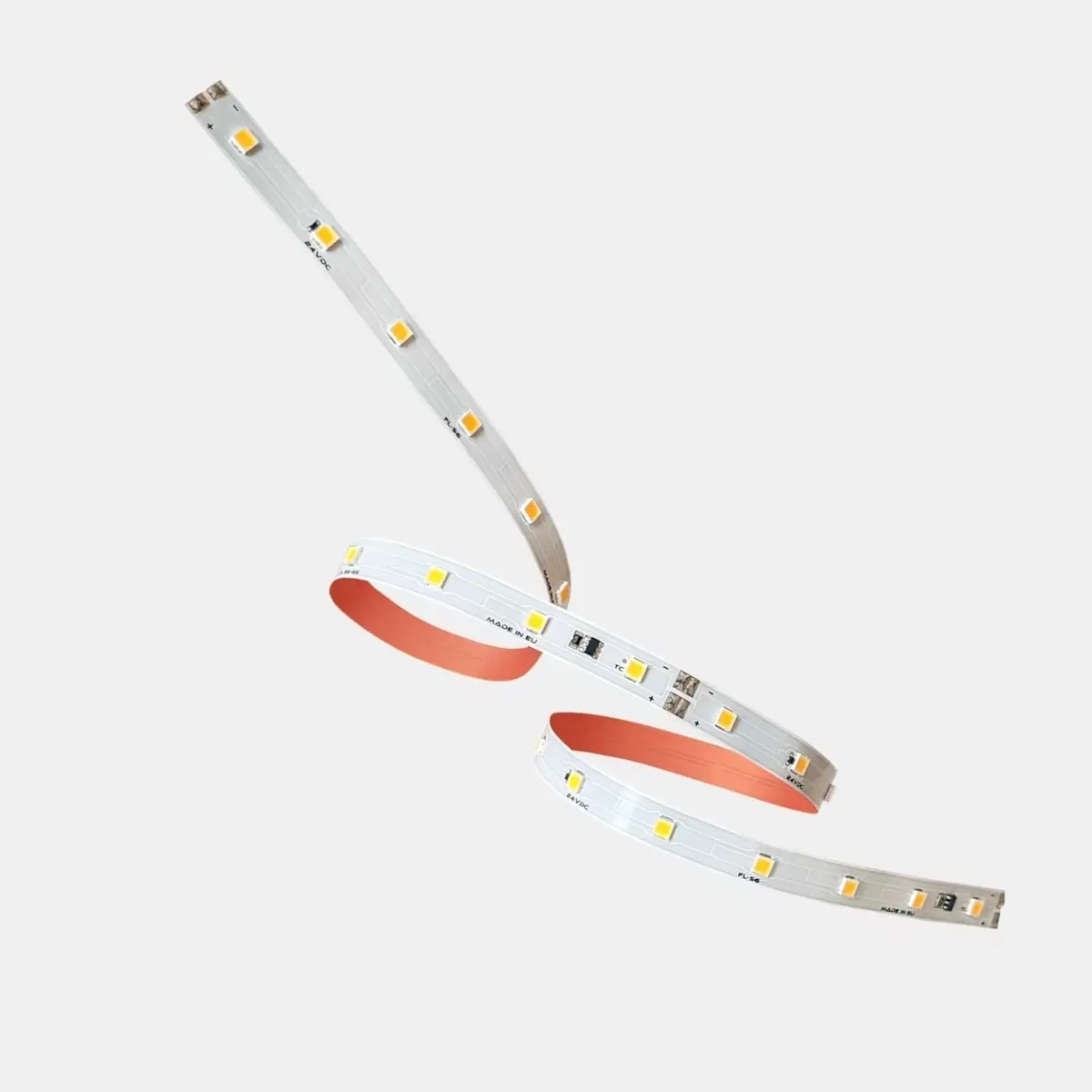

Single Colour

Single Colour Series

Robust, professional-grade 56 Nichia LEDs/m offering balanced performance, excellent colour consistency, and uniformity for indirect accent lighting.

Max Run

18.5 m

Power

2.4 – 33.4 W/m

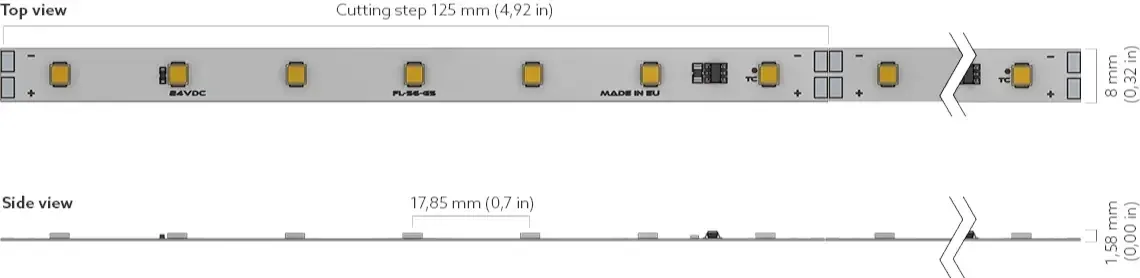

8.0 mm width · 125 mm cut interval · 7 LEDs/segment Standard 2-pad (+ / -) solder terminal

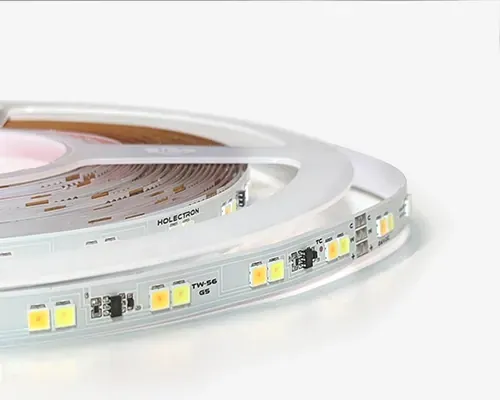

Tuneable White

Pro 50 TW Series

56 + 56 warm and cool LEDs/m for human-centric, circadian-supportive lighting, ideal for wellness-focused and under-cabinet applications.

Max Run

13 m

Power

9.6 – 33.4 W/m

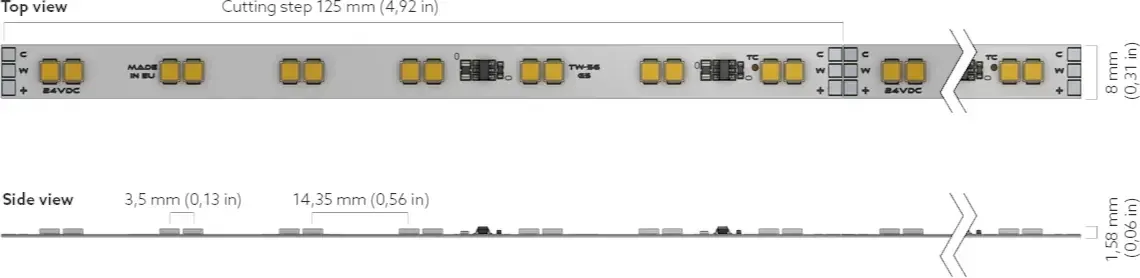

8.0 mm width · 125 mm cut interval · 7 LEDs/segment 3-pad (+ / WW / CW) independent control

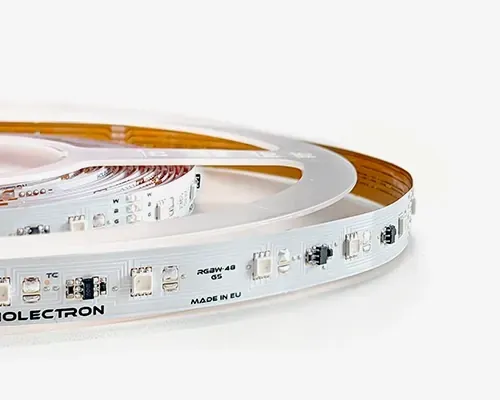

RGB

Pro 50 RGB Series

48 RGB LEDs/m for vivid, dynamic colour-wash effects, ideal for feature lighting and immersive ambient scenes.

Max Run

9 m

Power

7.2 – 11.5 W/m

8.0 mm width · 125 mm cut interval · 7 LEDs/segment 4-pad (+ / R / G / B) PWM dimming

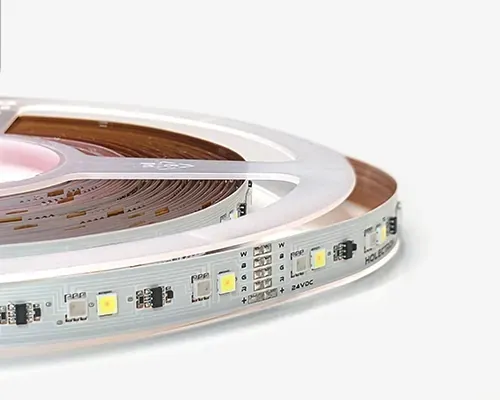

RGBW

Pro 50 RGBW Series

48 RGB + 48 white LEDs/m for instant switching between rich colour effects and high-quality white illumination.

Max Run

8 m

Power

9.6 – 24 W/m

8.0 mm width · 125 mm cut interval · 7 LEDs/segment 5-pad (+ / R / G / B / W) multichannel

Series Book (PDF) IES / LDT (per variant)

Configure Your Pro 50 Series

Explore every available configuration of the Pro 50 Series.

Real-World Specification

Recent Projects

Discover how Architape Pro 50 series is engineered into landmark architectural projects.

All Projects

Greenwich, London · DHA Designs

Cutty Sark, Royal Museums Greenwich

DHA Designs used Architape A005M luminaires with PRO 50 warm white and RGBW tape to light the historic Cutty Sark clipper at Royal Museums Greenwich.

Read Case Study

Bethnal Green, London · De Matos Ryan

Young V&A, Bethnal Green

Speirs Major specified 400m+ of Architape RGBW LED – A008 luminaires, PRO 175 and PRO 50 RGBW – for the Town Square ceiling of the Grade II* listed Young V&A.

Read Case Study

Clarges Street, Mayfair, London · Studio Fractal

Porsche Centre Mayfair

Studio Fractal used Architape PRO 100 TW tape and A005M luminaires to light Porsche Centre Mayfair with CRI 90+ tuneable white, true to every paint finish.

Read Case Study

Engineering FAQ

Frequently Asked Questions

What is the maximum run length on a single feed for Pro 50?

Pro 50 supports single-feed continuous runs up to 18.5m at 2.4W/m, 13.0m at 4.8W/m, 7.5m at 9.6W/m, 6.0m at 14.4W/m, and 5.0m at 18.2W/m.

What are the cutting increments for Pro 50?

Pro 50 features a 125mm cutting step (7 LEDs per segment), allowing precise length adjustment for custom architectural applications.

What dimming protocols are compatible with Pro 50?

Pro 50 is compatible with a wide range of industry-standard dimming protocols including DALI-2, 0-10V, Mains Phase (Leading/Trailing edge), DMX, and wireless Casambi systems.

What colour temperatures is Pro 50 available in?

Pro 50 is available in white colour temperatures from 1400K to 8000K, including tunable white versions that blend between a warm and a cool channel. Colour-changing RGBW and RGB versions are also offered.

What colour rendering (CRI) does Pro 50 offer?

White versions of Pro 50 are offered at CRI 90 and CRI 95, giving accurate colour rendering for architectural and retail spaces.

Which light colour options are available for Pro 50?

Pro 50 is available as Tunable White, Single Colour, RGBW and RGB.

What power options are available for Pro 50?

Pro 50 is offered from 2.4 to 33.4 W/m across 10 output levels and runs on 24V DC, so you can balance brightness against run length and driver sizing.

How efficient is Pro 50?

Efficacy reaches up to 156 lm/W, depending on the colour temperature, CRI and output selected. Coloured and tunable variants sit lower in the range. Exact figures for each SKU are on its datasheet.
