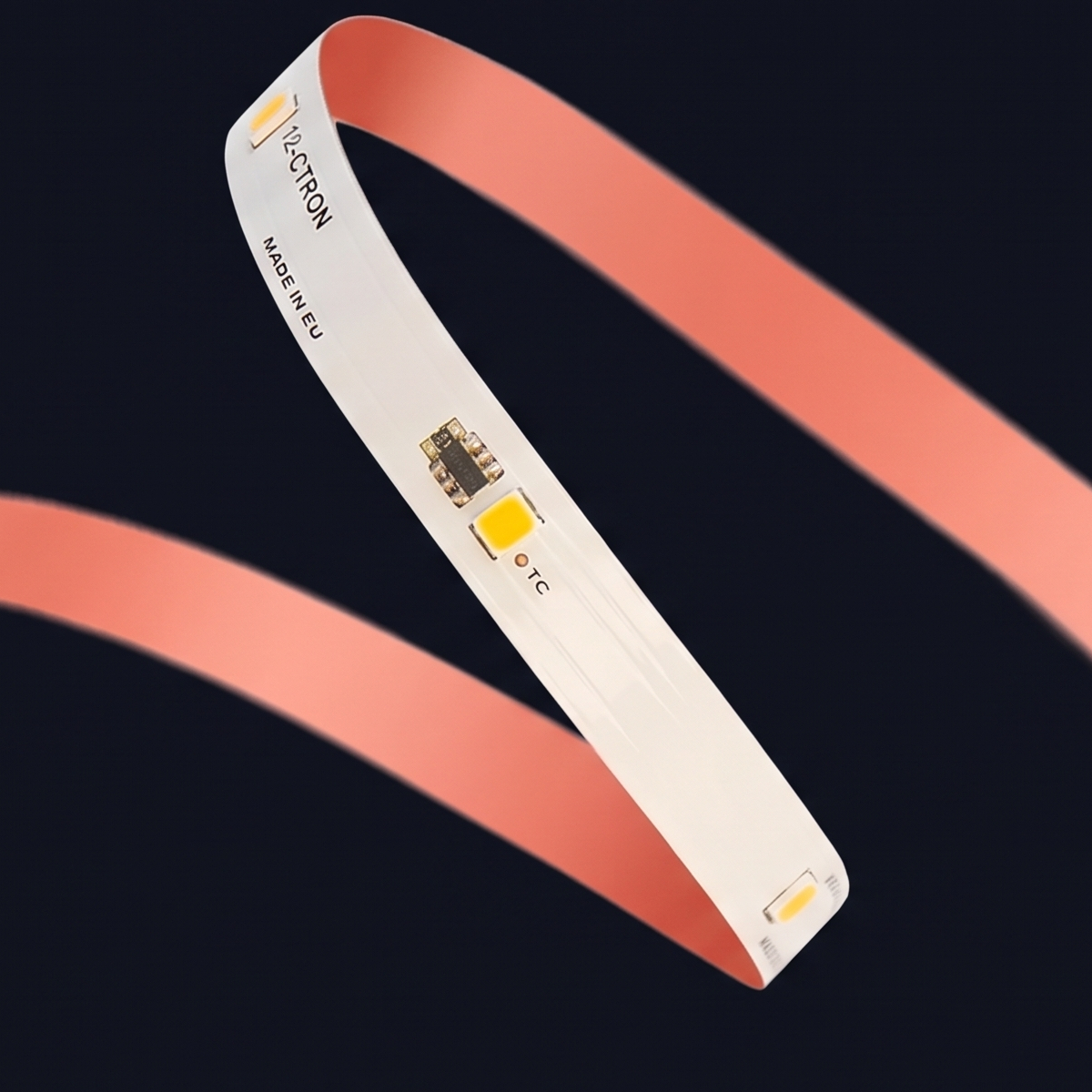

Pro 20 High-Efficiency Architectural LED Tape

Configure Series PDF Contact

Power Options

1.2 W/m - 9.1 W/m

24V DC architecture available in 1.2W, 2.4W, 4.8W, and 9.1W/m models.

Luminous Flux

31 lm/m - 1382 lm/m

28 Nichia LEDs/m delivering soft, continuous ambient glow over long distances.

Max Efficacy

25 Lm/W - 160 Lm/W

Optimised thermal efficiency reaching up to 160 Lm/W on architectural white.

Colour Fidelity

CRI 90 / CRI 95 (R9>90)

High-fidelity colour rendering for large-scale coves and perimeter lighting.

Configuration Matrix

Long-Run Single Colour Platform

A single high-efficiency configuration built on 28 LEDs/m, engineered for ultra-long single-feed runs across large-scale coves and perimeter details.

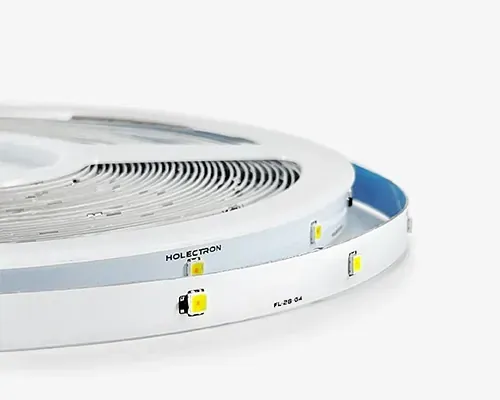

High-Efficiency 8mm

Single Colour 24V

Long-run 8mm PCB with 11 CCTs (1800K–6500K) and saturated colours, CRI 90/95+, and 250mm cutting intervals for ambient coves and perimeters.

Max Run

31 m

Power

1.2 – 9.1 W/m

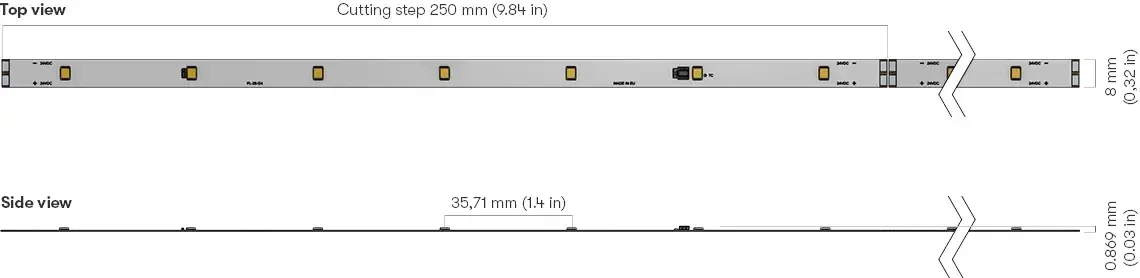

8.0 mm width · 250 mm cut interval · 7 LEDs/segment Standard 2-pad (+ / -) solder terminal

Series Book (PDF) IES / LDT (per variant)

Configure Your Pro 20 Series

Explore every available configuration of the Pro 20 High-Efficiency Series.

Real-World Specification

Recent Projects

Discover how Architape Pro 20 series is engineered into landmark architectural projects.

All Projects

Clarges Street, Mayfair, London · Studio Fractal

Porsche Centre Mayfair

Studio Fractal used Architape PRO 100 TW tape and A005M luminaires to light Porsche Centre Mayfair with CRI 90+ tuneable white, true to every paint finish.

Read Case Study

Covent Garden, London · Stanton Williams

Royal Opera House, Covent Garden

Architape A005M, Opaline M and PRO 100 LED lighting for the Royal Opera House 'Open Up' transformation by Stanton Williams, lit by Studio Fractal.

Read Case Study

Bethnal Green, London · De Matos Ryan

Young V&A, Bethnal Green

Speirs Major specified 400m+ of Architape RGBW LED – A008 luminaires, PRO 175 and PRO 50 RGBW – for the Town Square ceiling of the Grade II* listed Young V&A.

Read Case Study

Engineering FAQ

Frequently Asked Questions

Where is Pro 20 typically specified?

Pro 20 is a high-efficiency LED strip designed for large-scale ambient lighting in architectural and interior environments, ideally suited to long coves, wide features, and indirect lighting where ultra-high density is unnecessary.

What run lengths can I achieve on a single feed?

Pro 20 supports single-feed continuous runs up to 31m at 1.2W/m, 20m at 2.4W/m, 13m at 4.8W/m, and 8.5m at 9.1W/m.

What colour temperatures and CRI options are available?

Pro 20 is available in 11 architectural white colour temperatures ranging from 1800K to 6500K with CRI 90 and CRI 95 (R9>90) colour rendering, as well as saturated red, green, and blue monochromatic options.

What power options are available for Pro 20?

Pro 20 is offered from 1.2 to 9.1 W/m across 4 output levels and runs on 24V DC, so you can balance brightness against run length and driver sizing.

How efficient is Pro 20?

Efficacy reaches up to 159 lm/W, depending on the colour temperature, CRI and output selected. Exact figures for each SKU are on its datasheet.

What IP rating does Pro 20 have?

Pro 20 is rated IP20 and operates from -25Â°C to +50Â°C. It is intended for dry indoor locations; choose an outdoor or IP-rated version for damp or exposed areas.

What is the lifetime and warranty of Pro 20?

Pro 20 has a rated LED lifetime of L90B10 > 60,000 hours and is backed by a 5-year warranty.

What are the dimensions of Pro 20?

The Pro 20 profile measures 8.0 x 0.87 mm (width x height).
