Indoor LED Tape

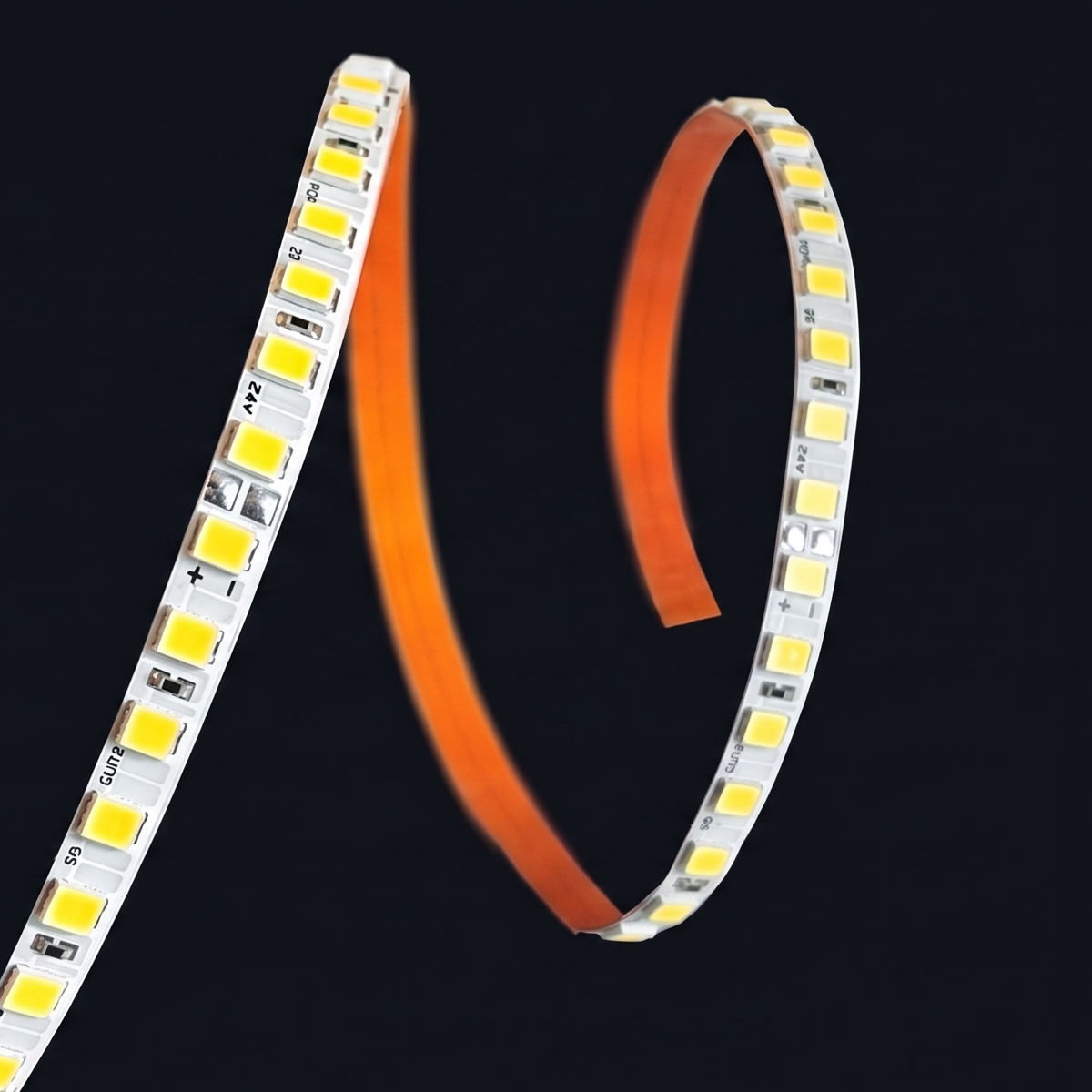

Pro 175 Ultra-Dense Series

Architape Pro 175 is our ultra-high density 24V LED strip, featuring 175 Nichia LEDs per metre in a 5mm width for flawless dot-free linear lighting even in very shallow micro-profiles.

Configure Model Series Book Contact Sales
Pro 175 Ultra-Dense Series
Power Options
4.8 W/m - 19.2 W/m

24V DC architecture available in 4.8W, 9.6W, 14.4W, and 19.2W/m models.

Luminous Flux
125 lm/m - 3034 lm/m

Our highest-density Nichia package delivering flawless dot-free illumination.

Max Efficacy
26 Lm/W - 160 Lm/W

Optimised thermal efficiency reaching up to 160 Lm/W on architectural white.

Colour Fidelity
CRI 90 / CRI 95 (R9>90)

High-fidelity colour rendering for colour-critical retail displays and joinery.

Configuration Matrix

Ultra-Dense Single Colour Platform

A single ultra-high density configuration built on 175 LEDs/m, delivering flawless dot-free light even in shallow direct-view or diffuse-lens profiles.

Ultra-Dense 175 LEDs/m

Single Colour 24V

Ultra-high density 5mm PCB with 11 CCTs (1800K–6500K) and saturated colours, CRI 90/95+, and 40mm cutting intervals for dot-free profiles.

Max Run
5 m
Power
4.8 – 19.2 W/m

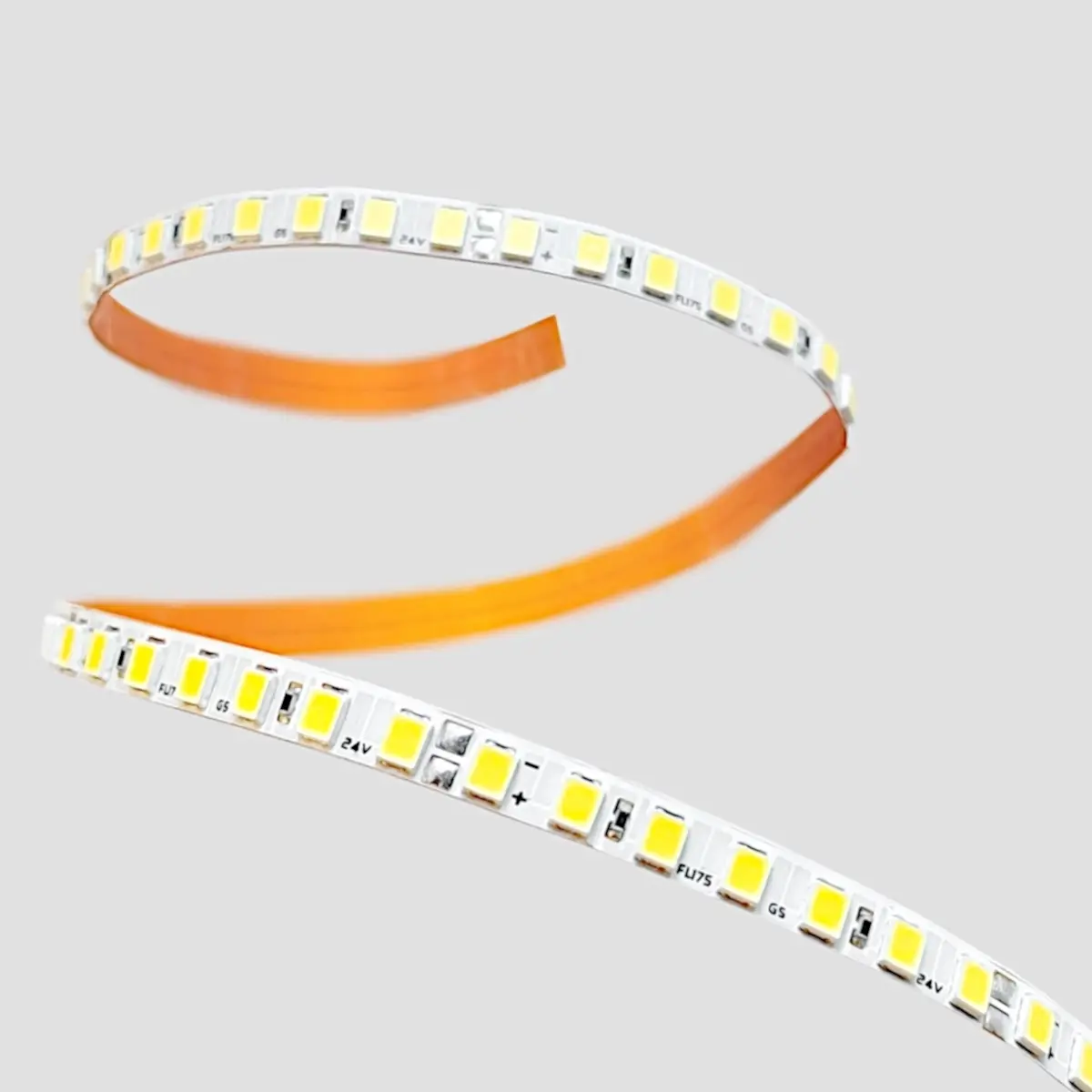

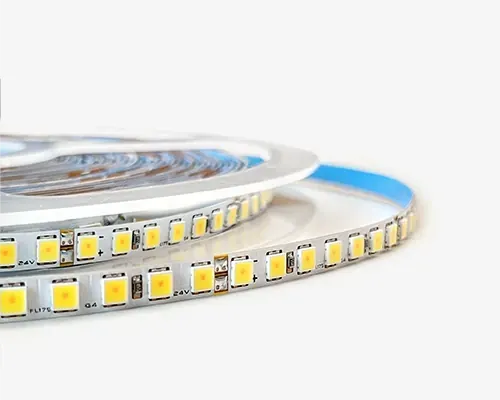

Pro 175 Single Colour

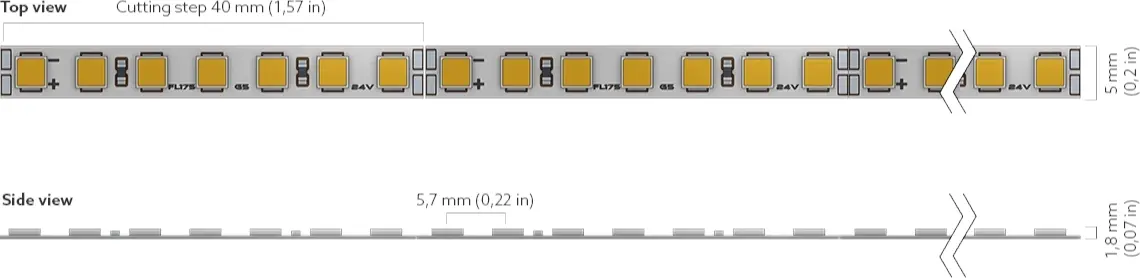

Pro 175 Dimensions
5.0 mm width · 40 mm cut interval · 7 LEDs/segment Standard 2-pad (+ / -) solder terminal
Series Book (PDF) IES / LDT (per variant)

Configure Your Pro 175 Series

Explore every available configuration of the Pro 175 Ultra-Dense Series.

Real-World Specification

Recent Projects

Discover how Architape Pro 175 series is engineered into landmark architectural projects.

All Projects
Artists' Bar, Royal Albert Hall
Royal Albert Hall, London · BDP

Artists' Bar, Royal Albert Hall

How Architape Opaline Flex, PRO 100 TW/RGB and recessed step luminaires bring warm, tuneable light to the Royal Albert Hall's Artists' Bar after its BDP refit.

Read Case Study
Young V&A, Bethnal Green
Bethnal Green, London · De Matos Ryan

Young V&A, Bethnal Green

Speirs Major specified 400m+ of Architape RGBW LED – A008 luminaires, PRO 175 and PRO 50 RGBW – for the Town Square ceiling of the Grade II* listed Young V&A.

Read Case Study
Porsche Centre Mayfair
Clarges Street, Mayfair, London · Studio Fractal

Porsche Centre Mayfair

Studio Fractal used Architape PRO 100 TW tape and A005M luminaires to light Porsche Centre Mayfair with CRI 90+ tuneable white, true to every paint finish.

Read Case Study
Engineering FAQ

Frequently Asked Questions

Why choose Pro 175 over lower density LED tapes?

At 175 LEDs per metre, Pro 175 is our highest-density strip, eliminating any visible dotting or striping even in shallow direct-view or diffuse-lens profiles where lower-density tapes would show individual LED points.

What is the cutting step and run length of Pro 175?

Pro 175 features a 40mm cutting step and supports single-feed run lengths up to 5m at 4.8W/m, 2.5m at 9.6W/m, 1.5m at 14.4W/m, and 1m at 19.2W/m.

What colour temperatures and CRI options are available?

Pro 175 is available in 11 architectural white colour temperatures ranging from 1800K to 6500K with CRI 90 and CRI 95 (R9>90) colour rendering, as well as saturated red, green, and blue monochromatic options.

What power options are available for Pro 175?

Pro 175 is offered from 4.8 to 19.2 W/m across 4 output levels and runs on 24V DC, so you can balance brightness against run length and driver sizing.

How efficient is Pro 175?

Efficacy reaches up to 160 lm/W, depending on the colour temperature, CRI and output selected. Exact figures for each SKU are on its datasheet.

What IP rating does Pro 175 have?

Pro 175 is rated IP20 and operates from -25°C to +50°C. It is intended for dry indoor locations; choose an outdoor or IP-rated version for damp or exposed areas.

What is the lifetime and warranty of Pro 175?

Pro 175 has a rated LED lifetime of L90B10 > 60,000 hours and is backed by a 5-year warranty.

What are the dimensions of Pro 175?

The Pro 175 profile measures 5.0 x 1.8 mm (width x height).

Start Your Specification

Access the full range of photometrics, technical data sheets, and custom runs in our configuration tool.

Open Configurator Request Sample
