Indoor LED Tape

Pro 100S Ultra-Slim Series

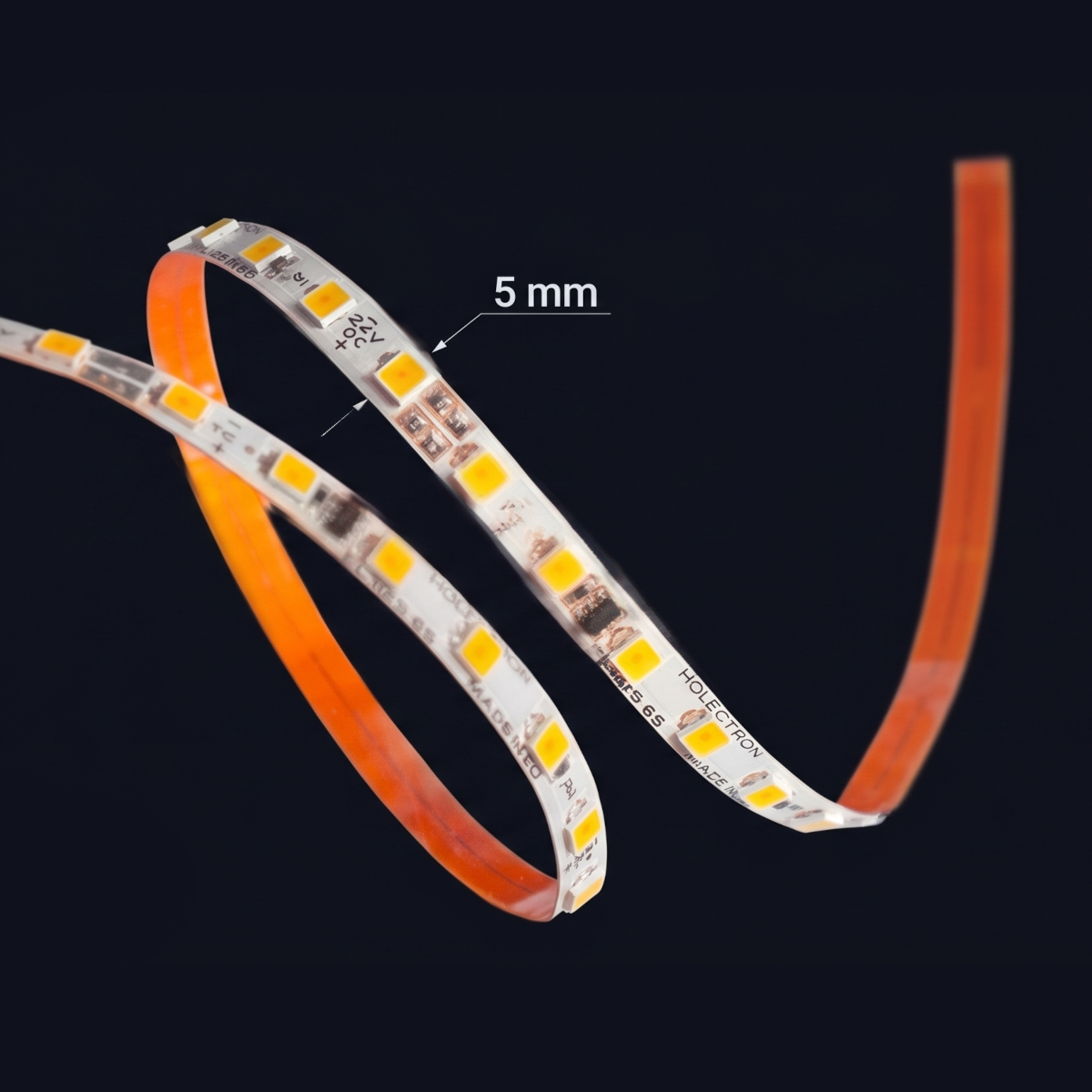

Architape Pro 100S delivers the same high-resolution 112 Nichia LEDs/m output as our Pro 100 range in an ultra-slim 5mm form factor, engineered for compact joinery, micro-profiles, and precision architectural details.

Configure Model Series Book Contact Sales
Pro 100S Ultra-Slim Series
Power Options
4.8 W/m - 19.2 W/m

24V DC architecture available in 4.8W, 9.6W, 14.4W, and 19.2W/m models.

Luminous Flux
125 lm/m - 2999 lm/m

High-output Nichia package delivering high flux in a micro 5mm form factor.

Max Efficacy
26 Lm/W - 160 Lm/W

Optimised thermal efficiency reaching up to 160 Lm/W on architectural white.

Colour Fidelity
CRI 90 / CRI 95 (R9>90)

High-fidelity colour rendering for colour-critical retail displays and joinery.

Configuration Matrix

Ultra-Slim Single Colour Platform

A single high-resolution configuration built on the same 112 LEDs/m Nichia platform as Pro 100, compressed into an ultra-slim 5mm profile for the tightest joinery.

Ultra-Slim 5mm

Single Colour 24V

Ultra-slim 5mm PCB with 11 CCTs (1800K–6500K) and saturated colours, CRI 90/95+, and 62.5mm cutting intervals for micro-profiles.

Max Run
13 m
Power
4.8 – 19.2 W/m

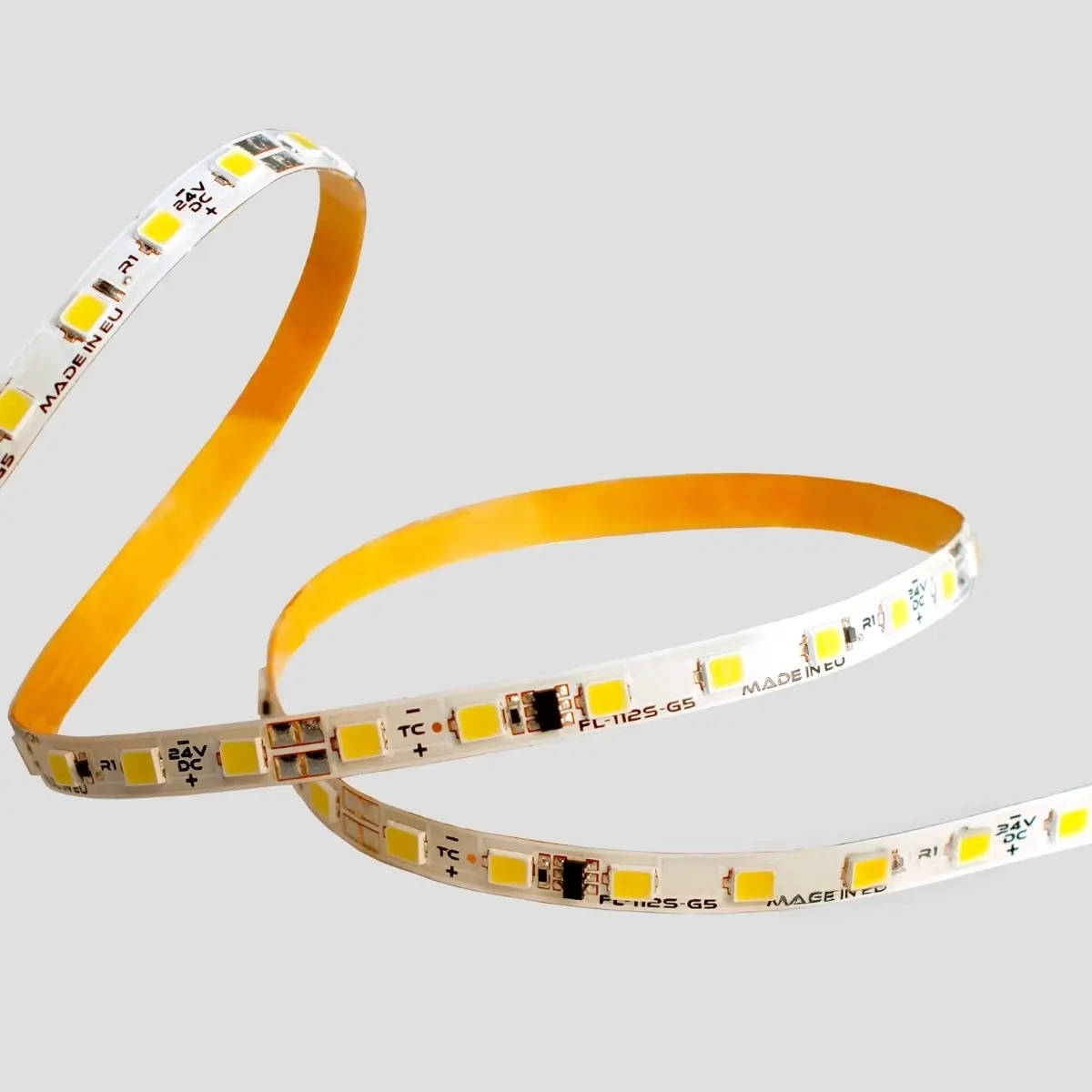

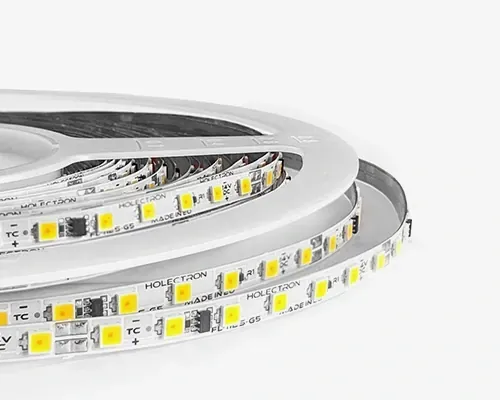

Pro 100S Single Colour

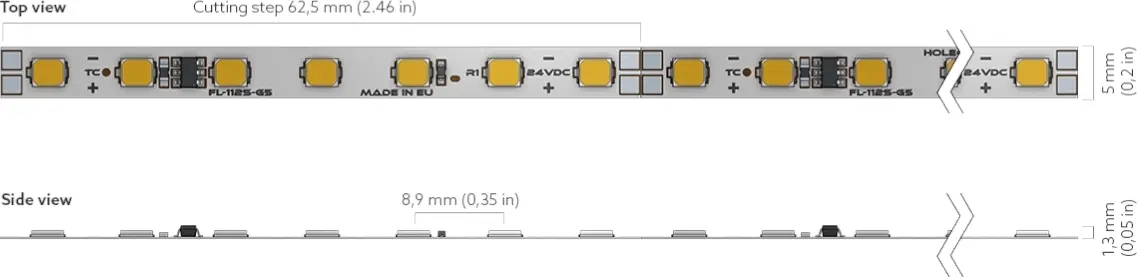

Pro 100S Dimensions
5.0 mm width · 62.5 mm cut interval · 7 LEDs/segment Standard 2-pad (+ / -) solder terminal
Series Book (PDF) IES / LDT (per variant)

Configure Your Pro 100S Series

Explore every available configuration of the Pro 100S Ultra-Slim Series.

Real-World Specification

Recent Projects

Discover how Architape Pro 100S series is engineered into landmark architectural projects.

All Projects
Porsche Centre Mayfair
Clarges Street, Mayfair, London · Studio Fractal

Porsche Centre Mayfair

Studio Fractal used Architape PRO 100 TW tape and A005M luminaires to light Porsche Centre Mayfair with CRI 90+ tuneable white, true to every paint finish.

Read Case Study
Royal Opera House, Covent Garden
Covent Garden, London · Stanton Williams

Royal Opera House, Covent Garden

Architape A005M, Opaline M and PRO 100 LED lighting for the Royal Opera House 'Open Up' transformation by Stanton Williams, lit by Studio Fractal.

Read Case Study
Young V&A, Bethnal Green
Bethnal Green, London · De Matos Ryan

Young V&A, Bethnal Green

Speirs Major specified 400m+ of Architape RGBW LED – A008 luminaires, PRO 175 and PRO 50 RGBW – for the Town Square ceiling of the Grade II* listed Young V&A.

Read Case Study
Engineering FAQ

Frequently Asked Questions

Where is Pro 100S typically specified?

With its ultra-slim 5mm PCB width, Pro 100S is specifically engineered for tight architectural joinery, ultra-shallow micro-profiles, recessed furniture details, showcase displays, and millwork shadow gaps where standard 8mm or 10mm tape cannot fit.

What run lengths can I achieve on a single feed?

On a 24V DC single electrical feed, Pro 100S supports run lengths up to 13m at 4.8W/m, 9.5m at 9.6W/m, 7m at 14.4W/m, and 5.5m at 19.2W/m.

What colour temperatures and CRI options are available?

Pro 100S is available in 11 architectural white colour temperatures ranging from 1800K to 6500K with CRI 90 and CRI 95 (R9>90) colour rendering, as well as saturated red, green, and blue monochromatic options.

What power options are available for Pro 100S?

Pro 100S is offered from 4.8 to 19.2 W/m across 4 output levels and runs on 24V DC, so you can balance brightness against run length and driver sizing.

How efficient is Pro 100S?

Efficacy reaches up to 160 lm/W, depending on the colour temperature, CRI and output selected. Exact figures for each SKU are on its datasheet.

What IP rating does Pro 100S have?

Pro 100S is rated IP20 and operates from -25°C to +50°C. It is intended for dry indoor locations; choose an outdoor or IP-rated version for damp or exposed areas.

What is the lifetime and warranty of Pro 100S?

Pro 100S has a rated LED lifetime of L90B10 > 60,000 hours and is backed by a 5-year warranty.

What are the dimensions of Pro 100S?

The Pro 100S profile measures 5.0 x 1.33 mm (width x height).
