IP54 Recessed Downlights

ADL SR IP54 Downlight

Architape ADL SR IP54 takes the compact ADL SR platform and seals it to IP54, making it the go-to recessed downlight for bathrooms, spas, covered canopies and other humid or dusty environments where standard fittings fall short.

Configure Model Series Book Contact Sales
ADL SR IP54 Downlight
Power Options
9 W - 12 W

Available in 9W and 12W configurations with remote constant-current driver.

Luminous Output
527 lm - 1037 lm

High luminous efficacy delivering crisp, balanced downlighting.

Max Efficacy
63 Lm/W - 93 Lm/W

High optical efficiency providing energy-saving architectural performance.

Colour Fidelity
CRI 80+ / CRI 90+

High colour fidelity options available across all architectural CCTs.

Configuration Matrix

ADL SR IP54 Downlight Configurations & Dimensions

Featuring faceted reflectors across 20°, 40°, and 55° beam angles, ADL SR IP54 offers tremendous flexibility. Its die-cast aluminium housing ensures optimal passive cooling and extended operating life (L90B10 > 60,000h).

ADL SR IP54 Downlight

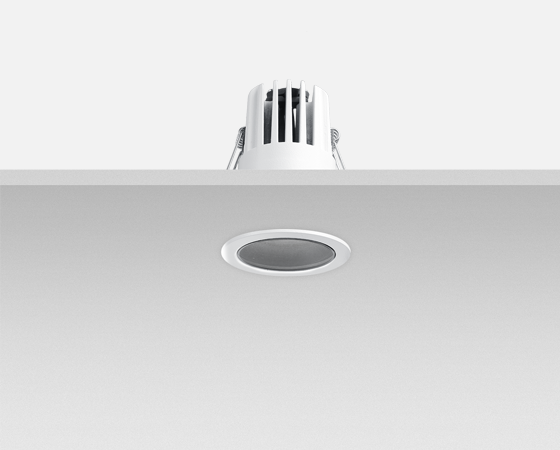

ADL SR IP54 Downlight product

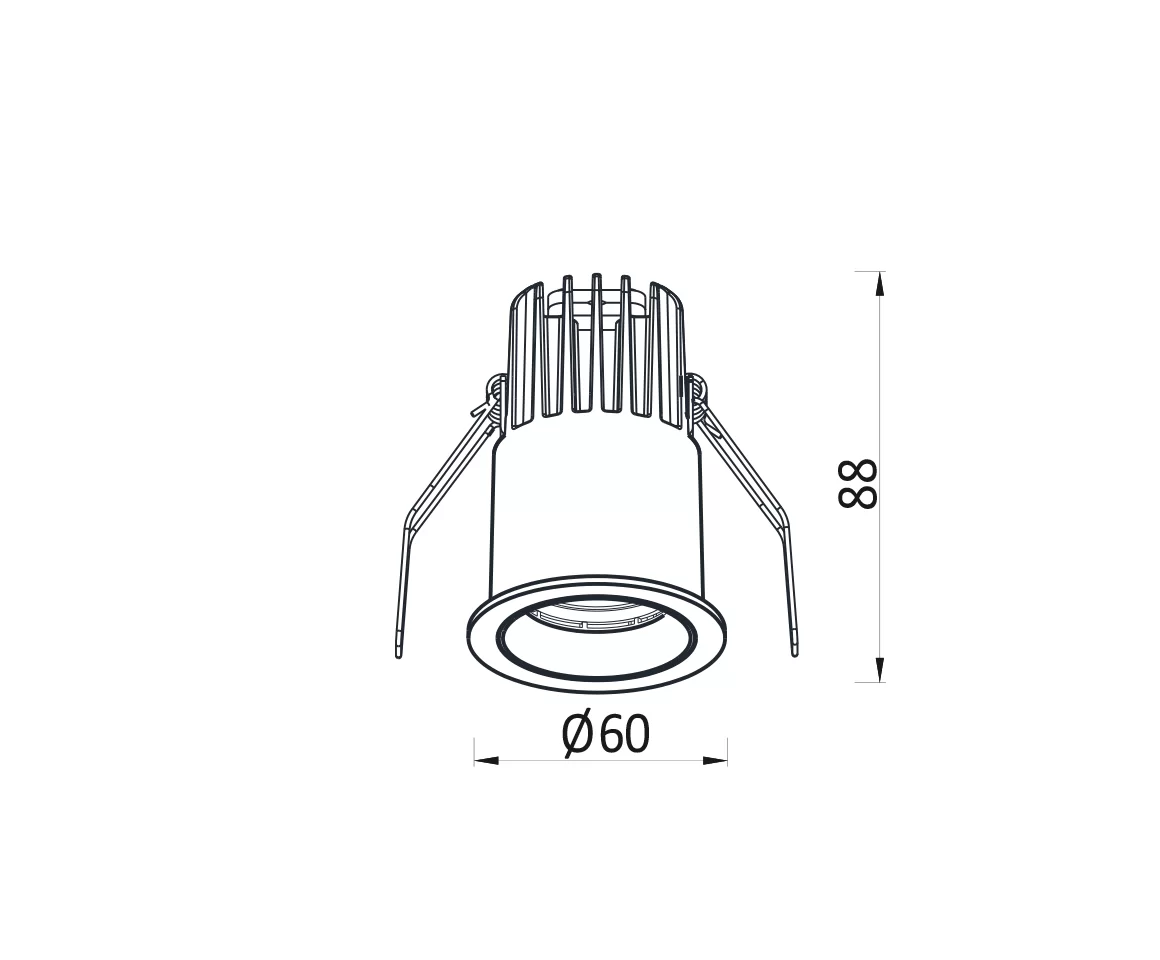

ADL SR IP54 Downlight dimensions
Series Book (PDF) Data Sheets (per variant) IES / LDT (per variant)

Configure Your ADL SR IP54 Downlight

Explore every available configuration of the ADL SR IP54 Downlight series.

Real-World Specification

Recent Projects

Discover how Architape luminaires are engineered into landmark architectural projects.

All Projects
Porsche Centre Mayfair
Clarges Street, Mayfair, London · Studio Fractal

Porsche Centre Mayfair

Studio Fractal used Architape PRO 100 TW tape and A005M luminaires to light Porsche Centre Mayfair with CRI 90+ tuneable white, true to every paint finish.

Read Case Study
Royal Opera House, Covent Garden
Covent Garden, London · Stanton Williams

Royal Opera House, Covent Garden

Architape A005M, Opaline M and PRO 100 LED lighting for the Royal Opera House 'Open Up' transformation by Stanton Williams, lit by Studio Fractal.

Read Case Study
Young V&A, Bethnal Green
Bethnal Green, London · De Matos Ryan

Young V&A, Bethnal Green

Speirs Major specified 400m+ of Architape RGBW LED – A008 luminaires, PRO 175 and PRO 50 RGBW – for the Town Square ceiling of the Grade II* listed Young V&A.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What beam angles are available for ADL SR IP54?

ADL SR IP54 offers three faceted reflector distributions: R20 (20° spot), R40 (40° medium), and R55 (55° wide flood).

Can ADL SR IP54 be used in bathrooms?

Yes. The IP54 rating protects against dust and splashing water, so it suits bathroom zones where IP44 or better is required. Always confirm zone requirements with your electrical contractor.

What driver and dimming options are available?

Compatible with standard Phase dimming, 0-10V, DALI-2 addressable systems, and wireless Casambi Bluetooth control.

What colour temperatures is ADL SR IP54 Downlight available in?

ADL SR IP54 Downlight is available in white colour temperatures from 2700K to 4000K.

What colour rendering (CRI) does ADL SR IP54 Downlight offer?

ADL SR IP54 Downlight is offered at CRI 80+ and CRI 90+, giving accurate colour rendering for architectural and retail spaces.

What power options are available for ADL SR IP54 Downlight?

ADL SR IP54 Downlight is offered from 9 to 12 W across 2 output levels.

How efficient is ADL SR IP54 Downlight?

Efficacy reaches up to 93 lm/W, depending on the colour temperature, CRI and output selected. Exact figures for each SKU are on its datasheet.

What is the lifetime and warranty of ADL SR IP54 Downlight?

ADL SR IP54 Downlight has a rated LED lifetime of L90B10 > 60,000 hours and is backed by a 5-year warranty.
