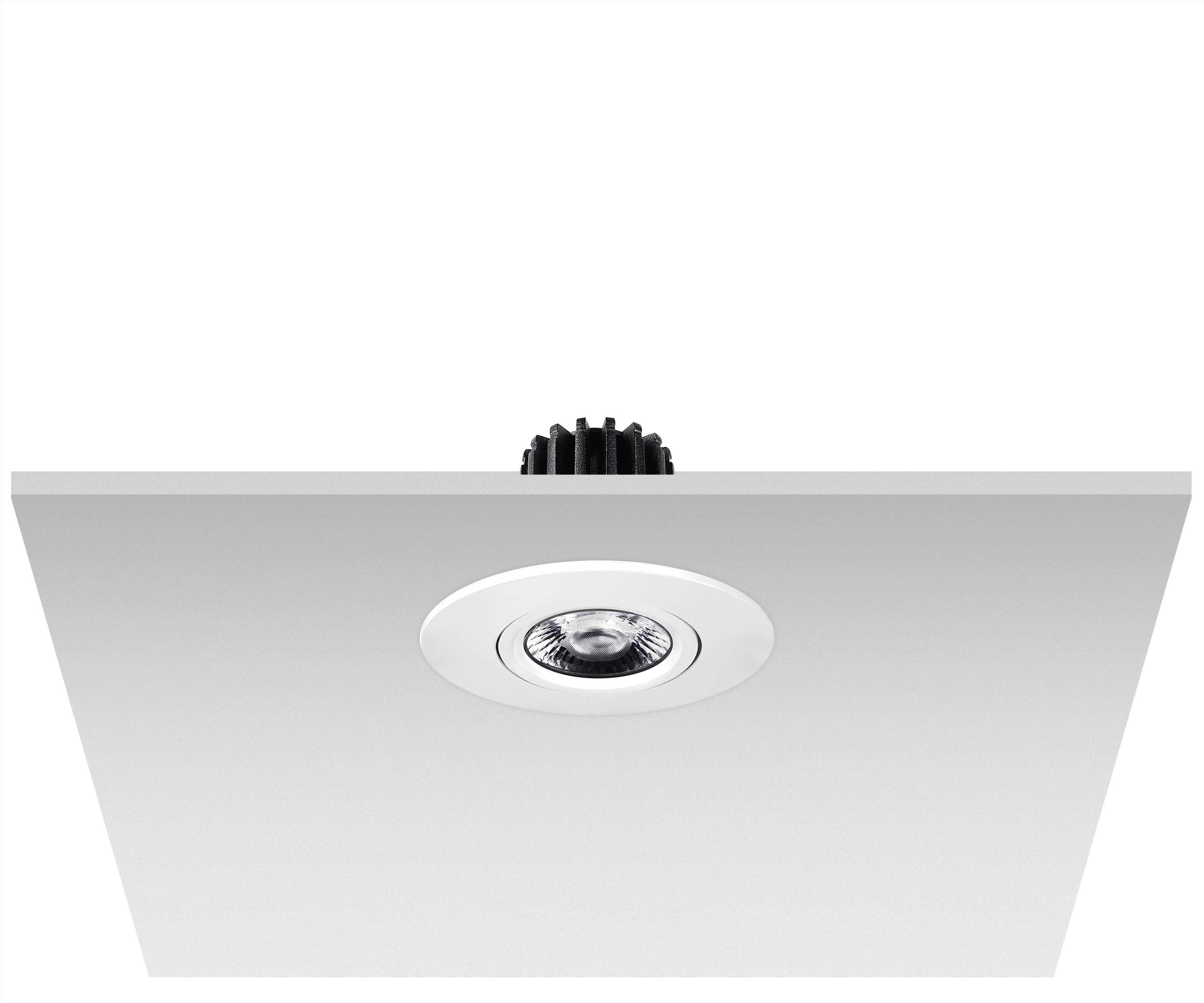

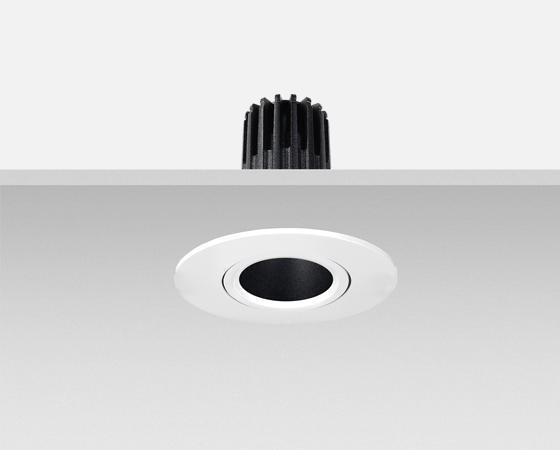

Architape ADL C Tilt provides flexible directional illumination with an internal 30° tilt adjustment, allowing designers to aim light accurately at artwork, vertical surfaces, and architectural details.
Engineered with a slim bezel and die-cast aluminum passive heat sink, it combines sleek aesthetics with dependable thermal performance and long operational life (L90B10 > 60,000h). Available with optional emergency battery kit.
Directional Optical System
Precision TIR optics mounted on an internal 30° tilt mechanism.
Accented focal beam for pinpoint artwork illumination and architectural displays.
Uniform beam distribution for textured vertical walls and retail displays.
Broad coverage for vertical wall washing and wide-angle accentuation.
Available Colour Temperatures
Architectural white light options engineered for superior visual comfort.
Reflector & Housing Finishes
Architectural finish combinations providing seamless ceiling integration.
Performance at a Glance
High-fidelity photometric metrics for architectural specification.
Available in 9W and 13W configurations with remote constant-current driver.
High luminous output with flexible 30° directional positioning.
High optical efficiency providing superior wall wash and accent performance.
High color fidelity options available across all architectural CCTs.
Precision Engineering
Visual Comfort & Low Glare
Deep-set LED architecture and anti-glare secondary baffles ensure soft cut-off angles (UGR < 13) for premium visual comfort.
Die-Cast Aluminium Thermal Engine
High-conductivity die-cast aluminium housing provides passive cooling without fans, maximizing LED operating life (L90B10 > 60,000h).
Multi-Protocol Dimming & Emergency
Compatible with Phase, 0-10V, DALI-2, and wireless Casambi control systems, with optional 3-hour emergency battery backup integration.
Photometric Overview

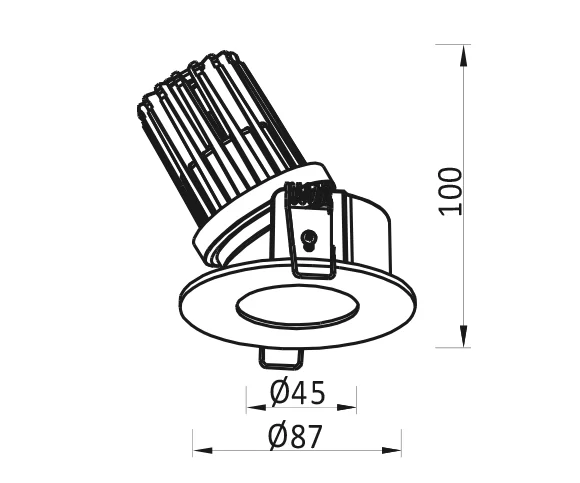

Product Dimensions
Detailed dimensional drawings and installation specifications.
Frequently Asked Questions
What angle of tilt is achievable with ADL C Tilt?
The internal gimbal allows smooth tilting up to 30° from the vertical axis for precise directional highlighting.
Can the fitting be aimed after installation?
Yes, the tilt adjustment can be easily aimed and locked into position during commissioning.
What dimming protocols are supported?
Compatible with standard Phase dimming, 0-10V, DALI-2 addressable systems, and wireless Casambi Bluetooth control.
