Recessed Downlights

ADL C Downlight

Architape ADL C is a versatile recessed downlight designed for general architectural illumination, featuring a slim profile bezel that integrates effortlessly into contemporary ceilings.

Configure Model Series Book Contact Sales
ADL C Downlight
Power Options
9 W - 13 W

Available in 9W and 13W configurations with remote constant-current driver.

Luminous Output
488 lm - 1449 lm

Crisp architectural illumination with uniform optical delivery.

Max Efficacy
57 Lm/W - 121 Lm/W

High optical efficiency providing sustainable energy performance.

Colour Fidelity
CRI 80+ / CRI 90+

High colour fidelity options available across all architectural CCTs.

Configuration Matrix

ADL C Downlight Configurations & Dimensions

Available with interchangeable optics and customisable reflector finishes, ADL C delivers crisp, consistent lighting across commercial, hospitality, and residential projects. Its die-cast aluminium body provides excellent passive thermal management and long-term reliability (L90B10 > 60,000h).

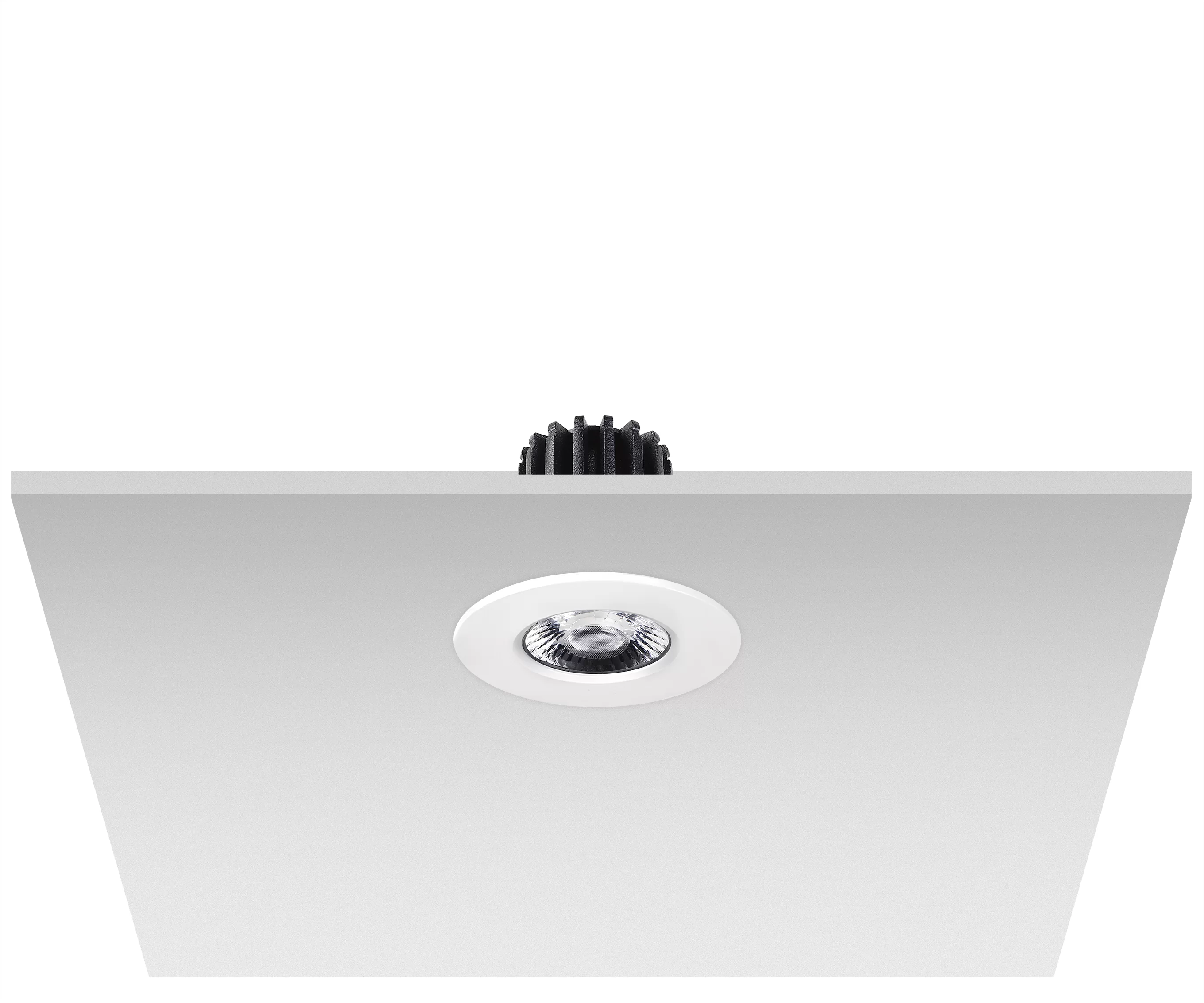

ADL C Downlight

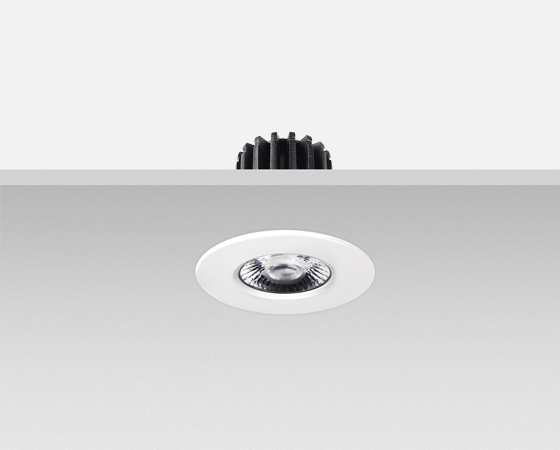

ADL C Downlight product

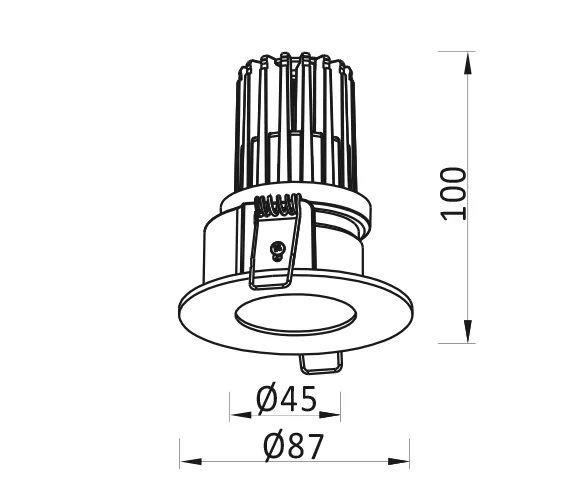

ADL C Downlight dimensions
Series Book (PDF) Data Sheets (per variant) IES / LDT (per variant)

Configure Your ADL C Downlight

Explore every available configuration of the ADL C Downlight series.

Real-World Specification

Recent Projects

Discover how Architape luminaires are engineered into landmark architectural projects.

All Projects
Porsche Centre Mayfair
Clarges Street, Mayfair, London · Studio Fractal

Porsche Centre Mayfair

Studio Fractal used Architape PRO 100 TW tape and A005M luminaires to light Porsche Centre Mayfair with CRI 90+ tuneable white, true to every paint finish.

Read Case Study
Royal Opera House, Covent Garden
Covent Garden, London · Stanton Williams

Royal Opera House, Covent Garden

Architape A005M, Opaline M and PRO 100 LED lighting for the Royal Opera House 'Open Up' transformation by Stanton Williams, lit by Studio Fractal.

Read Case Study
Young V&A, Bethnal Green
Bethnal Green, London · De Matos Ryan

Young V&A, Bethnal Green

Speirs Major specified 400m+ of Architape RGBW LED – A008 luminaires, PRO 175 and PRO 50 RGBW – for the Town Square ceiling of the Grade II* listed Young V&A.

Read Case Study
Engineering FAQ

Frequently Asked Questions

What ceiling cutout is required for ADL C?

ADL C requires a standard compact ceiling cutout with robust spring clips for fast, secure installation in drywall or plasterboard ceilings.

Can the baffle or reflector be changed on site?

Yes, interchangeable baffles in Dark Black, Dark Gold, and White can be swapped to modify optical aesthetics during or after installation.

What colour temperatures are available?

Available in 2700K, 3000K, 3500K, and 4000K with both CRI 80+ and CRI 90+ colour rendering options.

What colour rendering (CRI) does ADL C Downlight offer?

ADL C Downlight is offered at CRI 80+ and CRI 90+, giving accurate colour rendering for architectural and retail spaces.

What power options are available for ADL C Downlight?

ADL C Downlight is offered from 9 to 13 W across 2 output levels.

How efficient is ADL C Downlight?

Efficacy reaches up to 115 lm/W, depending on the colour temperature, CRI and output selected. Exact figures for each SKU are on its datasheet.

What IP rating does ADL C Downlight have?

ADL C Downlight is rated IP20 and operates from -25°C to +50°C. It is intended for dry indoor locations; choose an outdoor or IP-rated version for damp or exposed areas.

What optics are available for ADL C Downlight?

ADL C Downlight is offered with L20, L30 and L50 optics.
