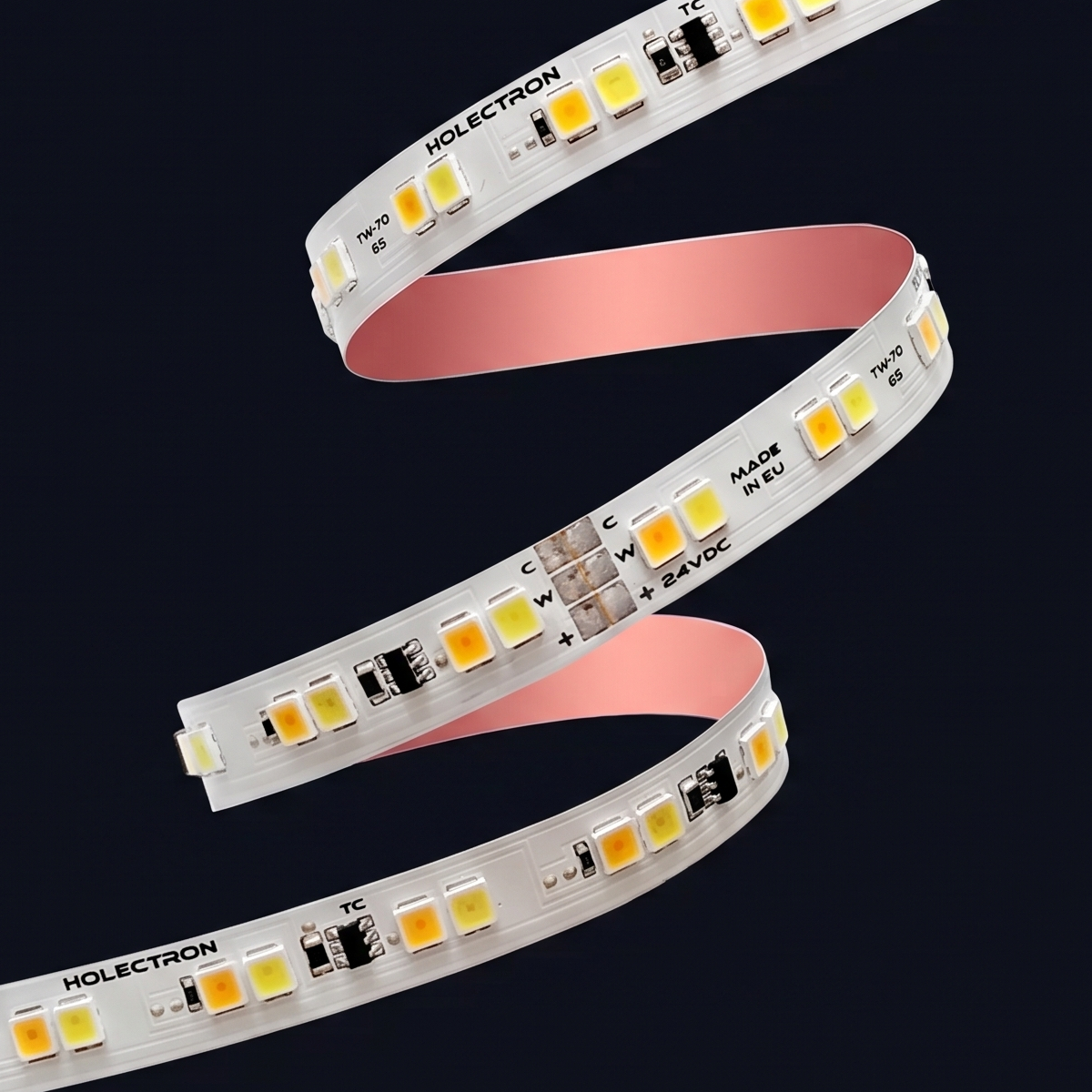

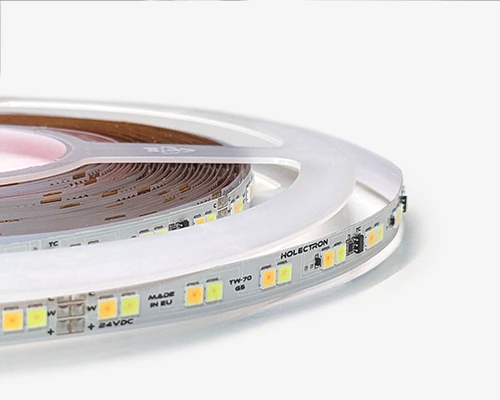

Pro 70 TW Architectural Tuneable White LED Tape

Configure Series PDF Contact

Power Options

9.6 W/m - 45.6 W/m

24V DC architecture available in 9.6W, 19.2W, 33.6W, and 45.6W/m models.

Luminous Flux

822 lm/m - 6885 lm/m

140 Nichia LEDs/m (70 warm + 70 cool) delivering high-output tuneable white light.

Max Efficacy

80 Lm/W - 159 Lm/W

Optimised thermal efficiency reaching up to 159 Lm/W on architectural white.

Colour Fidelity

CRI 90 / CRI 95 (R9>90)

High-fidelity colour rendering for wellness-driven, circadian lighting designs.

Configuration Matrix

High-Output Tuneable White Platform

A single high-density tuneable-white configuration built on 140 LEDs/m (70 warm + 70 cool), delivering smooth, controlled CCT adjustment for circadian and wellness-driven lighting.

Tuneable White 8mm

Tuneable White 24V

High-density 8mm PCB with continuous CCT adjustment from 1800K–6500K, CRI 90/95+, and 100mm cutting intervals for homogenous, spotless illumination.

Max Run

9 m

Power

9.6 – 45.6 W/m

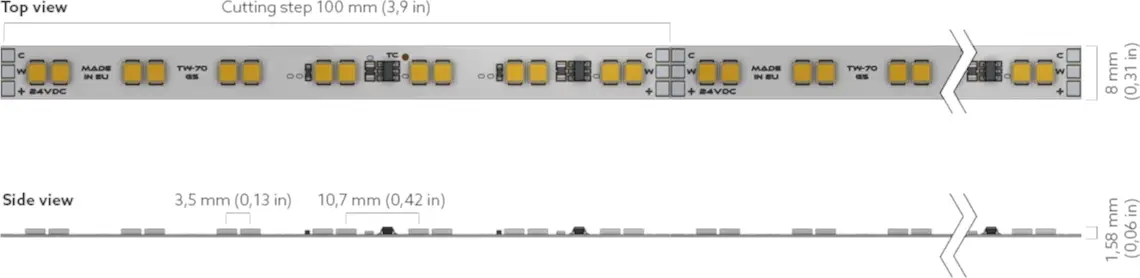

8.0 mm width · 100 mm cut interval · 7 warm + 7 cool LEDs/segment 3-pad (+ / WW / CW) independent control

Series Book (PDF) IES / LDT (per variant)

Configure Your Pro 70 Series

Explore every available configuration of the Pro 70 High-Output Tuneable Series.

Real-World Specification

Recent Projects

Discover how Architape Pro 70 series is engineered into landmark architectural projects.

All Projects

Clarges Street, Mayfair, London · Studio Fractal

Porsche Centre Mayfair

Studio Fractal used Architape PRO 100 TW tape and A005M luminaires to light Porsche Centre Mayfair with CRI 90+ tuneable white, true to every paint finish.

Read Case Study

Covent Garden, London · Stanton Williams

Royal Opera House, Covent Garden

Architape A005M, Opaline M and PRO 100 LED lighting for the Royal Opera House 'Open Up' transformation by Stanton Williams, lit by Studio Fractal.

Read Case Study

Bethnal Green, London · De Matos Ryan

Young V&A, Bethnal Green

Speirs Major specified 400m+ of Architape RGBW LED – A008 luminaires, PRO 175 and PRO 50 RGBW – for the Town Square ceiling of the Grade II* listed Young V&A.

Read Case Study

Engineering FAQ

Frequently Asked Questions

What is the CCT tuning range and LED density of Pro 70 TW?

Pro 70 TW features 140 Nichia LEDs per metre (70 warm + 70 cool white) with a continuously tuneable colour temperature range from 1800K to 6500K.

What is the cutting interval for Pro 70 TW?

Pro 70 TW has a 100mm cutting interval, with each segment containing 7 warm and 7 cool LEDs.

What run lengths can I achieve on a single feed?

Pro 70 TW supports single-feed continuous runs up to 9.0m at 9.6W/m, 5.5m at 19.2W/m, 3.0m at 33.6W/m, and 2.0m at 45.6W/m.

What colour rendering (CRI) does Pro 70 offer?

Pro 70 is offered at CRI 90 and CRI 95, giving accurate colour rendering for architectural and retail spaces.

What power options are available for Pro 70?

Pro 70 is offered from 9.6 to 45.6 W/m across 4 output levels and runs on 24V DC, so you can balance brightness against run length and driver sizing.

How efficient is Pro 70?

Efficacy reaches up to 156 lm/W, depending on the colour temperature, CRI and output selected. Exact figures for each SKU are on its datasheet.

What IP rating does Pro 70 have?

Pro 70 is rated IP20 and operates from -25Â°C to +50Â°C. It is intended for dry indoor locations; choose an outdoor or IP-rated version for damp or exposed areas.

What is the lifetime and warranty of Pro 70?

Pro 70 has a rated LED lifetime of L90B10 > 60,000 hours and is backed by a 5-year warranty.
