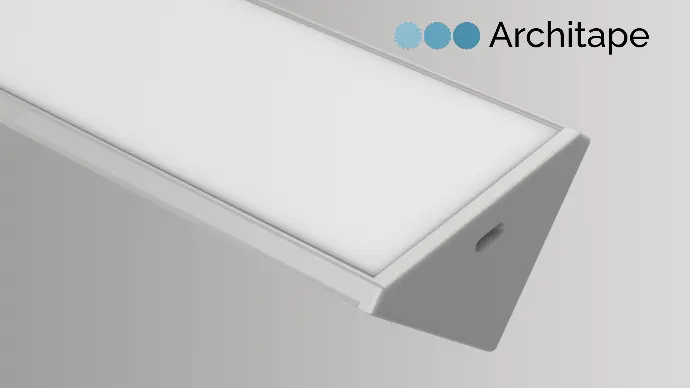

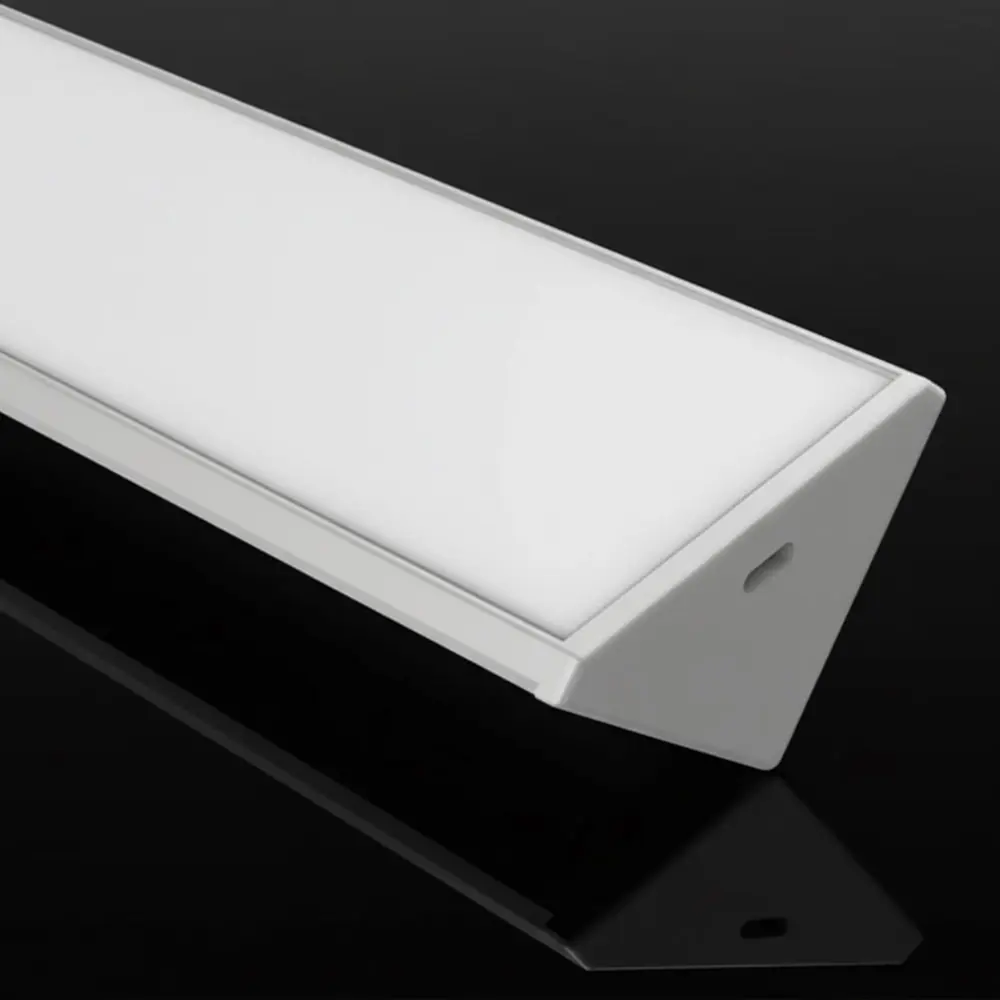

A032 Anodized Grey Profile

https://www.architape.co.uk/web/image/product.template/483665/image_1920?unique=68262e6
A corner-mount luminaire that supports high power LED strips for under-cabinet, task and accent lighting. Made from lightweight aluminium, it is perfect for long-term indoor professional lighting applications.

Specifications
• Width: 22.35 mm
• Height: 32.35 mm
• Length: up to 3 m
• Light output ratio:
   - Opal: 70% transmission
• Tc temperature:  up to 75 °C
• Operating temperature: -25 °C to +50 °C
• LED tape: up to 14 W/m


Mounting options
Corner mounting

£ 0.00 0.0 GBP £ 0.00

£ 0.00

    This combination does not exist.

    Max Length: 3m Surface Mounting Corner horizontal mounting Max Wattage: 14W A032 Corner Mounting Aluminium Profile
    Contact Us

    ​

    Share

    Internal Reference: PRG.A032.EXT.AGY

    Lens/ Cover
    Opal Cover: AC-32

    Endcaps

    End cap AE-32-CAP

    Fixing Clips

    Holder: AF-15

    For enquiries on this product or others, please contact us.

    Our team will be happy to answer any questions you have from sales queries to technical information.

    Contact us

    The Architape AR-32 is a corner-mount fixture that supports high power LED strips for under-cabinet, task and accent lighting. Made from lightweight aluminium, it is perfect for long-term indoor professional lighting applications. This profile is the ideal match for our Architape Pro LED tapes. These white, tuneable white and RGB+W LED tapes are available in a wide range of colour temperatures (CCT) and with a colour rendering index (CRI) of up to 98+.
