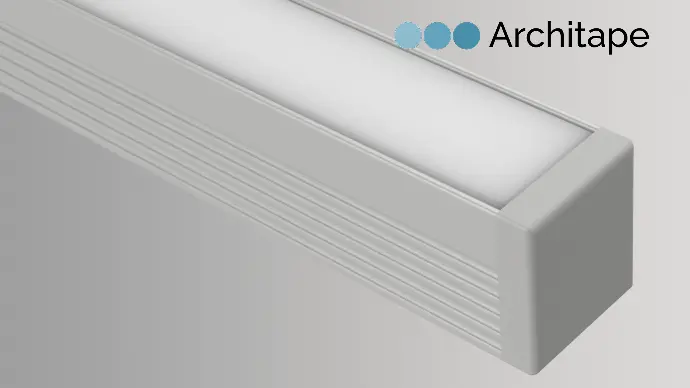

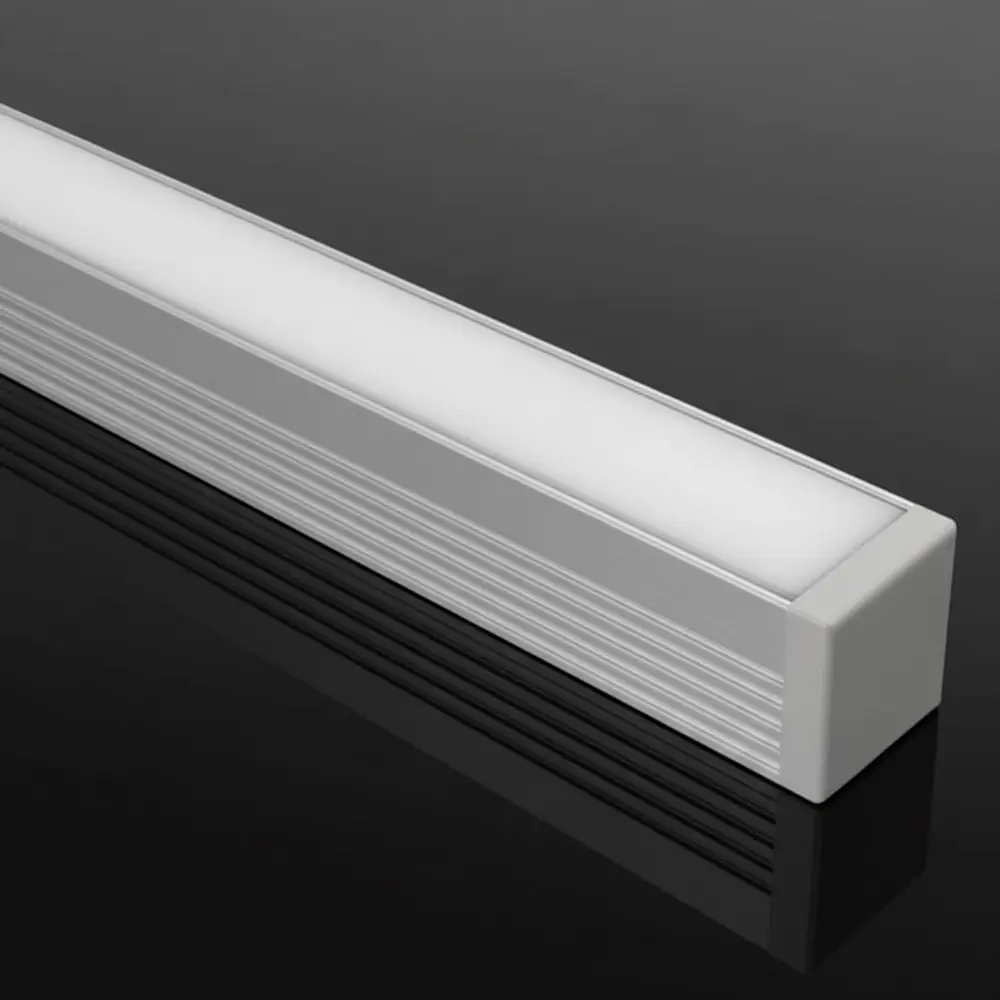

A018N Anodized Grey Profile

https://www.architape.co.uk/web/image/product.template/483658/image_1920?unique=c38b732
A surface-mount fixture for direct lighting applications, where homogenous lighting is a must. Made from lightweight aluminium, it is designed for long-term indoor professional lighting applications.

Specifications
• Width: 8 mm
• Height: 9 mm
• Length: up to 3 m
• Light output ratio:
   - Opal: 50% transmission
• Tc temperature:  up to 75 °C
• Operating temperature: -25 °C to +50 °C
• LED tape: up to 14 W/m

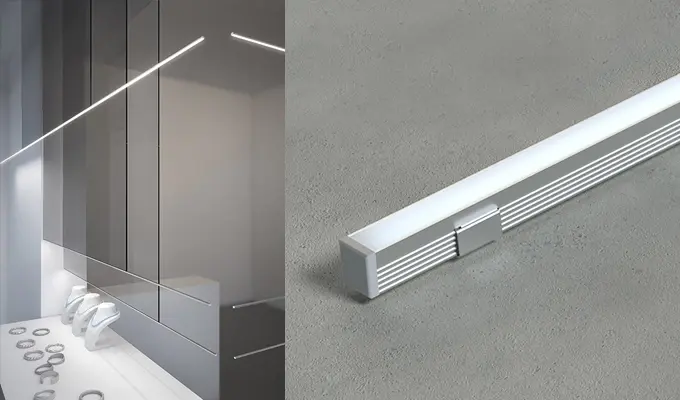

Mounting options
Surface horizontal mounting
Surface vertical mounting
Wall mounting

£ 0.00 0.0 GBP £ 0.00

£ 0.00

    This combination does not exist.

    Max Length: 3m Surface Mounting Max Wattage: 14W A018N Aluminium Profile Surface horizontal mounting Surface vertical mounting Wall mounting
    Contact Us

    ​

    Share

    Internal Reference: PRG.A018N.EXT.AGY

    Lens/ Cover

    Opal Cover: AC-18N

    Endcaps

    End cap AE-18N-CAP
    End cap with hole AE-18N-CAP-H

    Fixing Clips

    Mounting Bracket Silver: AF-18N

    For enquiries on this product or others, please contact us.

    Our team will be happy to answer any questions you have from sales queries to technical information.

    Contact us

    The Architape AR-18N is a small, recess-mount fixture, perfect for homogenous decorative linear lighting. Made from lightweight aluminium, it is designed for long-term indoor professional lighting applications. This profile is the ideal match for our Architape Pro LED tapes. These white, tuneable white and RGB+W LED tapes are available in a wide range of colour temperatures (CCT) and with a colour rendering index (CRI) of up to 98+.
