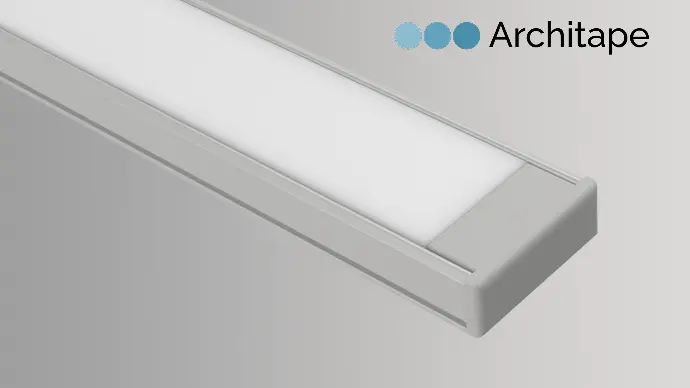

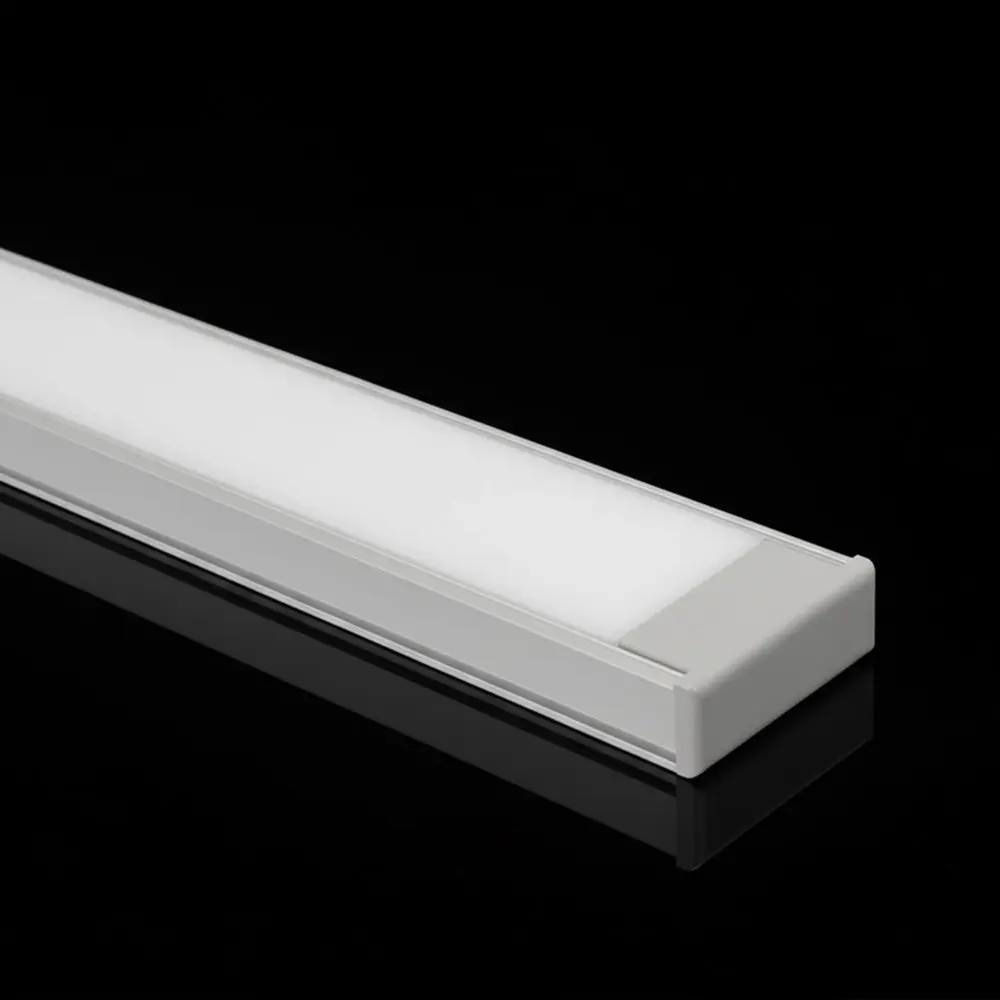

A016 Anodized Grey Profile

https://www.architape.co.uk/web/image/product.template/483654/image_1920?unique=586b0d5
A surface-mount luminaire for direct lighting applications, available with three different cover shapes. Made from lightweight aluminium, it is designed for long-term indoor professional lighting applications.

Specifications
• Width: 26.2 mm
• Height:
   - 9.5 mm (flush cover)
   - 23 mm (round cover)
   - 26 mm (square cover)
• Length: up to 3 m
• Light output ratio:
  - Opal: 70% transmission
  - Clear: 95% transmission
• Tc temperature:  up to 75 °C
• Operating temperature: -25 °C to +50 °C
• LED tape: up to 24 W/m

Mounting options
Surface horizontal mounting
Surface vertical mounting
Wall mounting

£ 0.00 0.0 GBP £ 0.00

£ 0.00

    This combination does not exist.

    Max Length: 3m Surface Mounting Max Wattage: 24W A016 Aluminium Profile Surface horizontal mounting Surface vertical mounting Wall mounting
    Contact Us

    ​

    Share

    Internal Reference: PRG.A016.EXT.AGY

    Lens/ Cover

    Clear Cover: AC-05
    Opal Cover: AC-06

    Endcaps

    End cap AE-16-CAP

    Fixing Clips

    Zink Holder: AF-04
    Bracket: AF-16

    For enquiries on this product or others, please contact us.

    Our team will be happy to answer any questions you have from sales queries to technical information.

    Contact us

    The Architape AR-16 is a surface-mount fixture for direct lighting applications, available with three different cover shapes. Made from lightweight aluminium, it is designed for long-term indoor professional lighting applications. This profile is the ideal match for our Architape Pro LED tapes. These white, tuneable white and RGB+W LED tapes are available in a wide range of colour temperatures (CCT) and with a colour rendering index (CRI) of up to 98+.
