A011 Anodized Grey Profile

https://www.architape.co.uk/web/image/product.template/483650/image_1920?unique=7f9cfe9

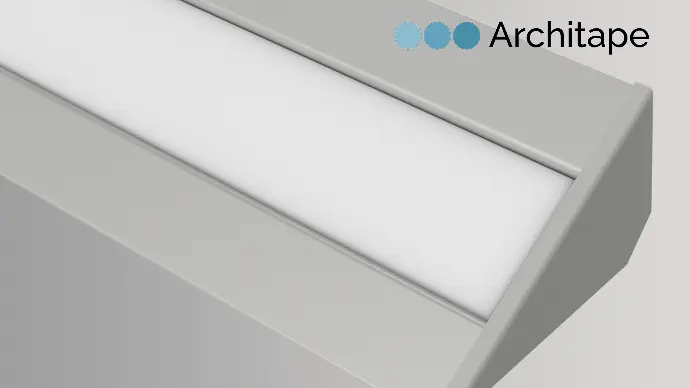

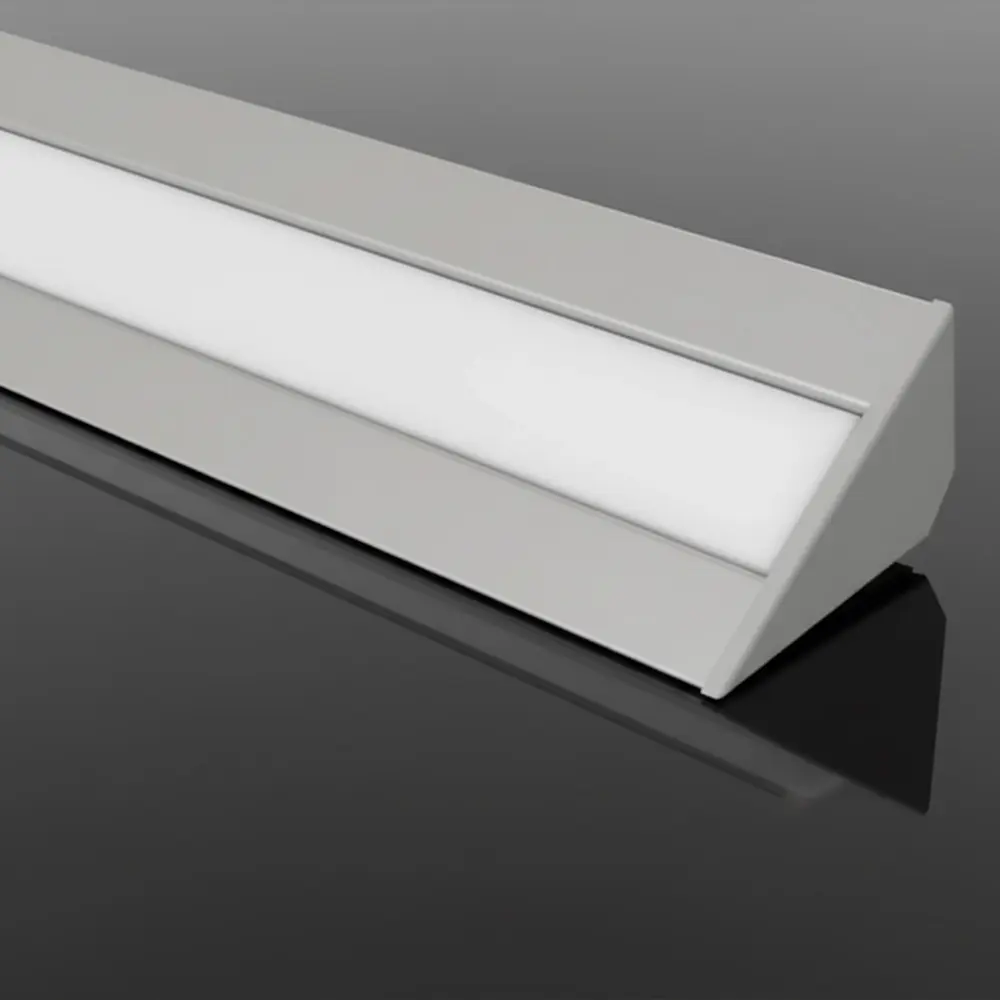

Ideal for task, accent lighting and even cove lighting, the A011 Luminaire is a corner-mounted fixture for high power LED strips. Made from lightweight aluminium, it is designed for long-term indoor professional lighting applications.

Specifications
• Width: 45.8 mm
• Height: 26.9 mm
• Length: up to 3 m
• Light output ratio:
   - Opal: 70% transmission
   - Clear: 90% transmission
• Tc temperature:  up to 75 °C
• Operating temperature: -25 °C to +50 °C
• LED tape: up to 19 W/m

Mounting options
Corner horizontal mounting

£ 0.00 0.0 GBP £ 0.00

£ 0.00

    This combination does not exist.

    Max Wattage: 19W Max Length: 3m Surface Mounting A011 Corner horizontal mounting Corner Mounting Aluminium Profile
    Contact Us

    ​

    Share

    Internal Reference: PRG.A011.EXT.AGY

    Lens/ Cover

    Clear Cover: AC-05
    Opal Cover: AC-06

    Endcaps

    End cap AE-11-CAP-L
    End cap AE-11-CAP-R

    Fixing Clips

    Plastic Holder: AF-03

    For enquiries on this product or others, please contact us.

    Our team will be happy to answer any questions you have from sales queries to technical information.

    Contact us

    Ideal for task, accent lighting and even cove lighting, the Architape AR-11 is a corner-mounted fixture for high power LED strips. Made from lightweight aluminium, it is designed for long-term indoor professional lighting applications.

    This profile is the ideal match for our Architape Pro LED tapes. These white, tuneable white and RGB+W LED tapes are available in a wide range of colour temperatures (CCT) and with a colour rendering index (CRI) of up to 98+
