A003 Anodized Grey Profile

https://www.architape.co.uk/web/image/product.template/483642/image_1920?unique=d07eda6

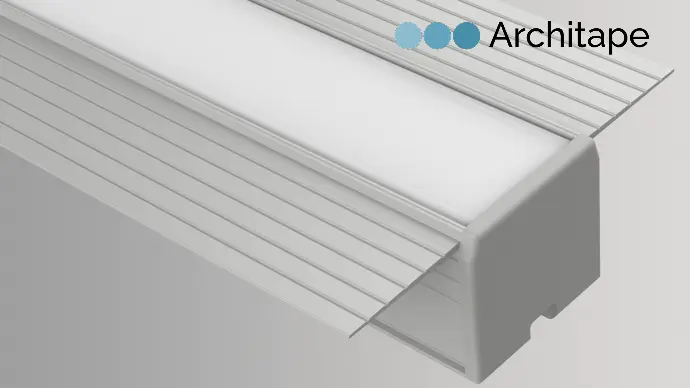

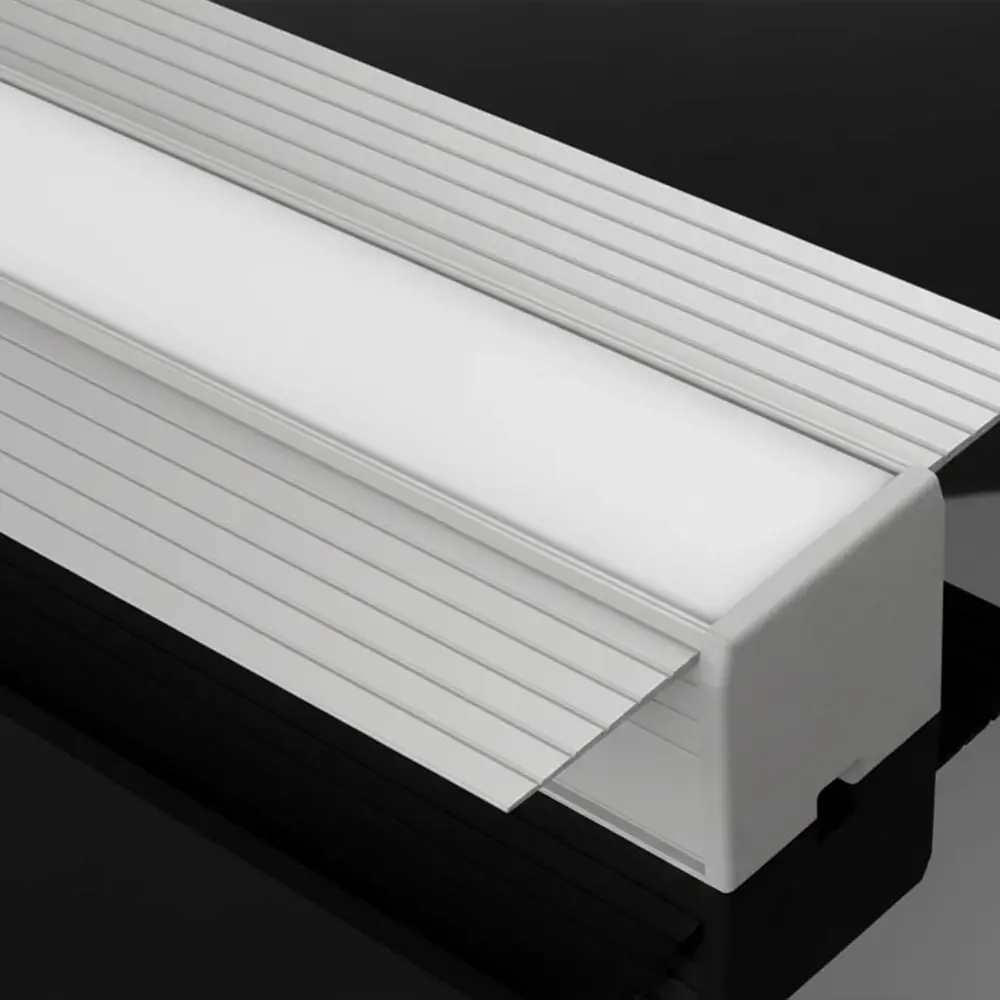

A recess mount, linear LED luminaire designed for long-term indoor professional lighting applications. Opal and diffuse covers allow the creation of a continuous light effect for direct view lighting, or efficient diffuse light for indirect applications.

Specifications
• Width: 26.8 mm (66.8 including flanges)
• Height: 24.5 mm
• Length: up to 3 m
• Light output ratio:
   - Clear: 95% transmission
   - Opal: 70% transmission
• Tc temperature: up to 75 °C
• Operating temperature: -25 °C to +50 °C
• LED tape: up to 24 W/m

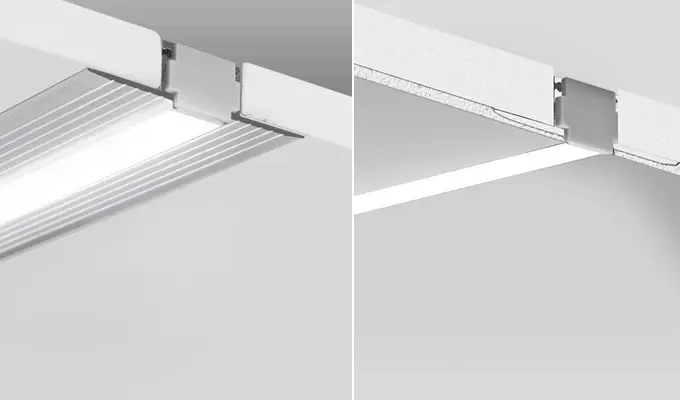

Mounting
Recessed horizontal mounting
Recessed vertical mounting
Wall mounting

£ 0.00 0.0 GBP £ 0.00

£ 0.00

    This combination does not exist.

    Max Length: 3m Recessed Mounting Recessed Horizontal Mounting Recessed Vertical Mounting Max Wattage: 24W A003 Aluminium Profile Wall mounting
    Contact Us

    ​

    Share

    Internal Reference: PRG.A003.EXT.AGY

    Lens/ Cover

    Clear Cover: AC-05
    Opal Cover: AC-06

    Endcaps

    End cap AE-19-CAP​

    Fixing Clips

    Spring: AF-381
    Plastic Holder: AF-03
    Metal Holder AC-09
    Metal Holder: AF-10
    Metal Holder: AF-11
    Adjustable Holder: AF-182

    For enquiries on this product or others, please contact us.

    Our team will be happy to answer any questions you have from sales queries to technical information.

    Contact us

    A recess mount fixture for direct lighting applications.
    Made from lightweight aluminium, it is designed for long-term indoor professional lighting applications. This profile is the ideal match for our Architape Pro LED tapes.
