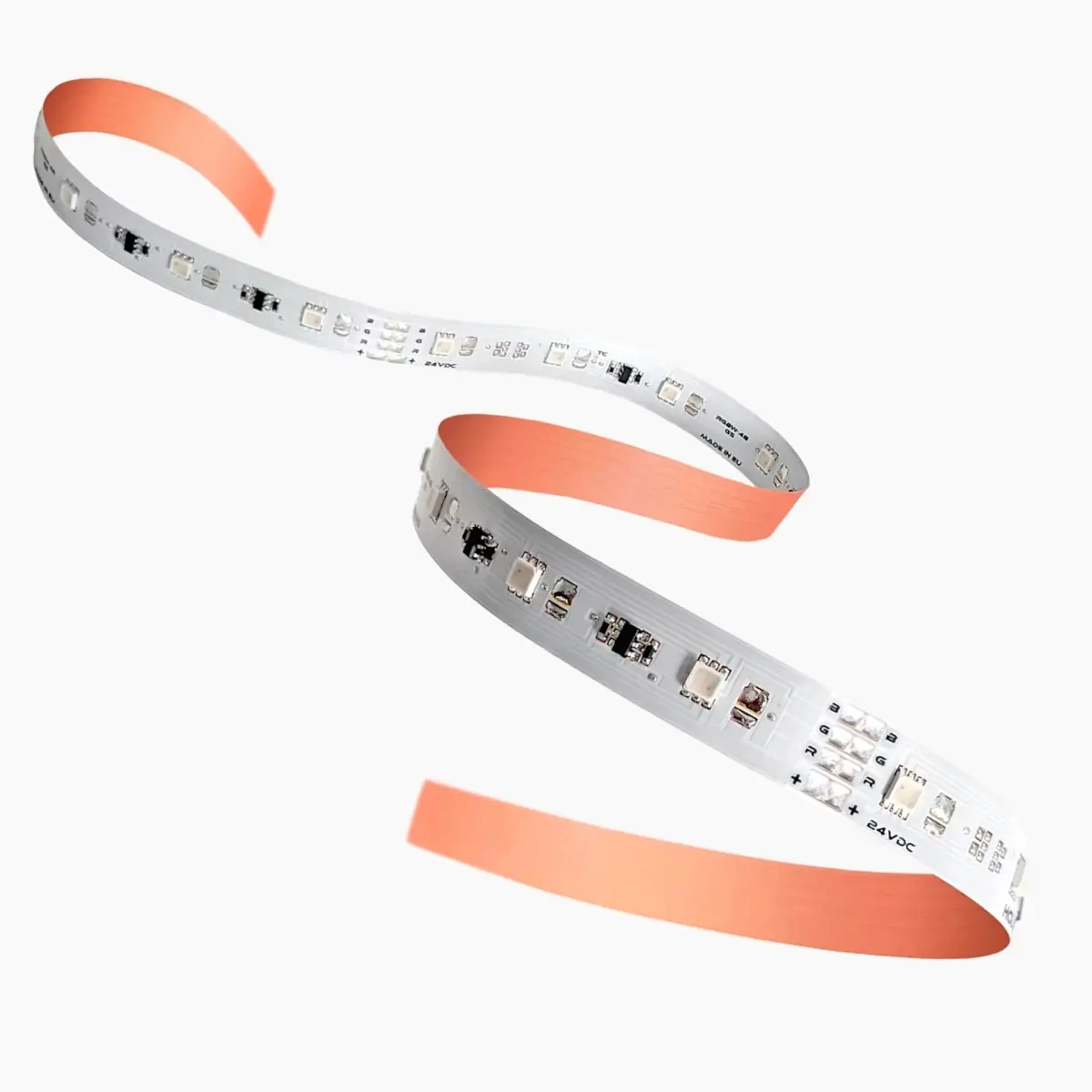

Architape Pro 50 RGB
RGB48/Nx G5 11WArchitape Pro 50 RGB LED strips offer dynamic colour-changing capabilities in a compact design. With 48 RGB Nichia LEDs per meter on an 8mm width, these colour LED strips provide smooth colour transitions and versatile lighting effects. The robust copper PCB with current stabilization maintains consistent performance over 5m maximum runs. With 24V operation and a 62.5mm cutting step, Pro 50 RGB strips are perfect for applications requiring dynamic lighting effects in space-constrained installations, from retail accent lighting to hospitality environments.
Key Features
- Stabilized current design
- Thermal conductive adhesive tape on back side for better heat conduction
- Thick and durable copper PCB
- Dimmable
- 24 VDC voltage input
- Reverse voltage protection
- 3 Step MacAdam LEDs
- High quality components, NICHIA LED chips

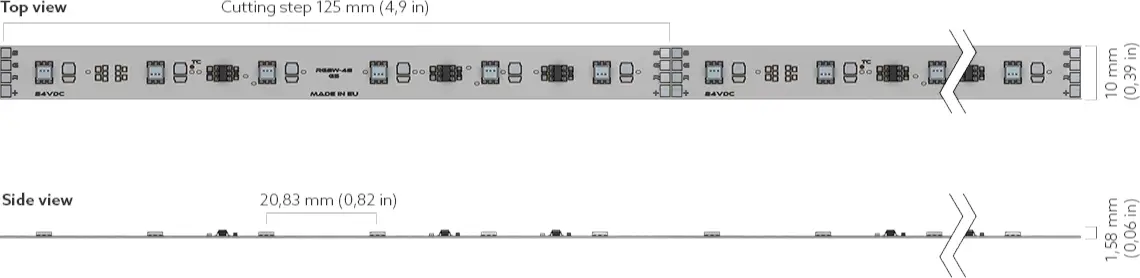

- Can be cut in 125 mm length segments
- Stable color mixing
- Compact 10 mm width
- Compact 1.62 mm height
Perfect For These Applications
Discover the versatility of RGB LED tape for creating stunning colour-changing lighting installations
Entertainment Venues
Create dynamic lighting scenes in bars, clubs, and entertainment spaces. Perfect for mood lighting and synchronized effects.
Commercial Displays
Highlight retail displays and architectural features with vibrant, attention-grabbing colour effects.
Residential Ambience
Transform living spaces with customizable colour scenes. Ideal for home theaters, gaming rooms, and accent lighting.
Architectural Accents
Illuminate building facades, columns, and architectural details with programmable colour-changing effects.
Event Lighting
Perfect for temporary installations, events, and exhibitions requiring flexible, impactful lighting solutions.
Hospitality Spaces
Enhance guest experiences in hotels and restaurants with customizable ambience and brand-matched colour schemes.
Installation Guide
| Step | Instructions |
|---|---|
| 1. Surface Preparation | Clean and dry the mounting surface thoroughly. Remove dust, grease, and debris for optimal adhesion. |
| 2. Planning | Measure and plan your layout. Mark cut points and ensure they align with designated cutting marks on the tape. |
| 3. Cutting | Cut only at designated points marked on the tape. Use sharp scissors for clean cuts. |
| 4. Wiring | Connect to RGB controller respecting polarity: R (Red), G (Green), B (Blue), and V+ (24V positive). |
| 5. Testing | Test all connections before final installation. Verify all colours function correctly. |
| 6. Mounting | Peel backing and apply to prepared surface. Press firmly along entire length for 10-15 seconds. |
| 7. Power Up | Connect to 24V DC power supply through RGB controller. Total power should not exceed supply capacity. |
