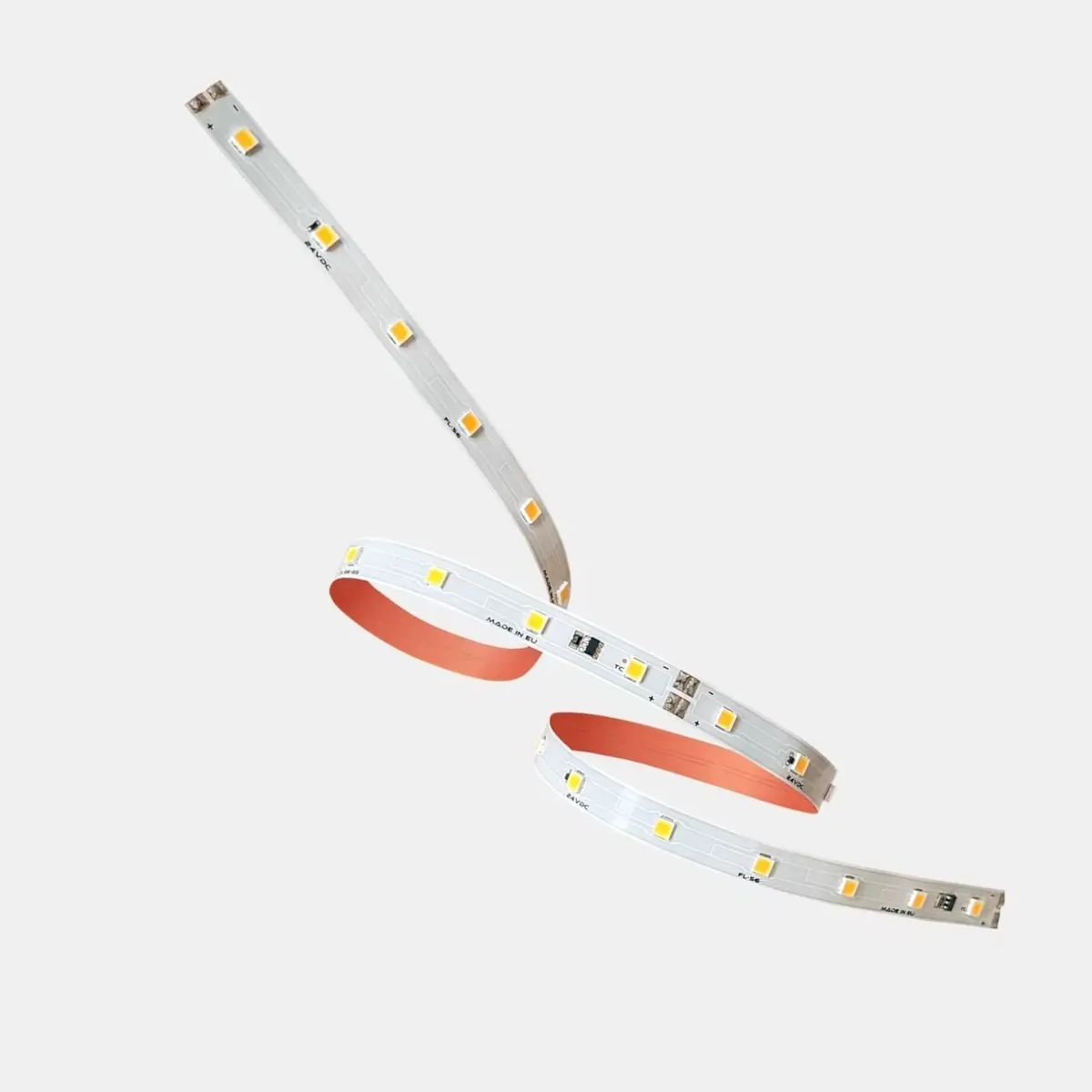

Architape Pro 50
FL56/Nx G5 14W P27Architape Pro 50 LED strips are perfect for installations requiring low wattage or a narrow width. Packing 96 high-quality Nichia LEDs per meter into an 8mm width, these LED light strips offer consistent performance with excellent CRI scores and long-term light output. The versatile 5m maximum run combined with 62.5mm cutting step allows for flexible installations in tight spaces while maintaining professional light quality through robust copper PCB construction and current stabilization system.
Key Features
- Stabilized current design
- Thermal conductive adhesive tape on back side for better heat conduction
- Thick and durable copper PCB
- Dimmable
- 24 VDC voltage input
- Reverse voltage protection
- 3 Step MacAdam LEDs
- High quality components, NICHIA LED chips

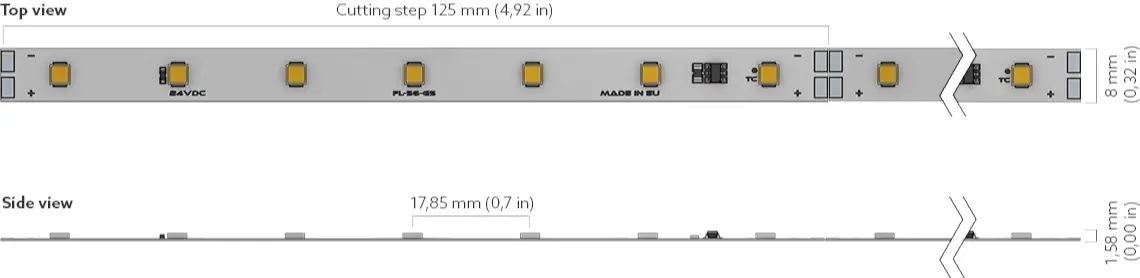

- Can be cut in 125 mm length segments
- Stable color mixing
- Compact 8 mm width
- Compact 1.62 mm height
Perfect For These Applications
Discover the versatility of LED tape for creating professional lighting installations
Office Lighting
Professional lighting for workspaces requiring consistent, high-quality illumination for productivity and comfort.
Retail Displays
High CRI white light for accurate colour rendering in shops and showrooms where product presentation is critical.
Cove Lighting
Elegant indirect lighting for architectural details, creating sophisticated ambience in residential and commercial spaces.
Cabinet & Display Lighting
Perfect for under-cabinet, shelving, and showcase illumination in kitchens, retail, and residential applications.
Hospitality Ambience
Create welcoming atmospheres in hotels, restaurants, and lounges with warm or neutral white lighting.
Architectural Detailing
Highlight building features, columns, and trim with consistent, professional white light for maximum visual impact.
Installation Guide
| Step | Instructions |
|---|---|
| 1. Surface Preparation | Clean and dry the mounting surface thoroughly. Remove dust, grease, and debris for optimal adhesion. |
| 2. Planning | Measure and plan your layout. Mark cut points and ensure they align with designated cutting marks on the tape. |
| 3. Cutting | Cut only at designated points marked on the tape. Use sharp scissors for clean cuts. |
| 4. Wiring | Connect to RGB controller respecting polarity: R (Red), G (Green), B (Blue), and V+ (24V positive). |
| 5. Testing | Test all connections before final installation. Verify all colours function correctly. |
| 6. Mounting | Peel backing and apply to prepared surface. Press firmly along entire length for 10-15 seconds. |
| 7. Power Up | Connect to 24V DC power supply through RGB controller. Total power should not exceed supply capacity. |
Compatible Profiles
A002M
Low-profile surface mount fixture designed for long-term indoor professional lighting applications.
A003
Recess mount fixture for direct lighting applications designed for long-term indoor use.
A005M
Small surface-mount lighting fixture ideal for task, accent, or decorative lighting applications.
A006
Cylindrical pendant fixture with 180-degree beam angle creating a homogenous light effect.
A008
Small recess-mount fixture perfect for homogenous decorative linear lighting applications.
A011
Corner-mounted fixture ideal for task and accent lighting with high power LED support.
A015
Flanged recess-mount fixture with clean, seamless aesthetic for professional applications.
A016
Surface-mount fixture for direct lighting available with three different cover shapes.
A017M
Surface-mount fixture for direct lighting applications where homogenous lighting is required.
A018N
Compact surface-mount fixture designed for applications requiring homogenous light distribution.
A019
Recess-mount fixture for homogenous direct lighting with clean and seamless aesthetic.
A025
Round suspended fixture perfect for decorative, task and accent lighting applications.
A030
Slim recess mount fixture designed specifically for decorative lighting applications.
A032
Corner-mount fixture supporting high power LED strips for under-cabinet and task lighting.
A042
Sleek corner-mount fixture ideal for under-cabinet, task, and accent lighting applications.
AP-02
Lightweight fixture designed for long-term indoor professional lighting applications.
AP-03
Surface-mounted fixture with wide range of lenses and versatile mounting brackets.
AP-04
Lightweight fixture designed for long-term indoor professional lighting applications.
AP-06
Lightweight fixture designed for long-term indoor professional lighting applications.
AR-FLEX
Bendable fixture ideal for bespoke lighting projects with curved walls and surfaces.
