Architape Pro 70 TW Outdoor LED Tape
Architape Pro TW IP LED strips are the ideal choice for long-term, professional use in person-centred lighting. These waterproof tapes are suitable for outdoor decorative, cove lighting, edge lighting and more. They offer an extra-long operating life and stable performance, through a combination of high-end NiCHIA LEDs and a current stabilization system.
The housing is dust and dirt resistant, is easy to clean and is fully UV resistant, as well as salt and solvent proof. Their small size and bend radius combined with a ruggedized design make them a reliable and versatile long-term choice for creative outdoor lighting.
Available Colour Temperatures
Performance at a Glance
High-fidelity metrics for professional specification.
Precision Engineering
Advanced Current Regulation
Our Architape Pro 70 TW Outdoor LED Tape features integrated current stabilisation, ensuring matching brightness and reliability across the entire run.
Thermal Excellence
Thick double-sided copper PCB provides superior heat management, extending LED life and maintaining colour stability.

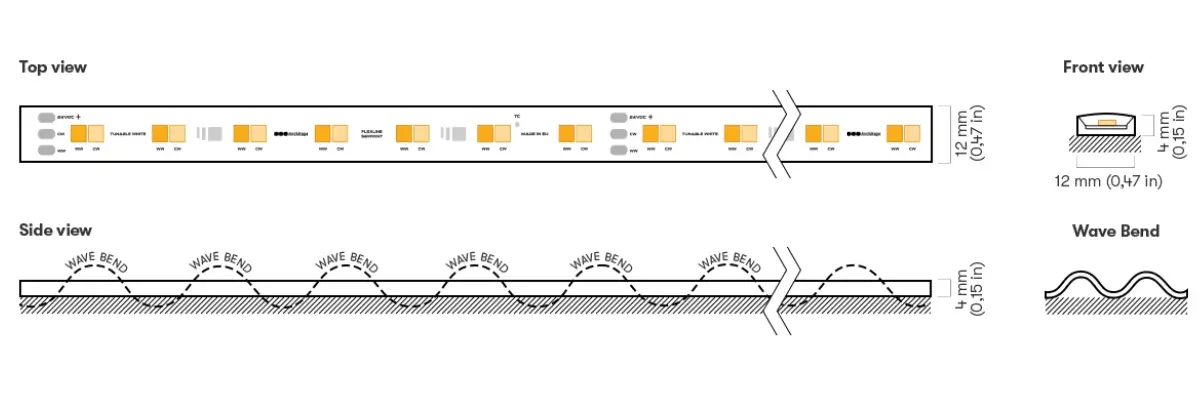

Technical Overview
Full Technical Specification
Comprehensive performance data for Architape Pro 70 TW Outdoor LED Tape.
| Feature | Specification |
|---|---|
| Wattage Range | 9.6 W/m |
| Luminous Flux | 665 - 1243 lm/m |
| Efficacy | 69 - 130 lm/W |
| Voltage | 24 VDC |
| Colour Fidelity | CRI 80+, CRI 90+, CRI 95+ |
| Max Run Length | 9 m |
| Cutting Step | 100 mm |
| IP Rating | Outdoor IP67 |
| Warranty | 5 Years Professional Warranty |
Start Your Specification
Access the full range of photometrics, BIM files, and data sheets in our configuration tool.
