Flexible LED Tape

Architape Pro 20

Architape Pro 20 is engineered for demanding architectural and interior applications, delivering precise, professional illumination for coves, furniture integration, indirect lighting, and decorative accents. Its compact 8mm width allows seamless installation in tight profiles and bespoke luminaires, making it a versatile choice across residential, commercial, and hospitality environments. With 28 high quality Nichia LEDs per metre, the strip provides stable, efficient, and consistent light output, ensuring excellent colour quality and accuracy. A wide white range from 1800K to 6500K supports everything from warm ambience to crisp functional lighting, enabling designers to achieve exactly the tone and atmosphere they need. Built for long-term reliability, Architape Pro 20 features a regulated current design and a thick copper PCB to maintain uniform output and extend operational lifespan. Even in continuous use installations, it delivers dependable performance, making it ideal for professional projects where durability is essential.

Architape Pro 20

Technical Performance

Precision lighting data for high-end flexible installations.

Power Consumption
1.2 - 9.1 W/m
LED Density
28 LEDs/m
Luminous Flux
31 - 1382 lm/m
Max Efficacy
25 - 160 lm/W
Input Voltage
24V DC
Color Fidelity
Optisolis - CRI95
Max Run Length
8.5 - 31m
Cutting Step
250 mm

Flexible Engineering

Advanced Current Regulation

Our Architape Pro 20 features integrated current stabilization, ensuring matching brightness and reliability across the entire run.

Thermal Excellence

Thick double-sided copper PCB provides superior heat management, extending LED life and maintaining color stability.

Professional Grade Binning

Consistent MacAdam 3-step color binning ensures that your project looks uniform from the first meter to the last.

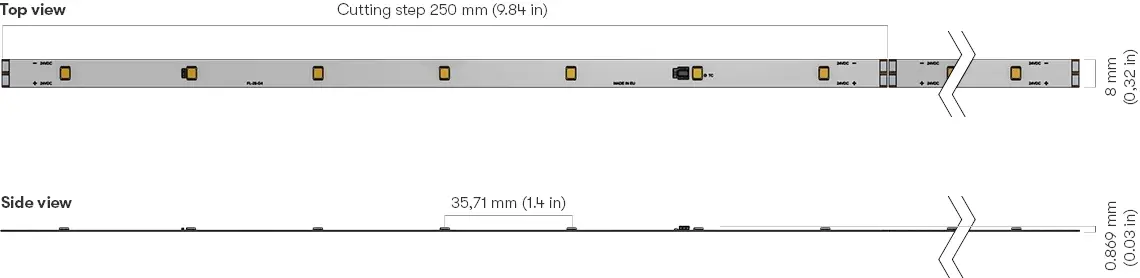

Technical Drawing
Architape Pro 20 Dimensions

Profile: 8mm (W) x 0.87mm (H)

Series Specifications

Comprehensive technical data for Architape Pro 20.

Feature Specification
Wattage Range1.2 - 9.1 W/m
LED Density28 LEDs/m
Luminous Flux31 - 1382 lm/m
Efficacy25 - 160 lm/W
Voltage24V DC
CCT OptionsRed, Blue, Green, 1800K, 2000K, 2200K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI OptionsOptisolis - CRI95
Max Run Length8.5 - 31m
Cutting Step250 mm
PCB Widthm - 8mm
IP RatingIP20 (Standard)
LED LifetimeL90B10 > 60.000h
Operating Temp-25°C...+50°C ( -13°F...122°F )
Warranty5 Years Professional Warranty
Photometric Data

Photometric Fidelity

The Architape Pro 20 is measured in-house to ensure absolute accuracy in IES and LDT data, supporting your lighting design simulations.

  • Verified IES & LDT files
  • Regular batch photometric testing
  • Custom spectrum reporting available
Download Specifications

Integrate High-Performance Light

Experience the difference of Architape Pro 20. From architectural coves to high-end furniture integration, our tape delivers superior light quality.
