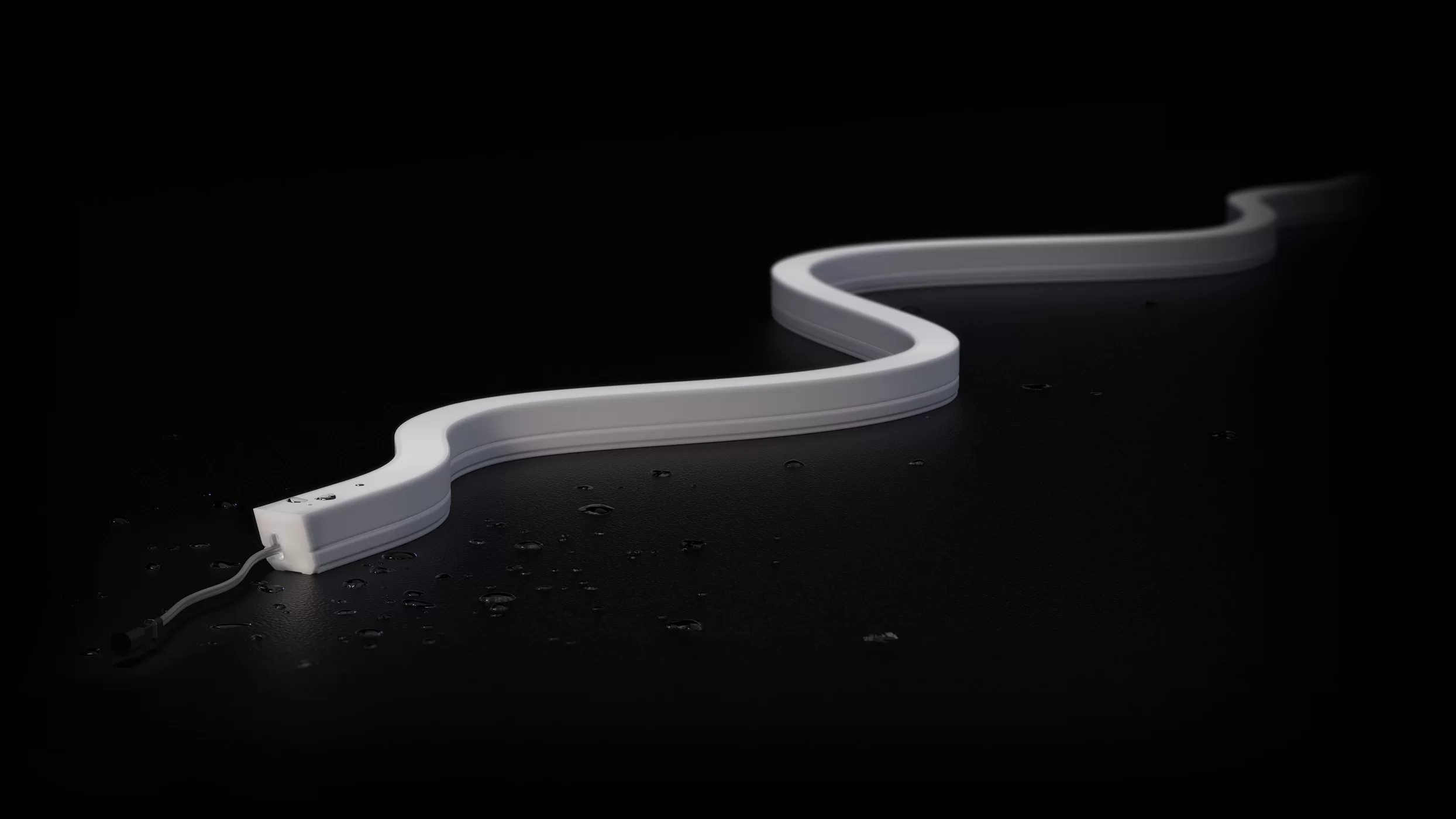

Architape Opaline Flex Side Bend Single Colour Outdoor LED Tape
Opaline Flex SB is a flexible side bend white LED line designed for outdoor lighting projects that need a creative and flexible lighting solution. With a flexible polyurethane housing, the Opaline Flex SB can easily adjust to the geometry of building facades and structures while delivering a uniform light effect.
Fully encapsulated and protected from the elements, these high-quality LED lines are built for long-term professional applications.
Available Colour Temperatures
Performance at a Glance
High-fidelity metrics for professional specification.
Precision Engineering
Advanced Current Regulation
Our Architape Opaline Flex Side Bend Single Colour Outdoor LED Tape features integrated current stabilisation, ensuring matching brightness and reliability across the entire run.
Thermal Excellence
Thick double-sided copper PCB provides superior heat management, extending LED life and maintaining colour stability.

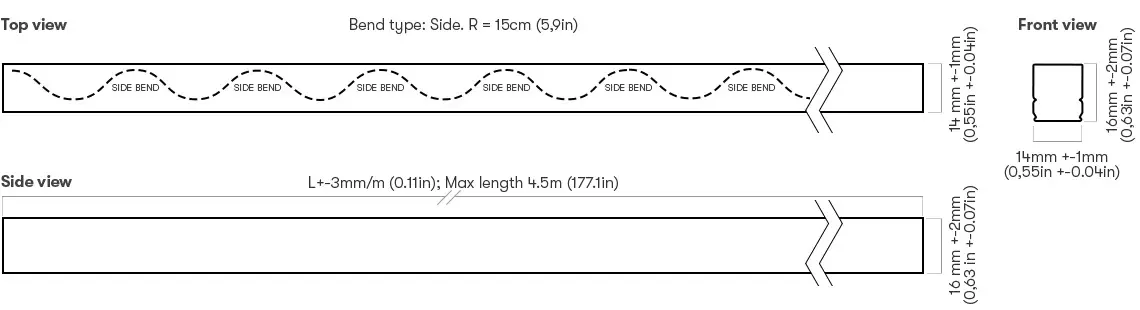

Technical Overview
Full Technical Specification
Comprehensive performance data for Architape Opaline Flex Side Bend Single Colour Outdoor LED Tape.
| Feature | Specification |
|---|---|
| Wattage Range | 4.8 - 14.4 W/m |
| Luminous Flux | 233 - 1274 lm/m |
| Voltage | 24 - 48 VDC |
| Colour Fidelity | CRI 80+, CRI 90+ |
| Max Run Length | 7 - 28.5 m |
| Cutting Step | 62.5 - 125 mm |
| IP Rating | Outdoor IP67 |
| Warranty | 5 Years Professional Warranty |
Start Your Specification
Access the full range of photometrics, BIM files, and data sheets in our configuration tool.
