Outdoor Luminaire
Architape Opaline Extreme
Opaline Extreme is a specialized surface mount design intended for use in the harshest outdoor environments. Built IK10 strong and sealed to IP67, it delivers highly efficient and long-lasting light output.
Available Colour Temperatures
Red
RGB_
Blue
Green
1800K
2000K
2200K
2500K
2700K
2700-6500K
3000K
3500K
4000K
5000K
5700K
6500K
CCT options range from Red to 6500K
Performance at a Glance
High-fidelity metrics for professional specification.
Power Options
1.2 - 19.2 W
Luminous Flux
24 - 2379 lm
Max Efficacy
20 - 127 lm/W
IP Rating
Outdoor IP67
Colour Fidelity
CRI80, CRI90, Colour, RGB_

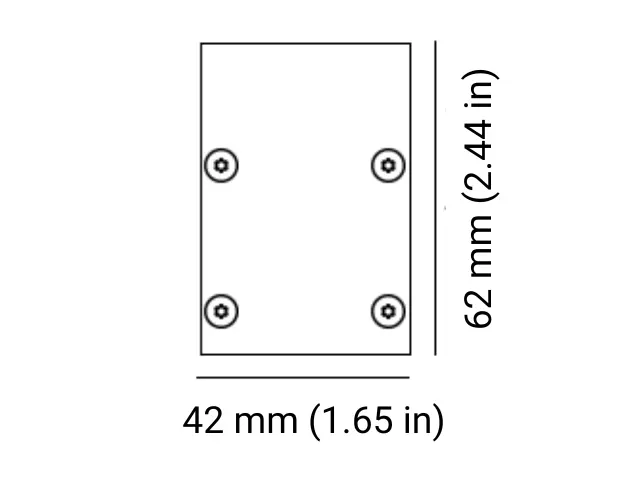

Dimensions
42x62 mm
Cutting Step
62.5 - 250 mm
Precision Engineering
Precision Form Factor
The Architape Opaline Extreme series is engineered for seamless architectural integration, providing superior heat dissipation for high-power LED engines.
Optimised Output
Advanced cover compatibility ensuring a perfect balance between raw output and smooth, dot-free illumination regardless of environment.
Technical Overview
Full Technical Specification
Comprehensive performance data for Architape Opaline Extreme.
| Feature | Specification |
|---|---|
| Wattage Range | 1.2 - 19.2 W |
| Luminous Flux | 24 - 2379 lm |
| Efficacy | 20 - 127 lm/W |
| IP Rating | Outdoor IP67 |
| Colour Fidelity | CRI80, CRI90, Colour, RGB_ |
| Dimensions | 42x62 mm |
| Warranty | 5 Years Professional Warranty |
Start Your Specification
Access the full range of photometrics, BIM files, and data sheets in our configuration tool.
