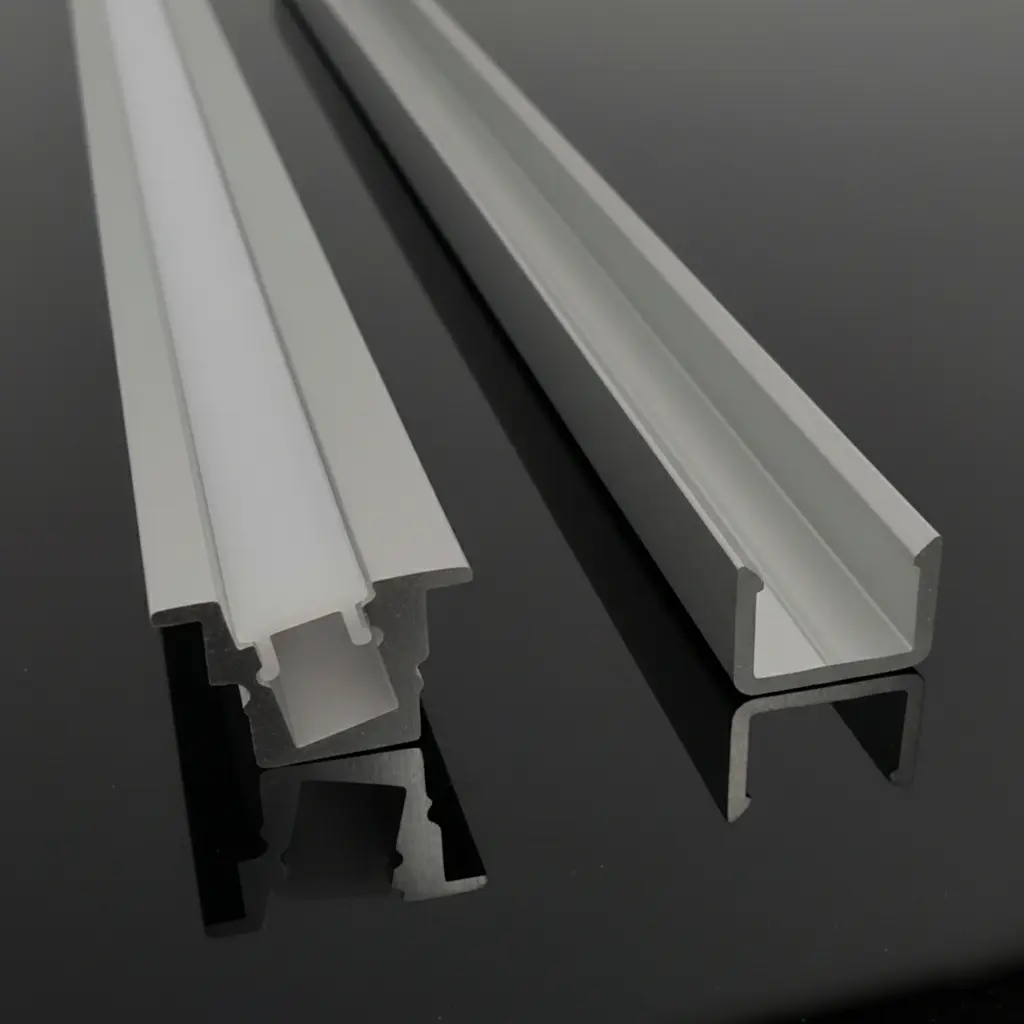

JP-15 Indoor Luminaire
Create a truly bespoke and highly professional lighting finish with our premium Joinery Recessed LED Profile. Designed for discrete integration into custom cabinetry, shelving, furniture, and wall panelling, this aluminium profile allows you to recess your LED strip lighting completely, achieving a flawless, flush, and streamlined aesthetic. Ideal for high-end residential and commercial projects, it is perfect for under-cabinet task lighting in kitchens, illuminating shelves and display units, adding ambient or accent lighting to wardrobes and closets and creating stunning lighting in custom wall units.
Performance at a Glance
High-fidelity metrics for professional specification.
Precision Engineering
Precision Form Factor
The JP-15 series is engineered for seamless architectural integration, providing superior heat dissipation for high-power LED engines.
Reliability & Longevity
Designed for professional environments, providing a secure housing that protects the internal light engine from dust and mechanical impact.
Optimized Optics
Advanced cover compatibility ensuring a perfect balance between raw output and smooth, dot-free illumination.
Technical Drawing
Configuration: 16.5mm (W) x 10.4mm (H)
Full Technical Specification
Comprehensive performance data for the JP-15 series.
| Key Feature | Value / Specification |
|---|---|
| Wattage Range | 4.8 - 14.4 W/m |
| Luminous Flux | 125 - 2287 lm/m |
| Efficacy | 26 - 160 lm/W |
| Voltage | 24V DC |
| CCT Options | Green, Blue, Red, 1800K, 2000K, 2200K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K |
| CRI Options | Colour - CRI95 |
| Max Run Length | - |
| Cutting Step | 40 - 62.5 mm |
| Dimensions | 16.5mm (W) x 10.4mm (H) |
| IP Rating | - |
| LED Lifetime | - |
| Operating Temp | -25°C...+50°C ( -13°F...122°F ) °C |
| Mounting | Integrated / Surface Mount |
| Material | Anodized Aluminium |
| Warranty | 5 Years Professional Warranty |
Lighting Fidelity
The JP-15 is compatible with our full range of professional LED tapes, ensuring consistent color reproduction and perfectly controlled beam angles.
- IES & LDT files available for all configurations
- Consistent SDCM (<3 step) binning
- Specialized spectra available (Optisolis, RGBW)
Start Your Specification
Our JP-15 series is ready for your next award-winning project. Explore the full range in our configuration tool or speak with a specialist today.
