Architape H-Line S

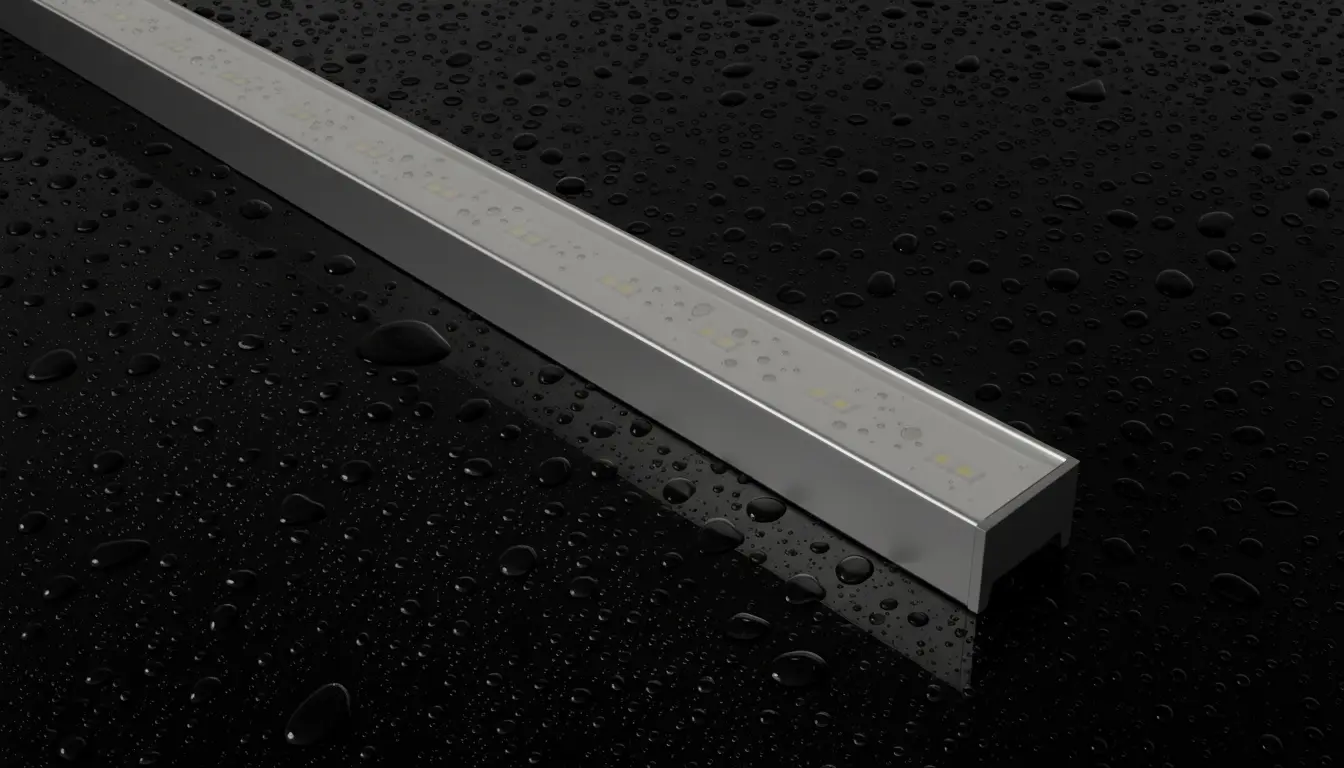

Opaline H-Line S is a modular linear LED light with a clear cover designed for long-term outdoor professional lighting applications. These waterproof modular LED lights are fitted with the highest quality NICHIA LEDs, with a wide range of Colour Rendering Index (CRI) and Colour Temperature (CCT) options from which to choose.
NICHIA LEDs guarantee the highest quality lighting and super-high efficacy. Each module has integrated connectors for easy and reliable connection to other modules. The connectors are hidden inside the modules allowing the segments to be connected in a seamless line.
Available Colour Temperatures
Performance at a Glance
High-fidelity metrics for professional specification.
Precision Engineering
Precision Form Factor
The Architape H-Line S series is engineered for seamless architectural integration, providing superior heat dissipation for high-power LED engines.
Optimised Output
Advanced cover compatibility ensuring a perfect balance between raw output and smooth, dot-free illumination regardless of environment.
Technical Overview
Full Technical Specification
Comprehensive performance data for Architape H-Line S.
| Feature | Specification |
|---|---|
| Wattage Range | 1.2 - 19.2 W |
| Luminous Flux | 16 - 2306 lm |
| Efficacy | 13 - 122 lm/W |
| IP Rating | Outdoor IP67 |
| Colour Fidelity | CRI80, CRI90, Colour, RGB_ |
| Dimensions | 16x16 mm |
| Warranty | 5 Years Professional Warranty |
Start Your Specification
Access the full range of photometrics, BIM files, and data sheets in our configuration tool.
